Transcript

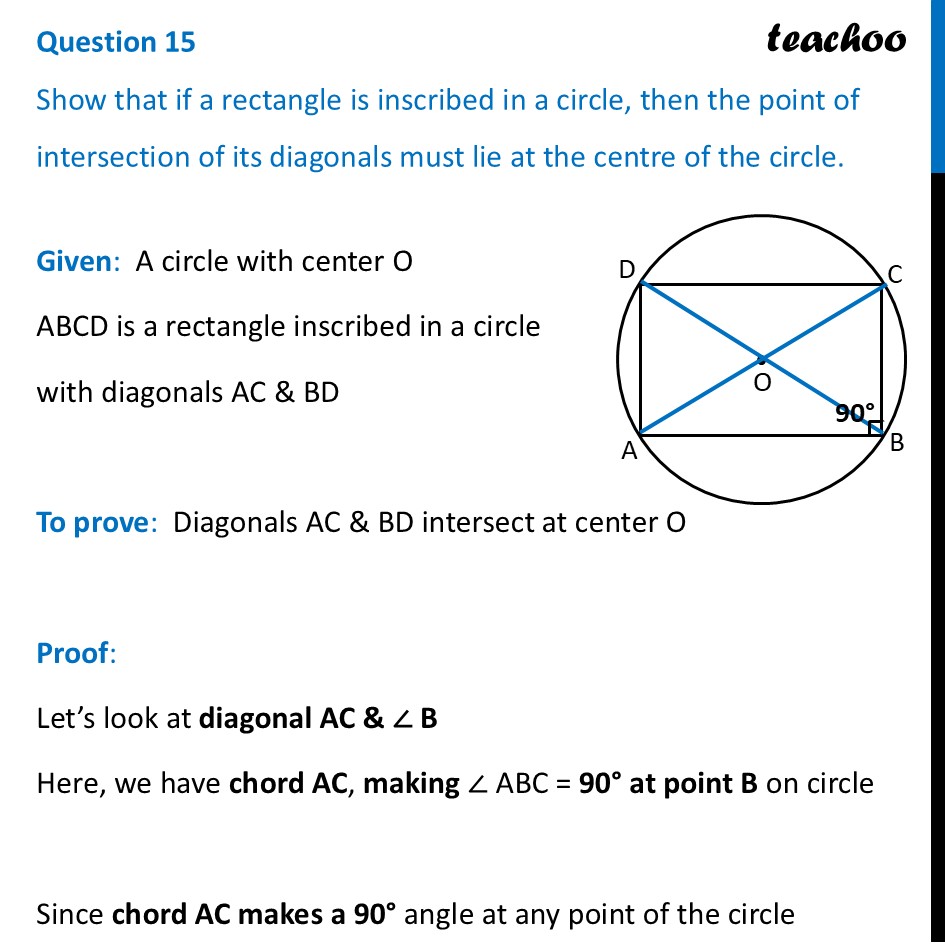

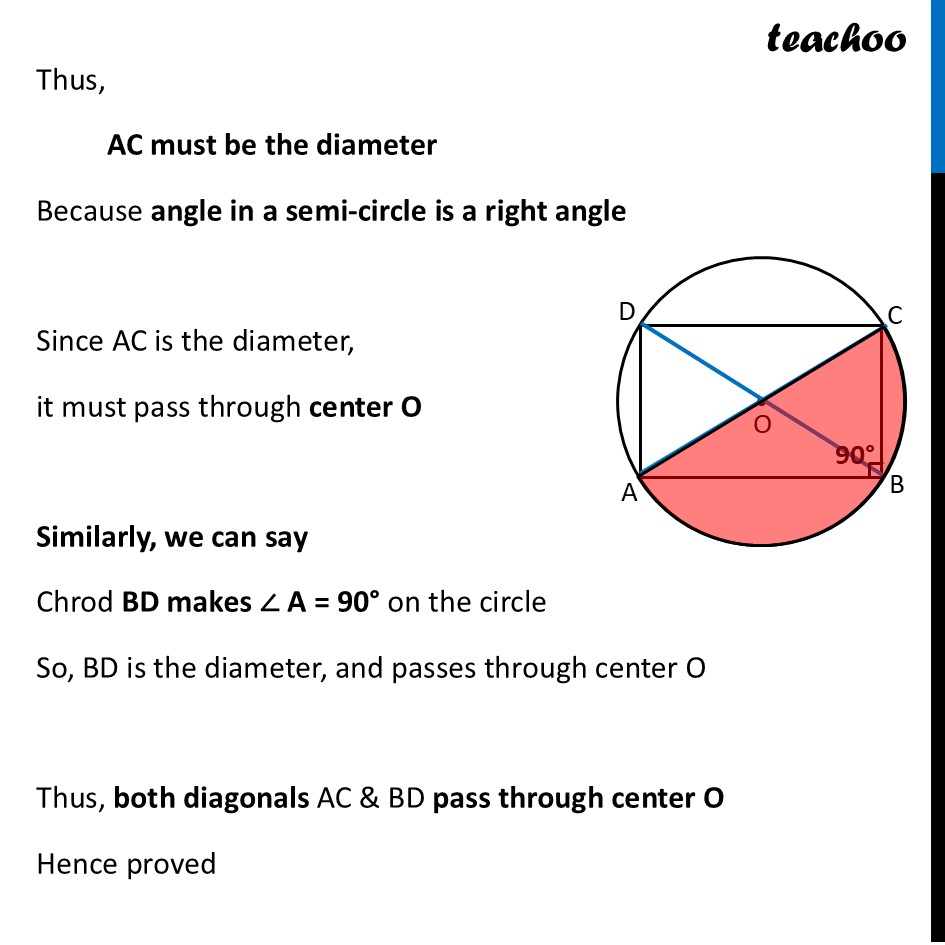

Question 15 Show that if a rectangle is inscribed in a circle, then the point of intersection of its diagonals must lie at the centre of the circle. Given: A circle with center O ABCD is a rectangle inscribed in a circle with diagonals AC & BD To prove: Diagonals AC & BD intersect at center O Proof: Let’s look at diagonal AC & ∠ B Here, we have chord AC, making ∠ ABC = 90° at point B on circle Since chord AC makes a 90° angle at any point of the circle Thus, AC must be the diameter Because angle in a semi-circle is a right angle Since AC is the diameter, it must pass through center O Similarly, we can say Chrod BD makes ∠ A = 90° on the circle So, BD is the diameter, and passes through center O Thus, both diagonals AC & BD pass through center O Hence proved
