Transcript

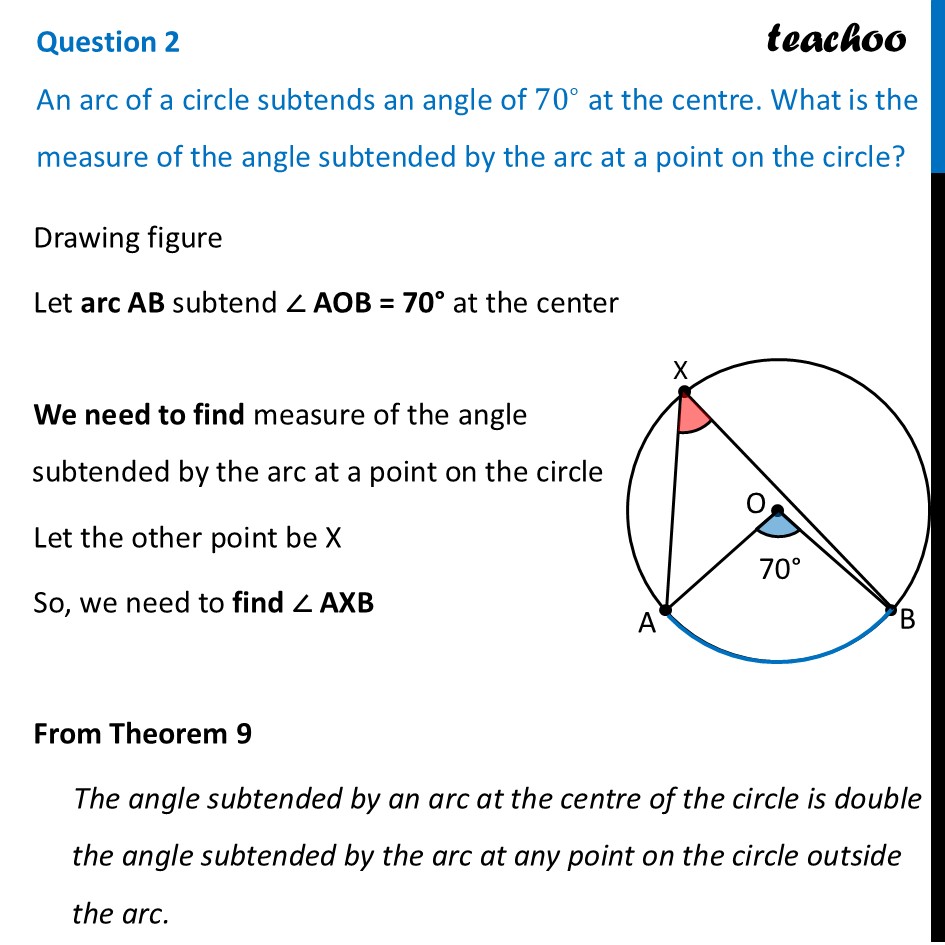

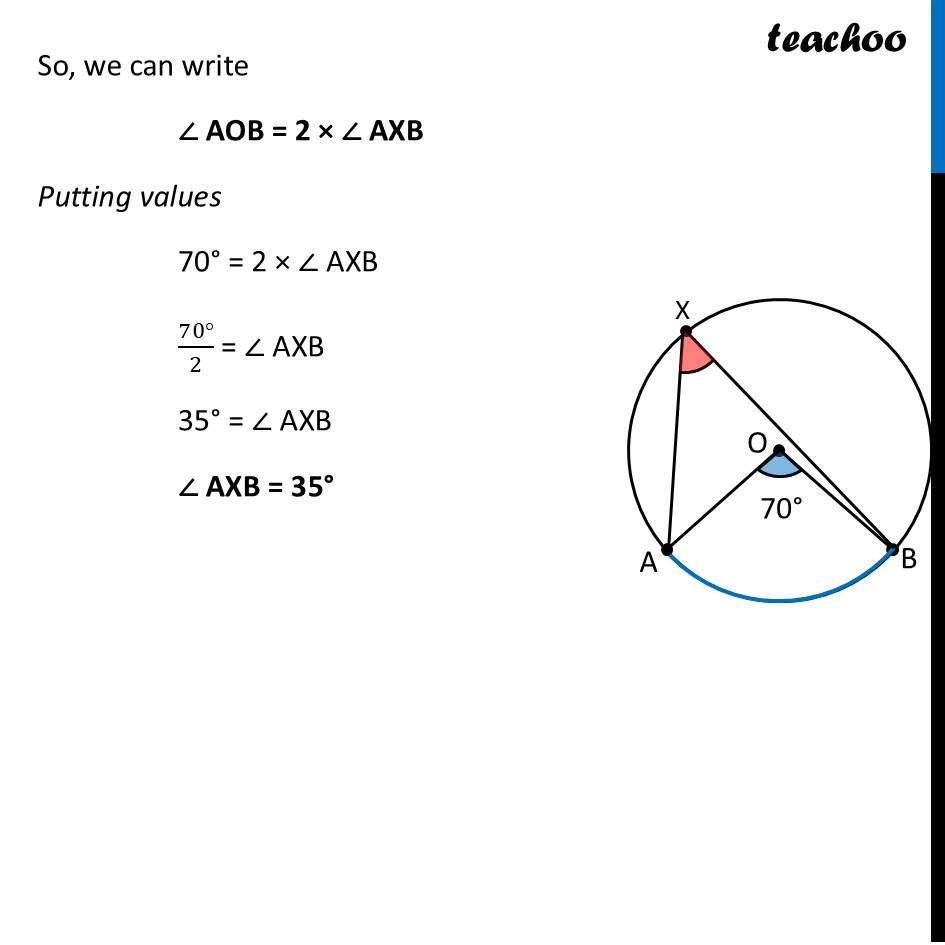

Question 2 An arc of a circle subtends an angle of 70^∘ at the centre. What is the measure of the angle subtended by the arc at a point on the circle? Drawing figure Let arc AB subtend ∠ AOB = 70° at the center We need to find measure of the angle subtended by the arc at a point on the circle Let the other point be X So, we need to find ∠ AXB From Theorem 9 The angle subtended by an arc at the centre of the circle is double the angle subtended by the arc at any point on the circle outside the arc. So, we can write ∠ AOB = 2 × ∠ AXB Putting values 70° = 2 × ∠ AXB (70°)/2 = ∠ AXB 35° = ∠ AXB ∠ AXB = 35°
