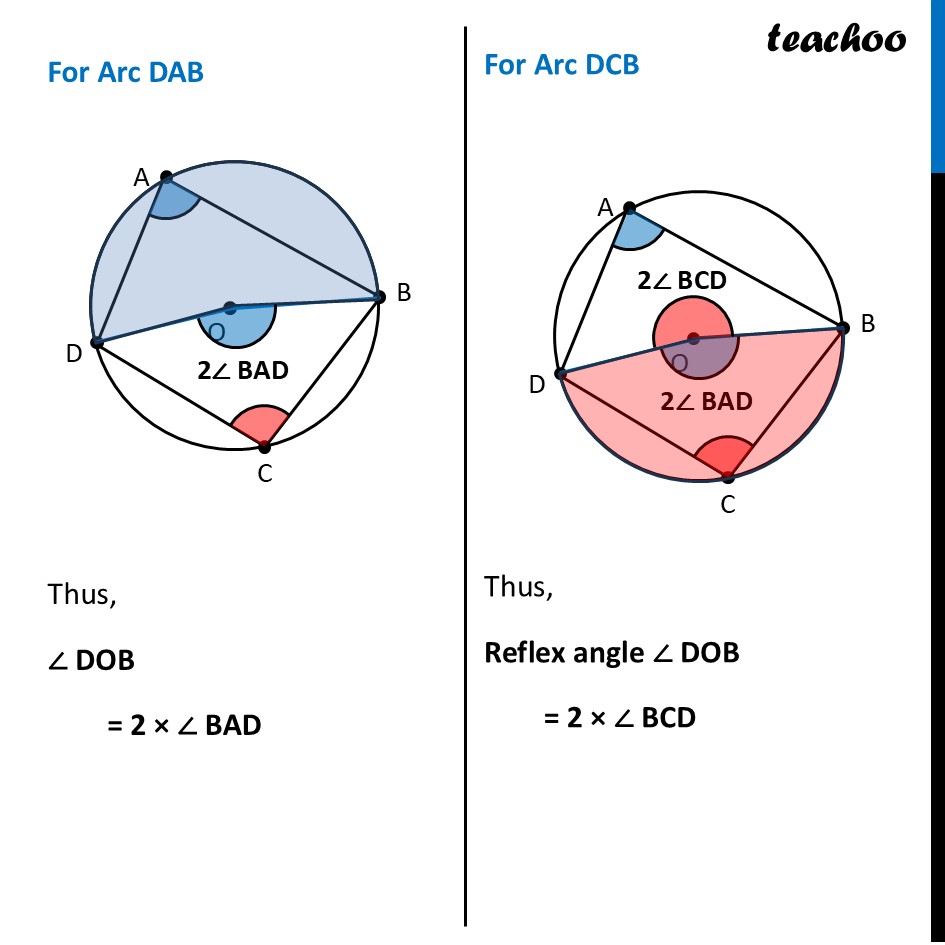

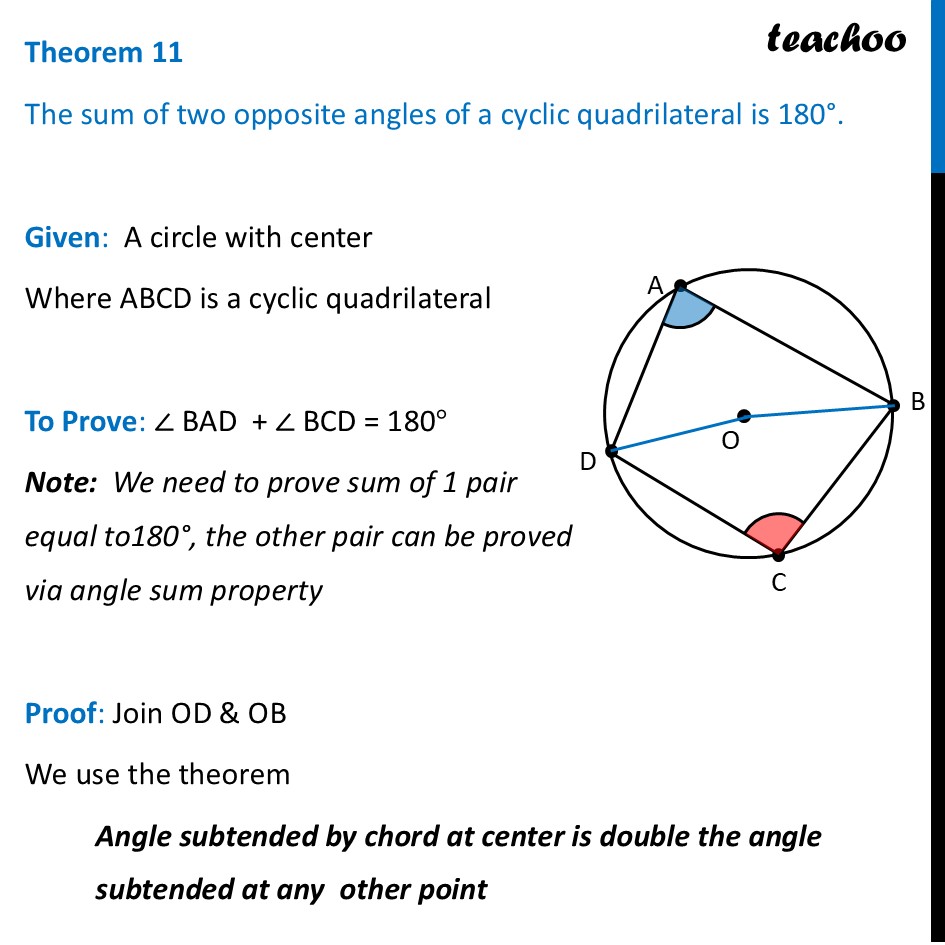

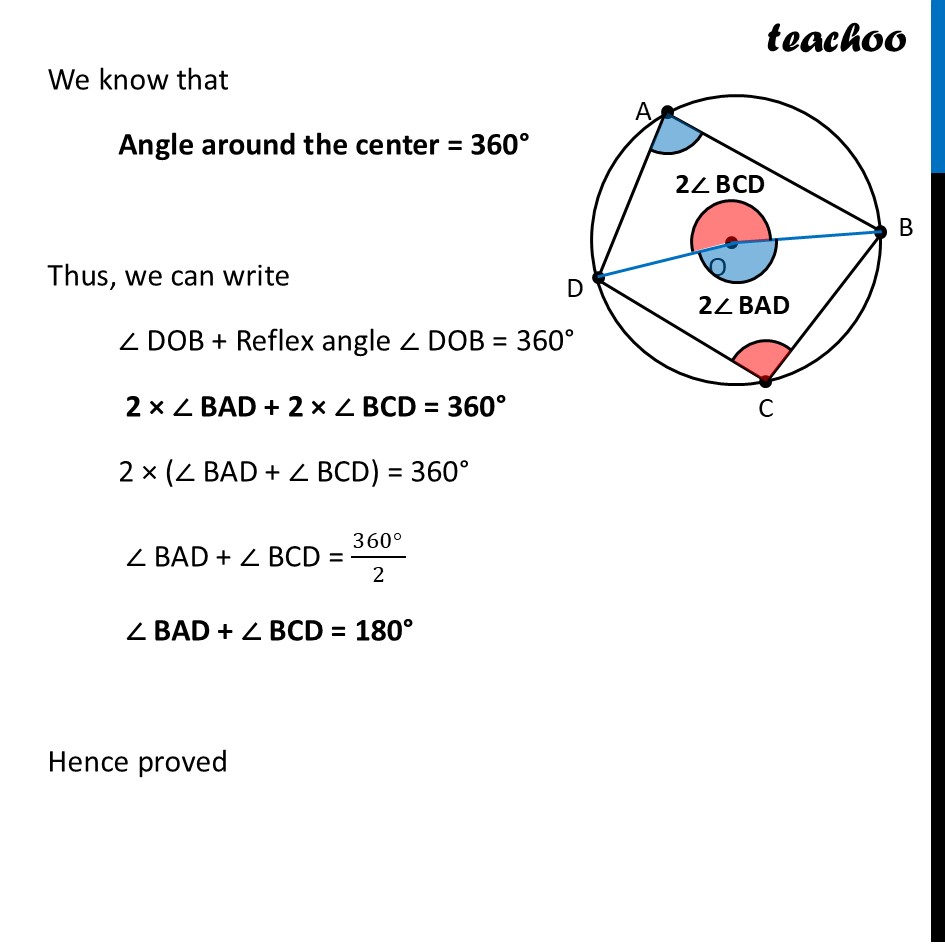

Theorem 11 The sum of two opposite angles of a cyclic quadrilateral is 180°. Given: A circle with center Where ABCD is a cyclic quadrilateral To Prove: ∠ BAD + ∠ BCD = 180° Note: We need to prove sum of 1 pair equal to180°, the other pair can be proved via angle sum property Proof: Join OD & OB We use the theorem Angle subtended by chord at center is double the angle subtended at any other point For Arc DAB Thus, ∠ DOB = 2 × ∠ BAD For Arc DCB Thus, Reflex angle ∠ DOB = 2 × ∠ BCD We know that Angle around the center = 360° Thus, we can write ∠ DOB + Reflex angle ∠ DOB = 360° 2 × ∠ BAD + 2 × ∠ BCD = 360° 2 × (∠ BAD + ∠ BCD) = 360° ∠ BAD + ∠ BCD = (360° )/2 ∠ BAD + ∠ BCD = 180° Hence proved
