Transcript

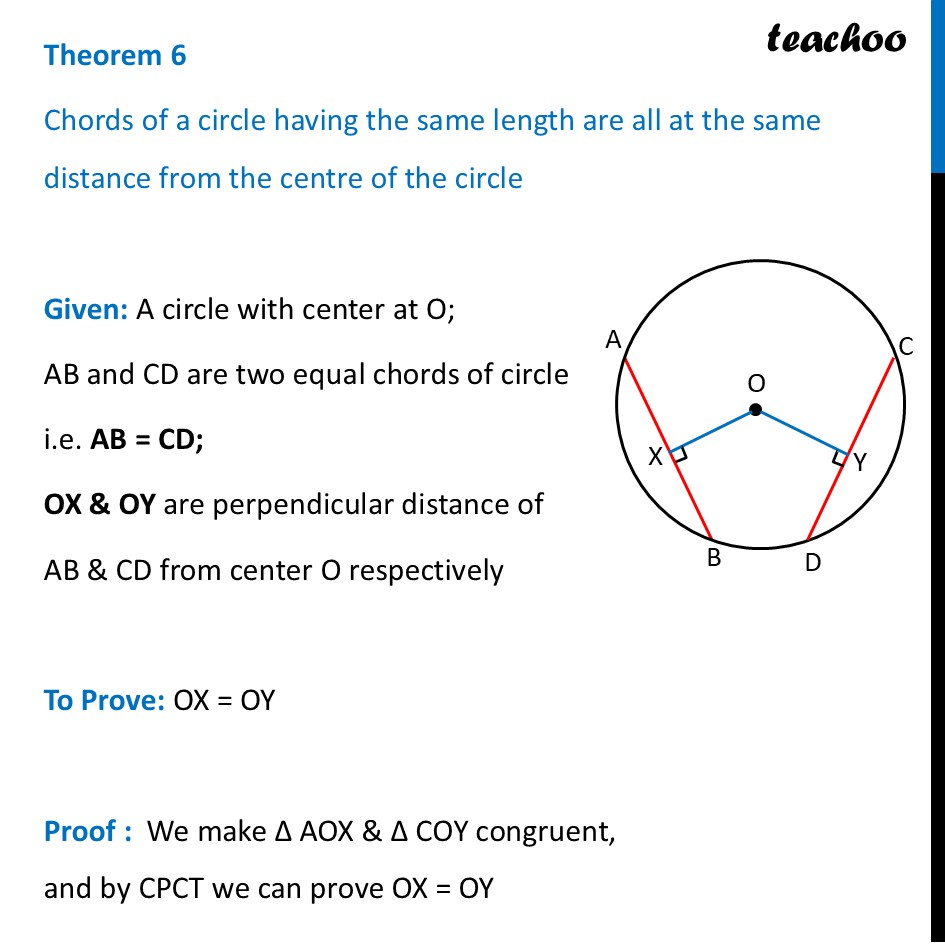

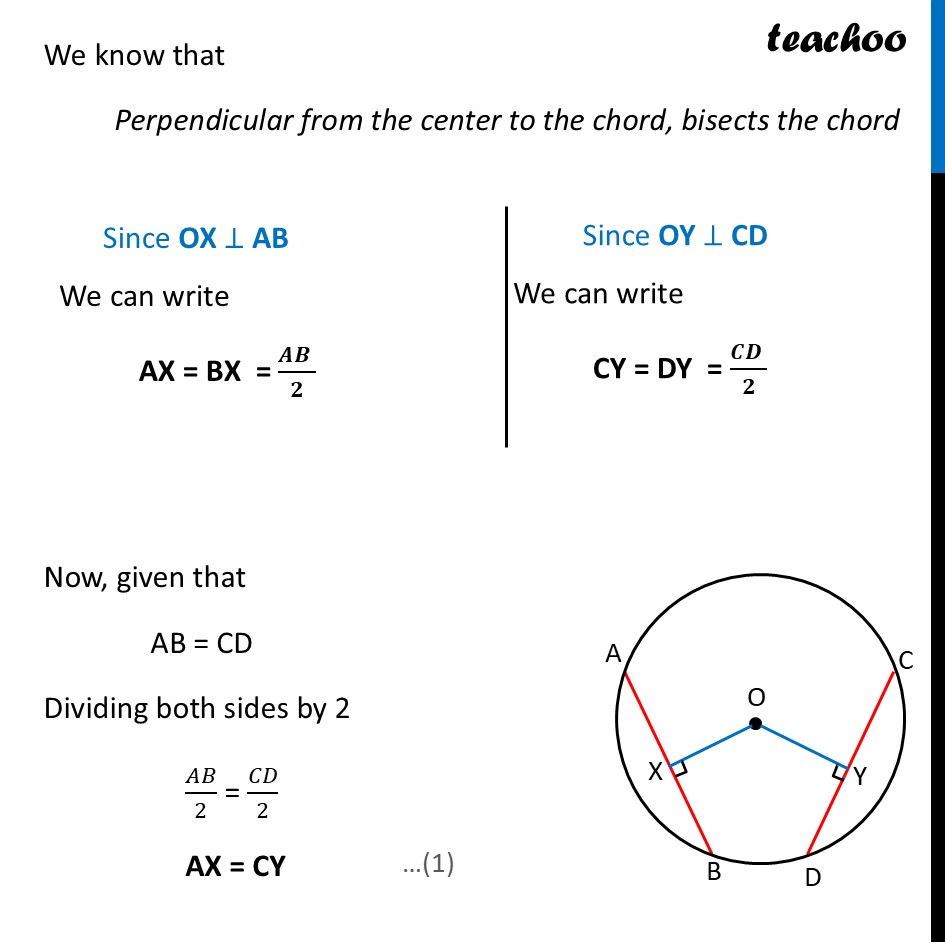

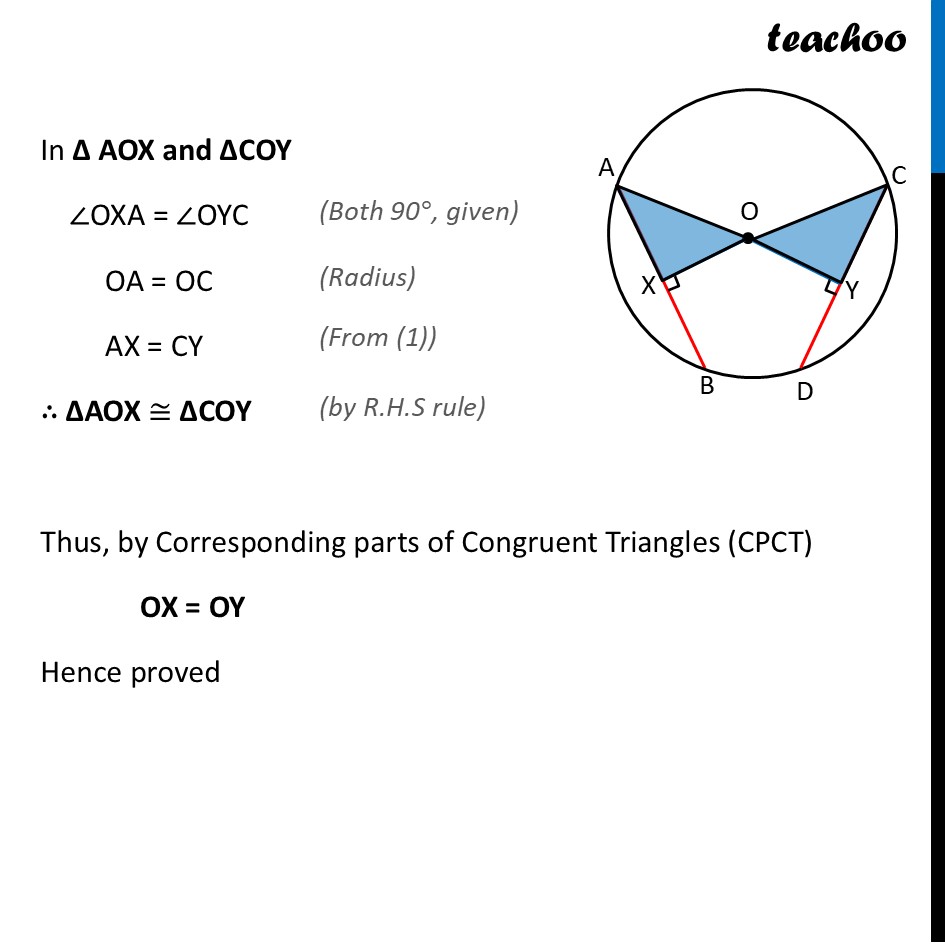

Theorem 6 Chords of a circle having the same length are all at the same distance from the centre of the circle Given: A circle with center at O; AB and CD are two equal chords of circle i.e. AB = CD; OX & OY are perpendicular distance of AB & CD from center O respectively To Prove: OX = OY Proof : We make ∆ AOX & ∆ COY congruent, and by CPCT we can prove OX = OY We know that Perpendicular from the center to the chord, bisects the chord Now, given that AB = CD Dividing both sides by 2 𝐴𝐵/2 = 𝐶𝐷/2 AX = CY Since OX ⊥ AB We can write AX = BX = (𝑨𝑩 )/𝟐 Since OY ⊥ CD We can write CY = DY = (𝑪𝑫 )/𝟐 In ∆ AOX and ∆COY ∠OXA = ∠OYC OA = OC AX = CY ∴ ∆AOX ≅ ∆COY Thus, by Corresponding parts of Congruent Triangles (CPCT) OX = OY Hence proved (Both 90°, given) (Radius) (From (1)) (by R.H.S rule)
