Last updated at Dec. 24, 2019 by Teachoo

Transcript

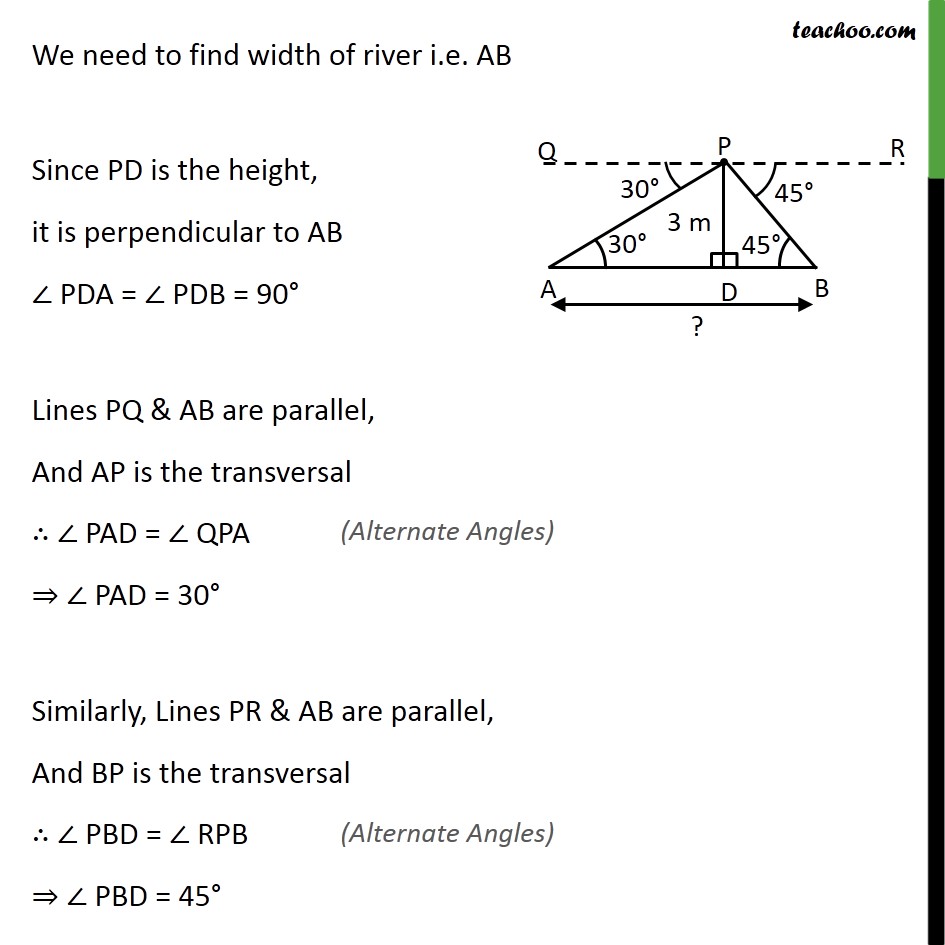

Example 7 From a point on a bridge across a river, the angles of depression of the banks on opposite sides of the river are 30 and 45 , respectively. If the bridge is at a height of 3 m from the banks, find the width of the river. Let the width of the river = AB And the bridge is at a height of 3m from the banks, So, DP = 3 metre Angle of depression of the banks on opposite sides of the river are 30 and 45 respectively. So, QPA = 30 and RPB = 45 We need to find width of river i.e. AB Since PD is the height, it is perpendicular to AB PDA = PDB = 90 Lines PQ & AB are parallel, And AP is the transversal PAD = QPA PAD = 30 Similarly, Lines PR & AB are parallel, And BP is the transversal PBD = RPB PBD = 45 Now, AB = AD + BD = 3 3 + 3 = 3( 3 + 1) Width of the river = AB = 3( 3 + 1) metre

Questions easy to difficult

Angle of Elevation and Angle of Depression

Angle of Depression from point A to point B is same as Angle of Elevation from point B to point A

How to find Height when angle of elevation is given?

How to find Distance when angle of depression is given?

Example 1

EX 9.1, 4

EX 9.1, 5

EX 9.1, 3 Important

EX 9.1, 2 Important

Ex 9.1, 7

Example 4

Example 2 Important

EX 9.1, 8

Example 5 Important

Ex 9.1, 11 Important

Example 7 Important You are here

Example 3 Important

Ex 9.1, 6 Important

EX 9.1, 9 Important

Ex 9.1, 10 Important

Example 6 Important

Ex 9.1, 13 Important

Ex 9.1, 12 Important

Ex 9.1, 16 Important

Ex 9.1, 14 Important

Ex 9.1, 15 Important

EX 9.1, 1
