Question 1 (b) - Figure it out - Page 162 - Constructing Triangle when 2 Angles and the Included Side are given - Chapter 7 Class 7 - A tale of three Intersecting Lines (Ganit Prakash)
Last updated at November 7, 2025 by Teachoo
Constructing Triangle when 2 Angles and the Included Side are given
Class 7 (Ganita Prakash 1, 2 & old NCERT)
Chapter 7 Class 7 - A tale of three Intersecting Lines (Ganit Prakash)
- Definition
- Constructing Equilateral Triangle
- Constructing a Triangle when its Sides are given
- Figure it out - Page 150, 151
- Are Triangles Possible for any Lengths?
- Figure it out - Page 154
- Visualising the Construction of Circles
- Figure it out - Page 156
- Triangle Inequality & Construction of Circles
- Figure it out - Page 159
- Constructing Triangle when 2 Sides and the Included Angle are given
-
Constructing Triangle when 2 Angles and the Included Side are given
- Do triangles always exist?
- Sum of angles of a triangle
- Angle Sum Property
- Exterior Angles
- Constructions Related to Altitudes of Triangles
- Figure it out - Page 170, 171
Transcript

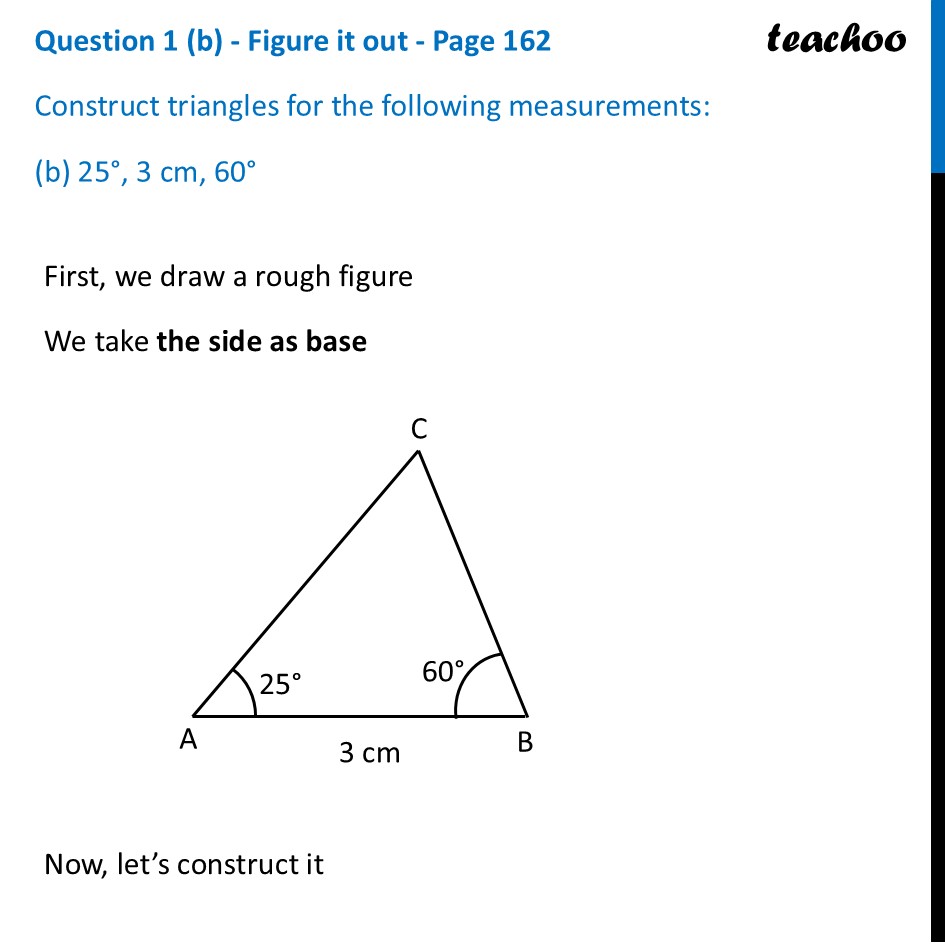

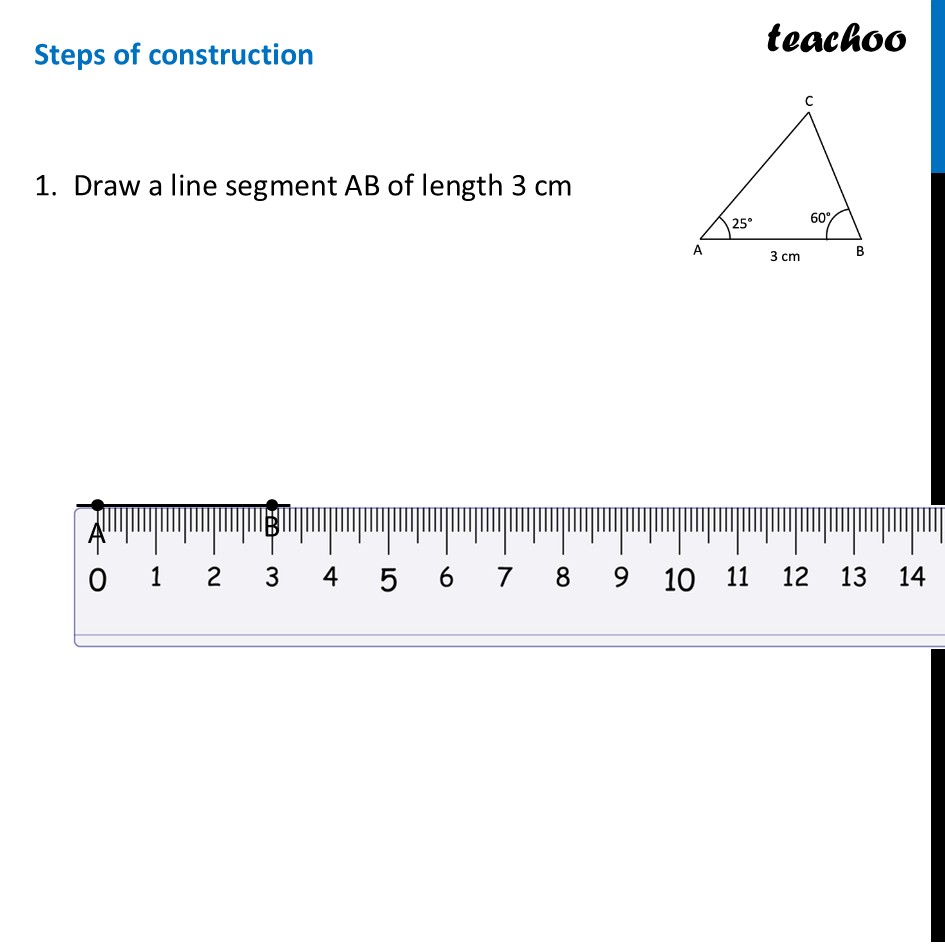

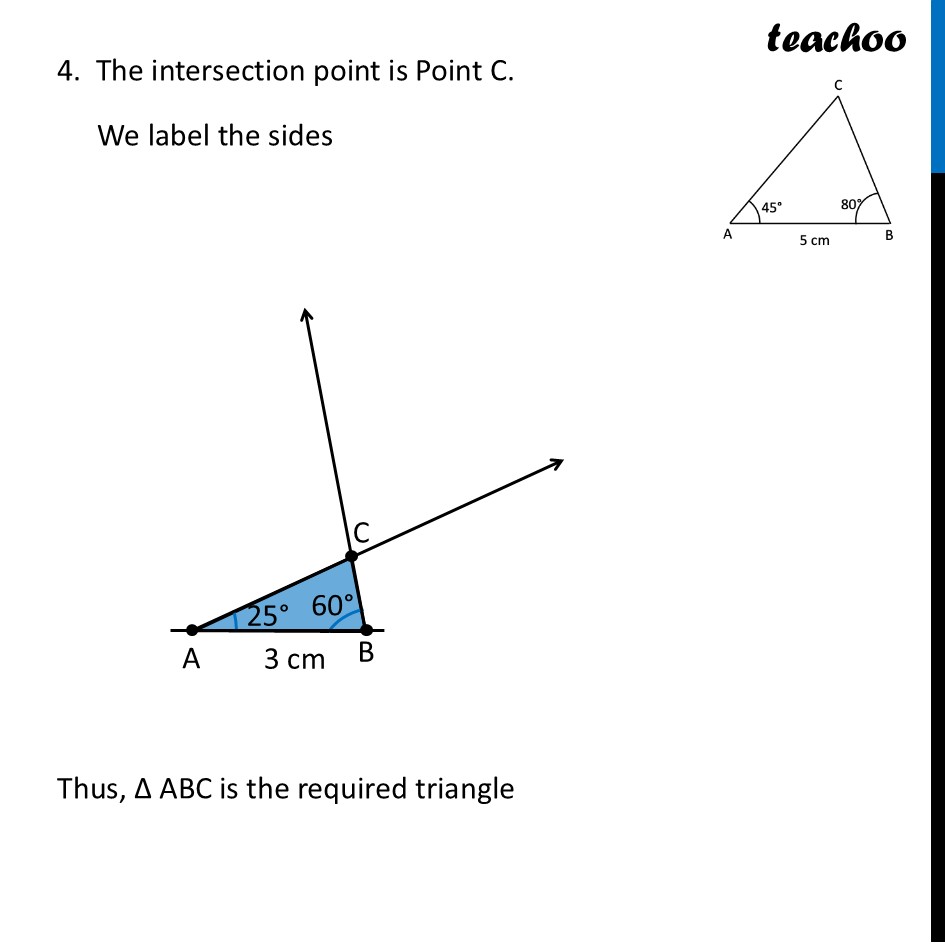

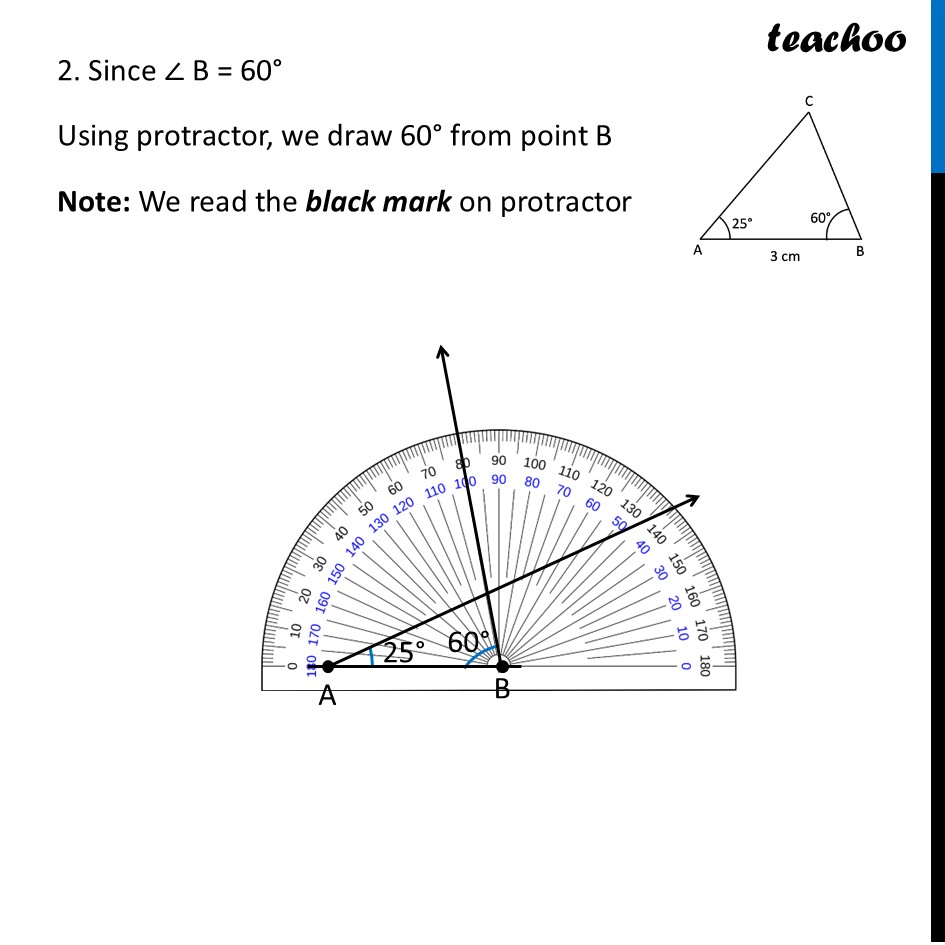

Question 1 (b) - Figure it out - Page 162 Construct triangles for the following measurements: (b) 25°, 3 cm, 60° First, we draw a rough figure We take the side as base Now, let’s construct it Steps of construction 1. Draw a line segment AB of length 3 cm 2. Since ∠ A = 25° Using protractor, we draw 25° from point A Note: We read the blue mark on protractor 2. Since ∠ B = 60° Using protractor, we draw 60° from point B Note: We read the black mark on protractor 4. The intersection point is Point C. We label the sides Thus, Δ ABC is the required triangle
