Question 1 - Figure it out - Page 150, 151 - Chapter 7 Class 7 - A tale of three Intersecting Lines (Ganit Prakash)
Last updated at July 21, 2026 by Teachoo
Figure it out - Page 150, 151
Class 7 (Ganita Prakash 1, 2 & old NCERT)
Chapter 7 Class 7 - A tale of three Intersecting Lines (Ganit Prakash)
- Definition
- Constructing Equilateral Triangle
- Constructing a Triangle when its Sides are given
-
Figure it out - Page 150, 151
- Are Triangles Possible for any Lengths?
- Figure it out - Page 154
- Visualising the Construction of Circles
- Figure it out - Page 156
- Triangle Inequality & Construction of Circles
- Figure it out - Page 159
- Constructing Triangle when 2 Sides and the Included Angle are given
- Constructing Triangle when 2 Angles and the Included Side are given
- Do triangles always exist?
- Sum of angles of a triangle
- Angle Sum Property
- Exterior Angles
- Constructions Related to Altitudes of Triangles
- Figure it out - Page 170, 171
Transcript

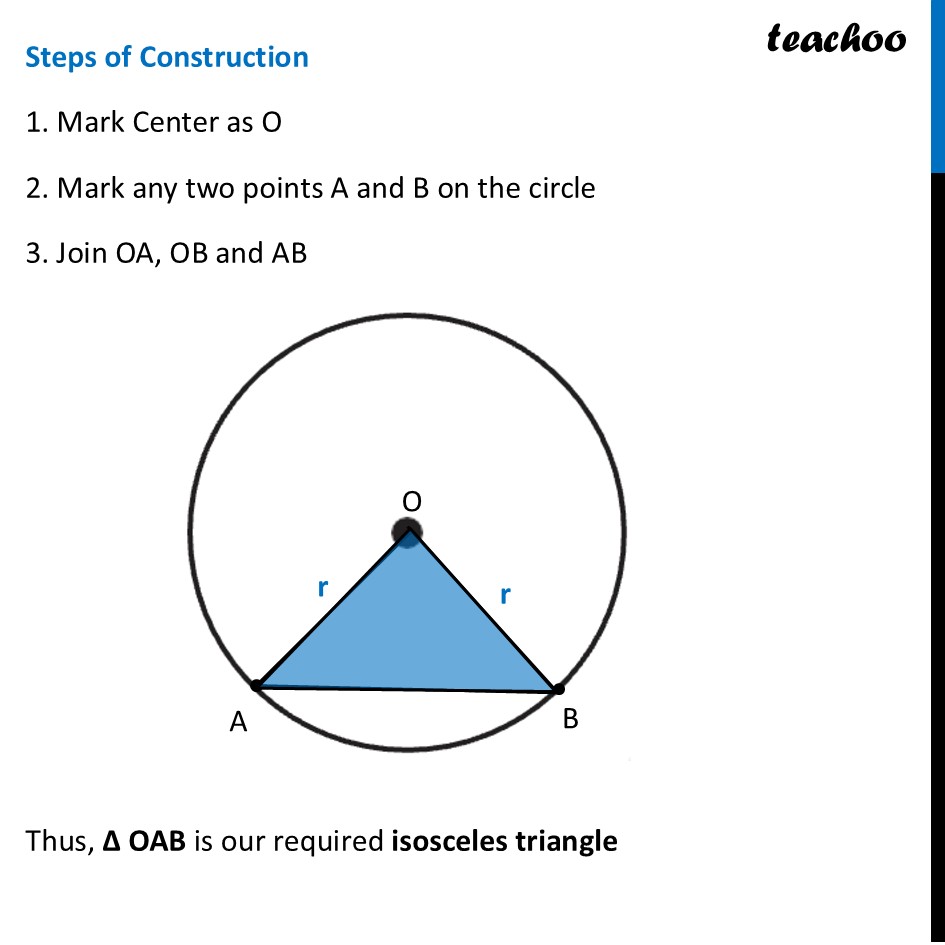

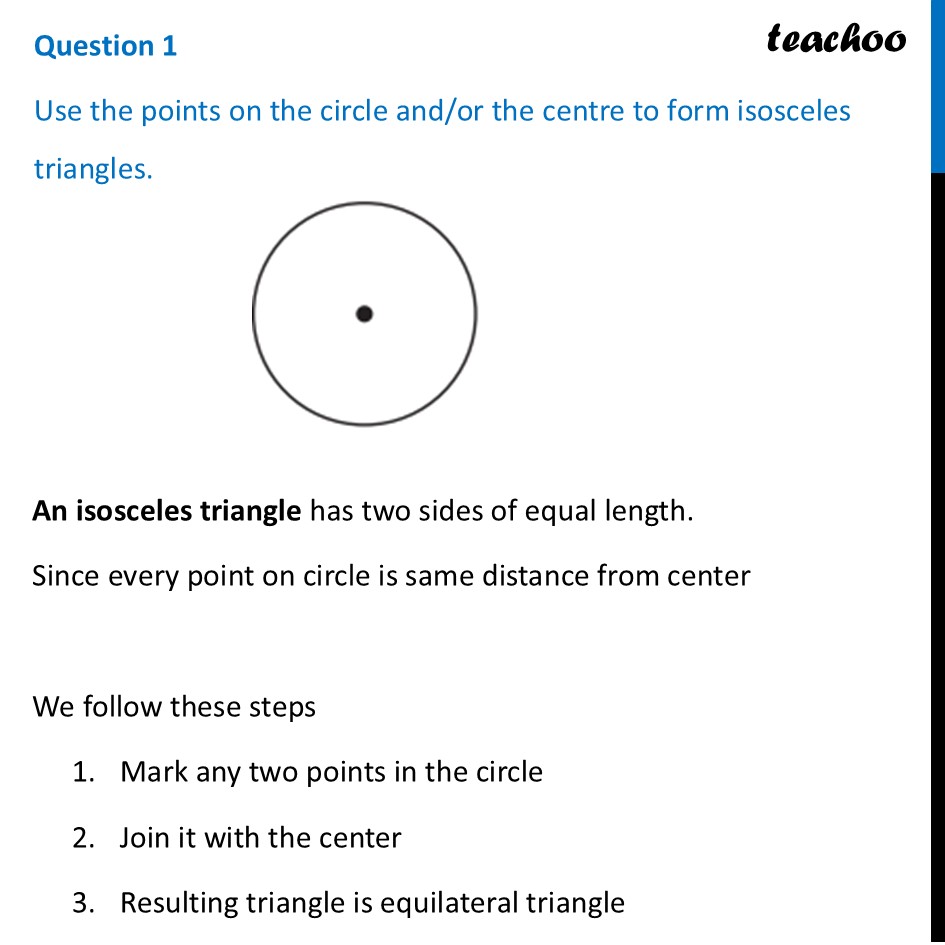

Question 1 Use the points on the circle and/or the centre to form isosceles triangles. An isosceles triangle has two sides of equal length. Since every point on circle is same distance from center We follow these steps Mark any two points in the circle Join it with the center Resulting triangle is equilateral triangle Steps of Construction 1. Mark Center as O 2. Mark any two points A and B on the circle 3. Join OA, OB and AB Thus, ∆ OAB is our required isosceles triangle
