Transcript

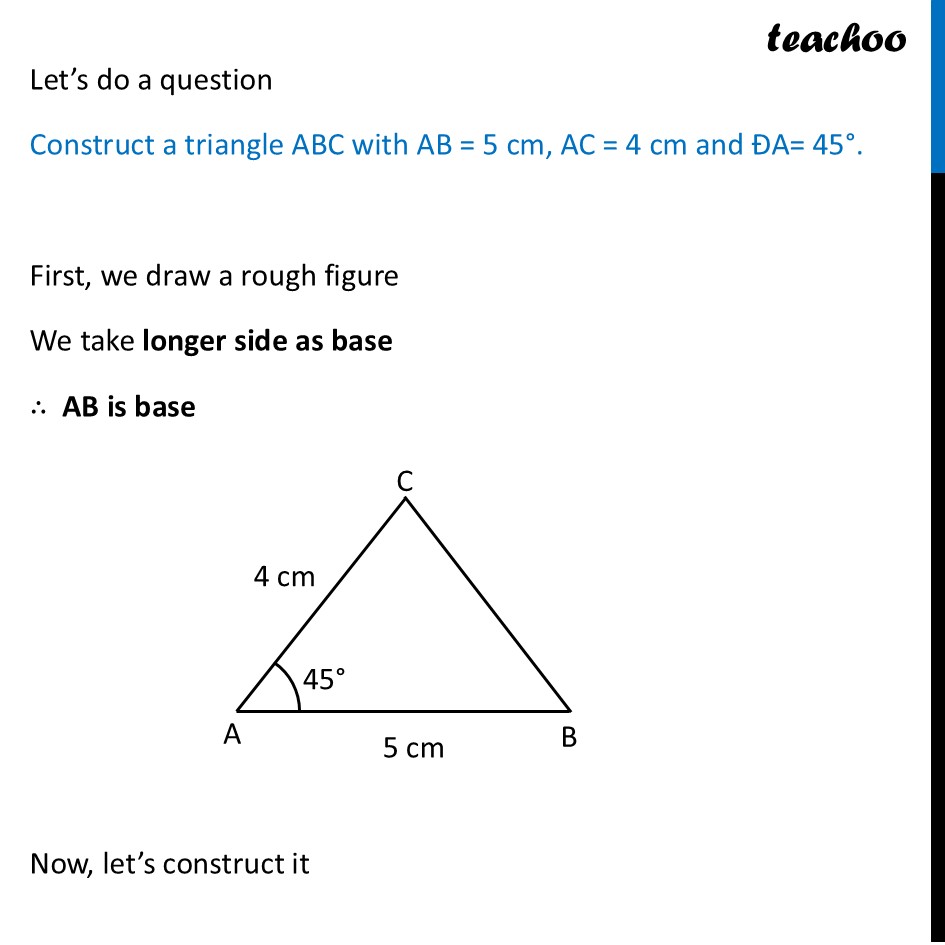

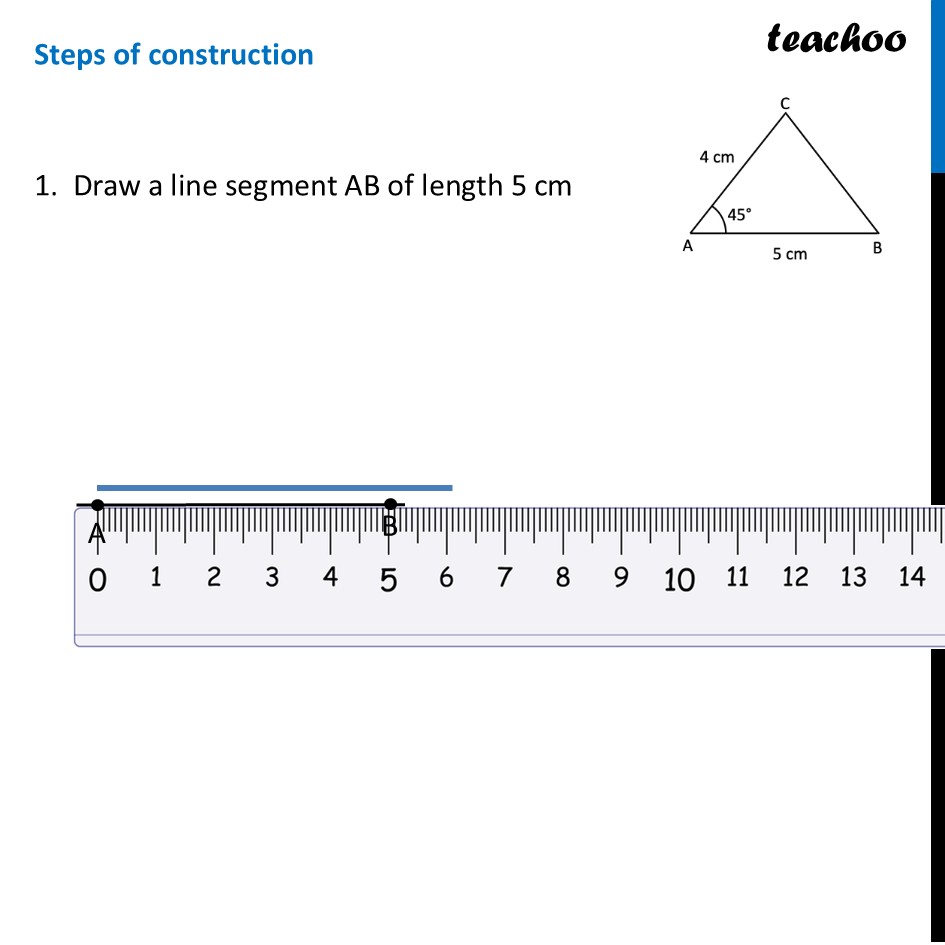

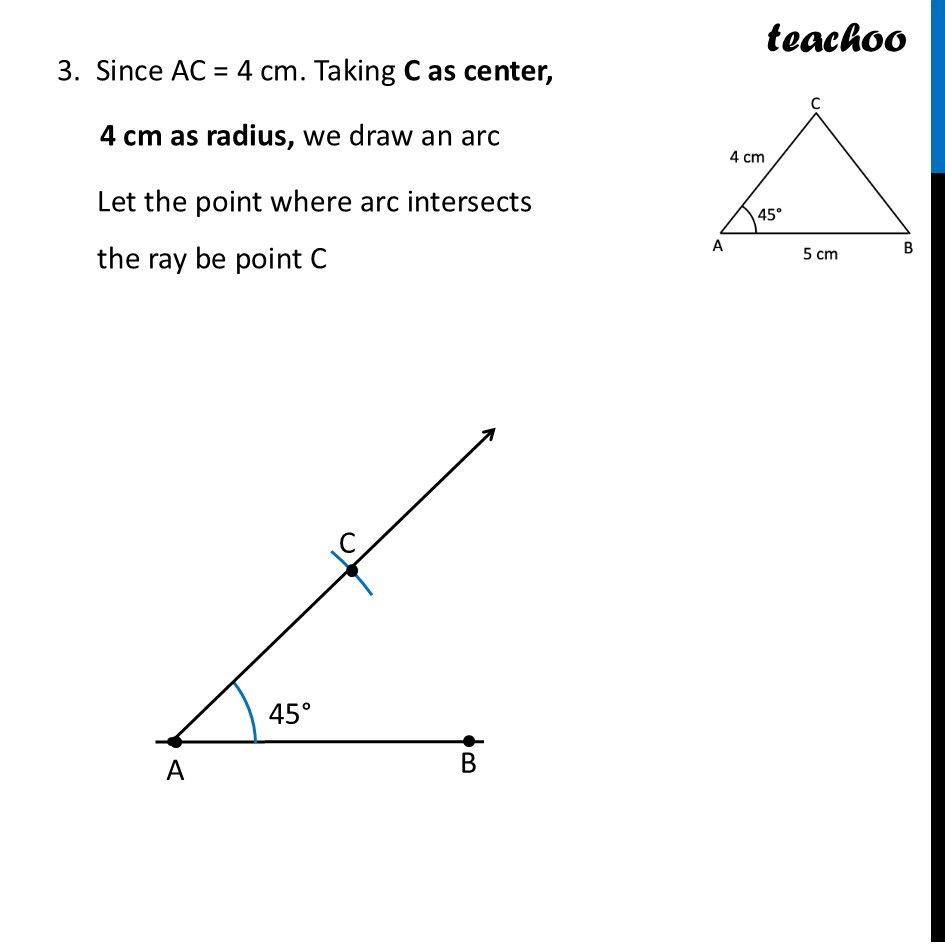

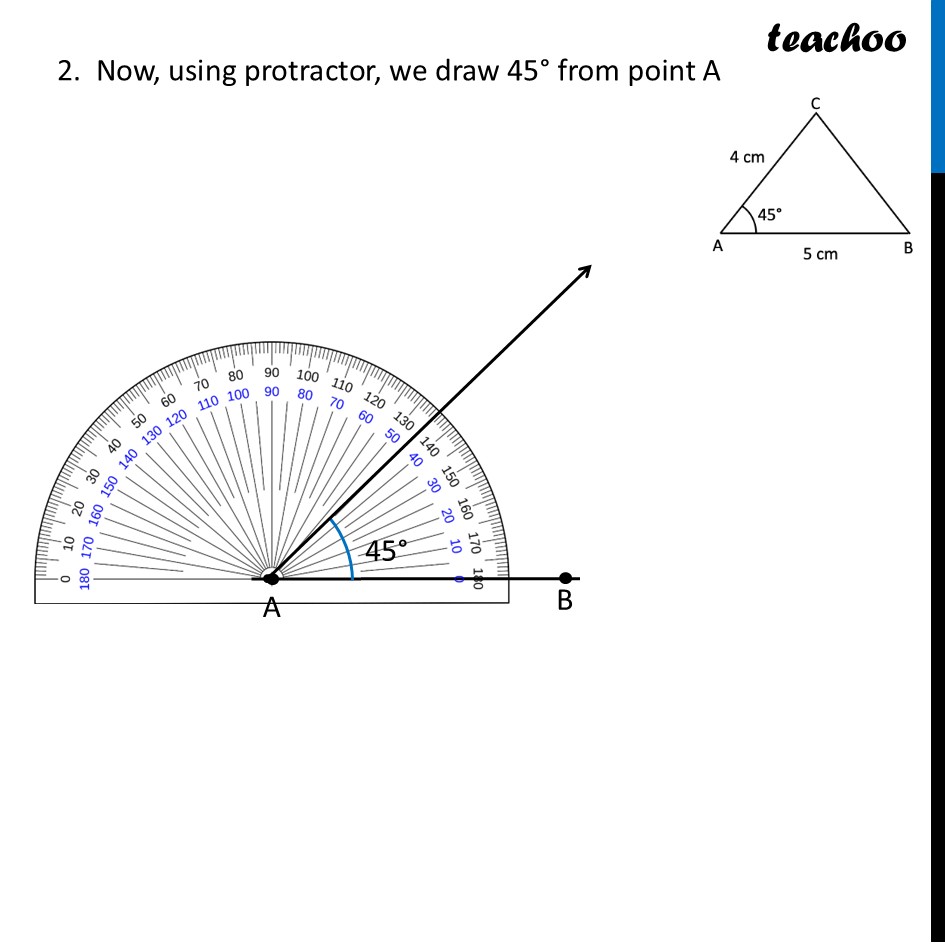

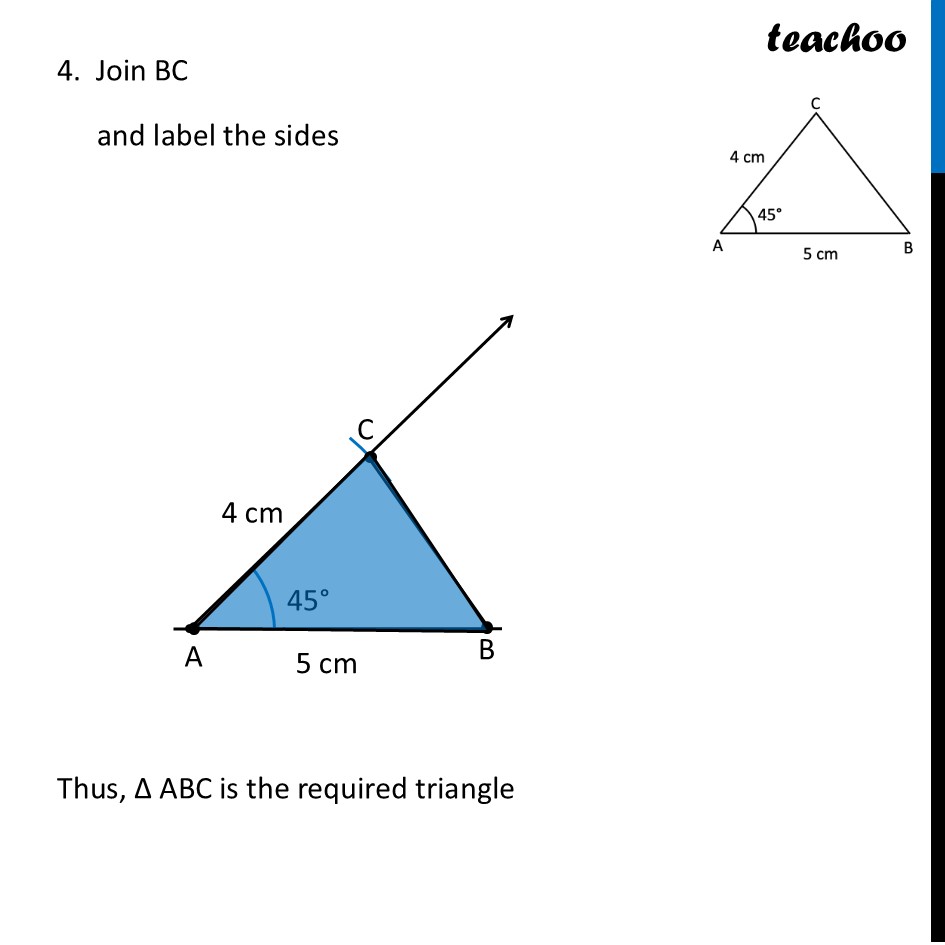

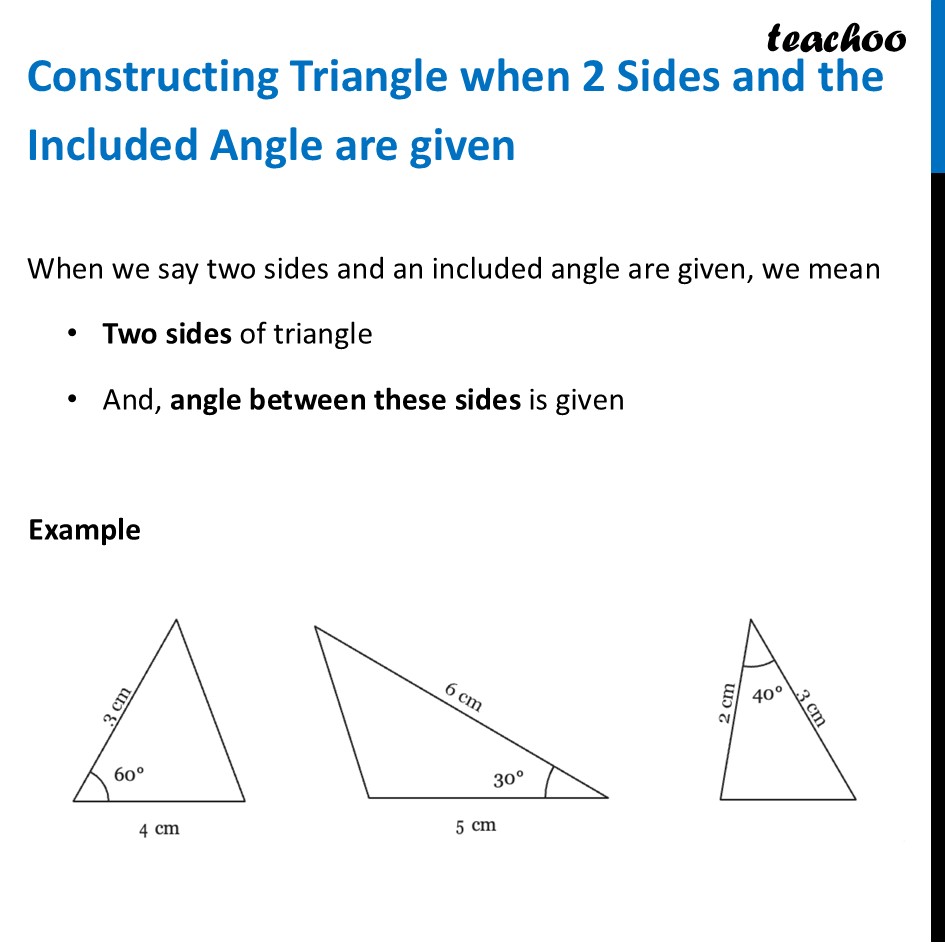

Constructing Triangle when 2 Sides and the Included Angle are givenWhen we say two sides and an included angle are given, we mean Two sides of triangle And, angle between these sides is given Example Let’s do a question Construct a triangle ABC with AB = 5 cm, AC = 4 cm and ÐA= 45°. First, we draw a rough figure We take longer side as base ∴ AB is base Now, let’s construct it Steps of construction 1. Draw a line segment AB of length 5 cm 2. Now, using protractor, we draw 45° from point A 3. Since AC = 4 cm. Taking C as center, 4 cm as radius, we draw an arc Let the point where arc intersects the ray be point C 4. Join BC and label the sides Thus, Δ ABC is the required triangle
