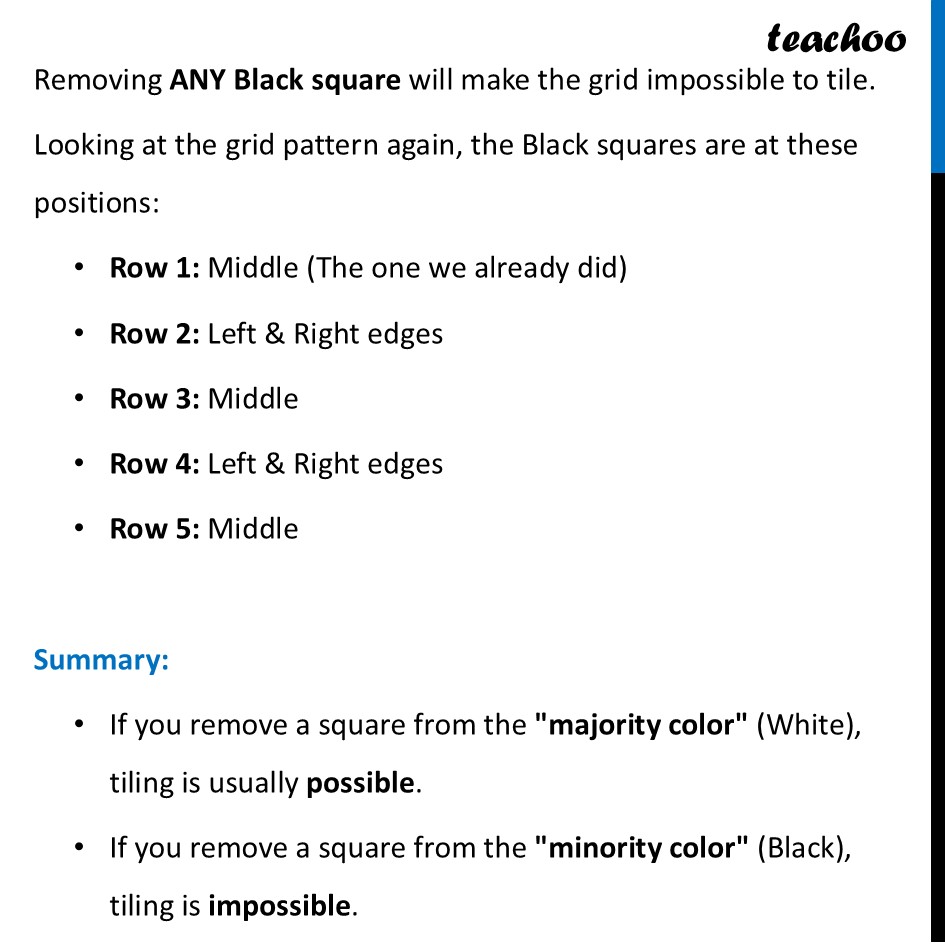

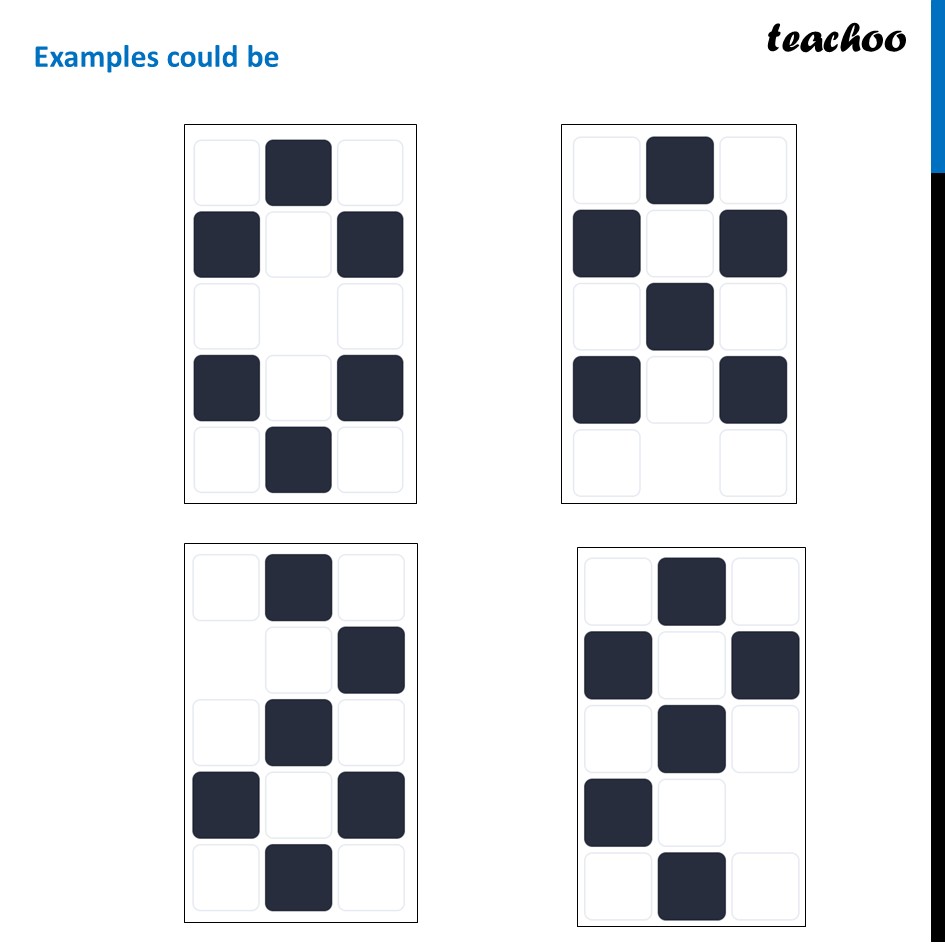

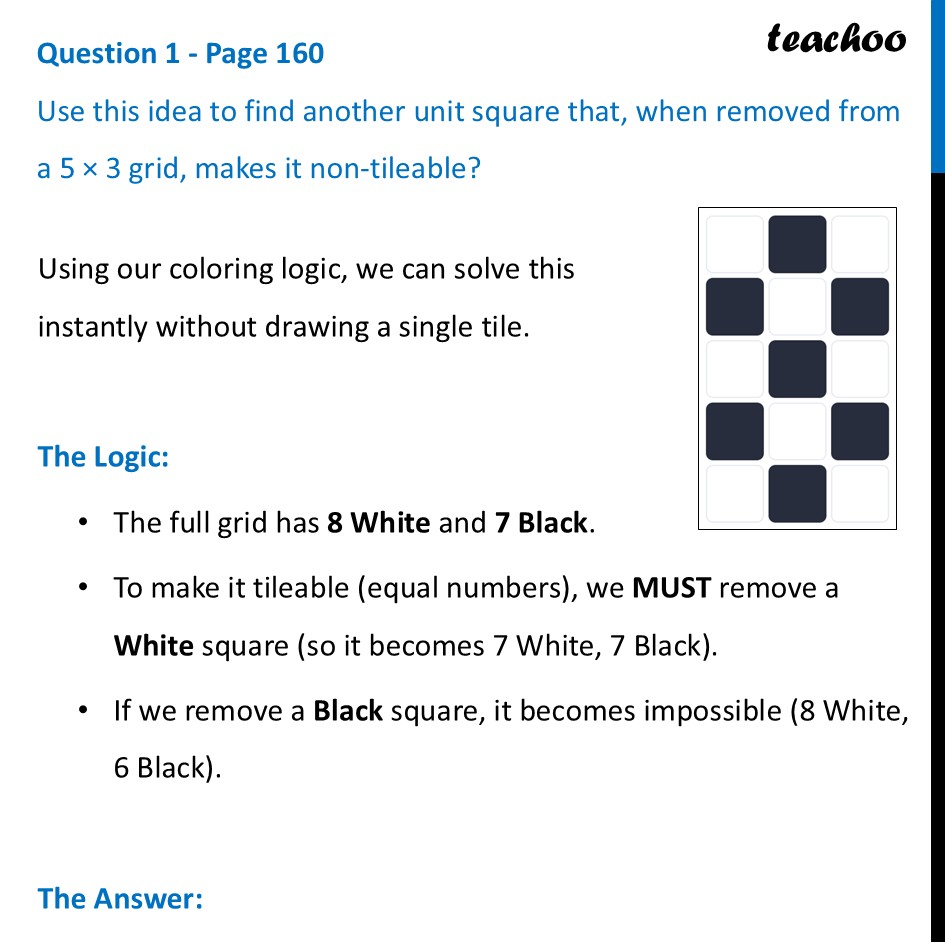

Question 1 - Page 160 Use this idea to find another unit square that, when removed from a 5 × 3 grid, makes it non-tileable?Using our coloring logic, we can solve this instantly without drawing a single tile. The Logic: The full grid has 8 White and 7 Black. To make it tileable (equal numbers), we MUST remove a White square (so it becomes 7 White, 7 Black). If we remove a Black square, it becomes impossible (8 White, 6 Black). The Answer: Removing ANY Black square will make the grid impossible to tile. Looking at the grid pattern again, the Black squares are at these positions: Row 1: Middle (The one we already did) Row 2: Left & Right edges Row 3: Middle Row 4: Left & Right edges Row 5: Middle Summary: If you remove a square from the "majority color" (White), tiling is usually possible. If you remove a square from the "minority color" (Black), tiling is impossible. Examples could be
