Constructing Copy of an Angle
Last updated at February 6, 2026 by Teachoo
Class 7 (Ganita Prakash 1, 2 & old NCERT)
Chapter 6 Class 7 - Constructions and Tilings (Ganita Prakash II)
- Constructing an Eye
- Constructing a Perpendicular Bisector
- Constructing angle 90°
- Construction Methods in Śulba-Sūtras
- Constructing Angle Bisectors
- Figure it out - Pag 144, 145
-
Constructing Copy of an Angle
- Construction of a Line Parallel to the Given Line
- Constructing Arch Designs
- Constructing Regular Hexagon, Angle 60° and 6-pointed Star
- Figure it out - Pag 154, 155
- Tangrams
- Tiling
- Figure it out - Page 160
- Tiling the Entire Plane
Transcript

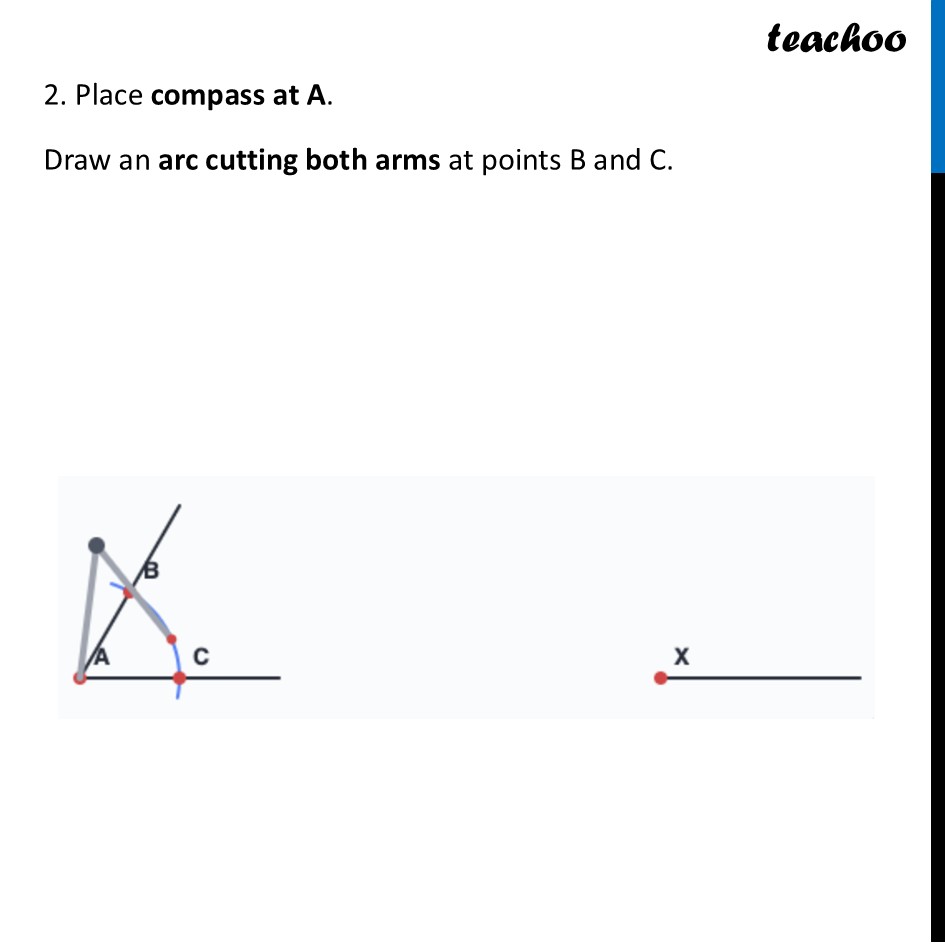

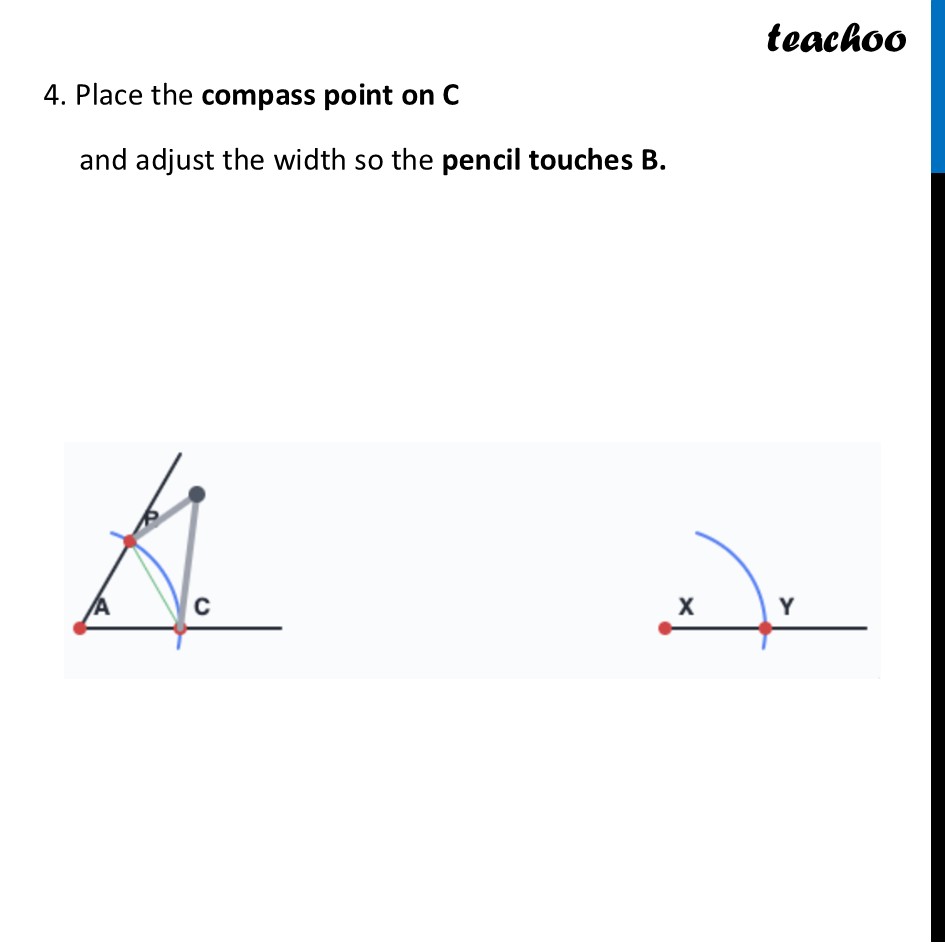

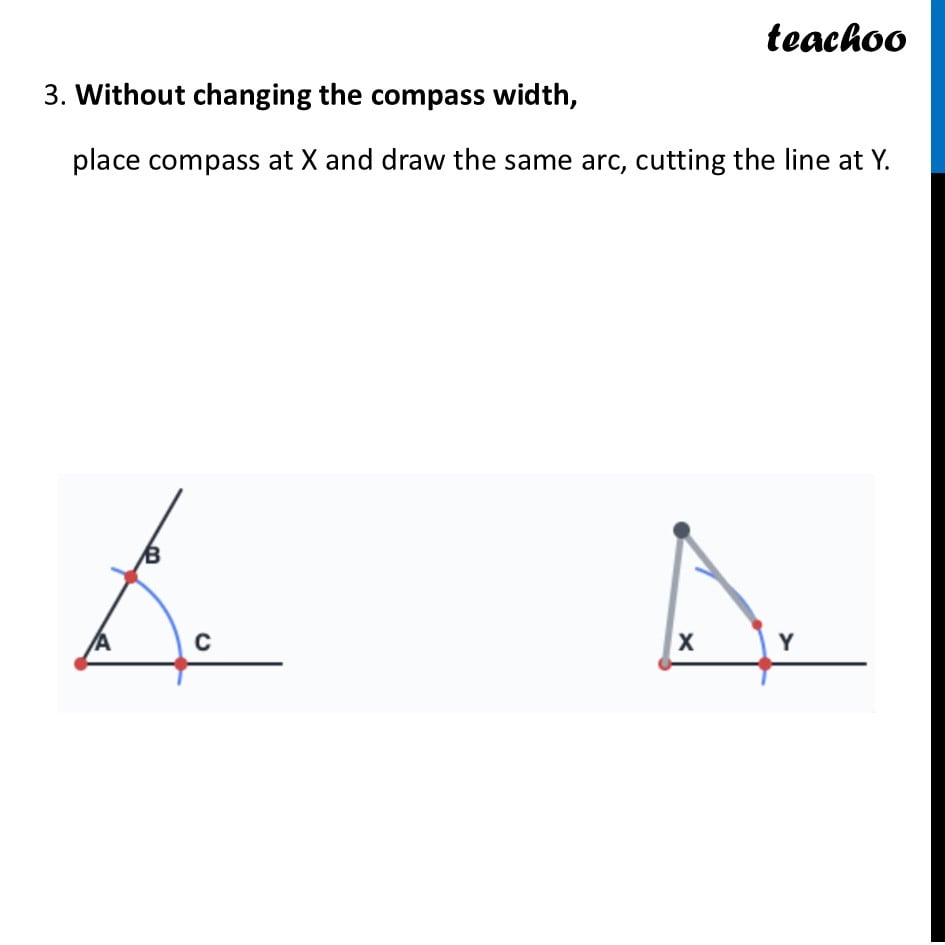

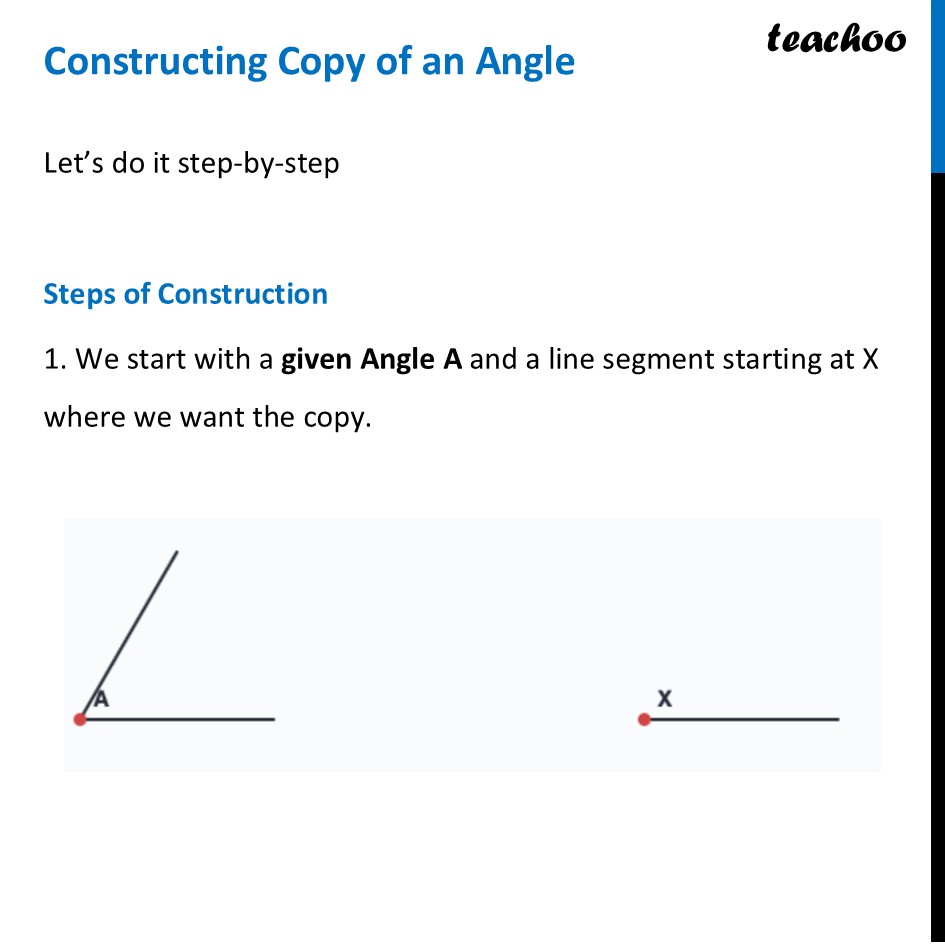

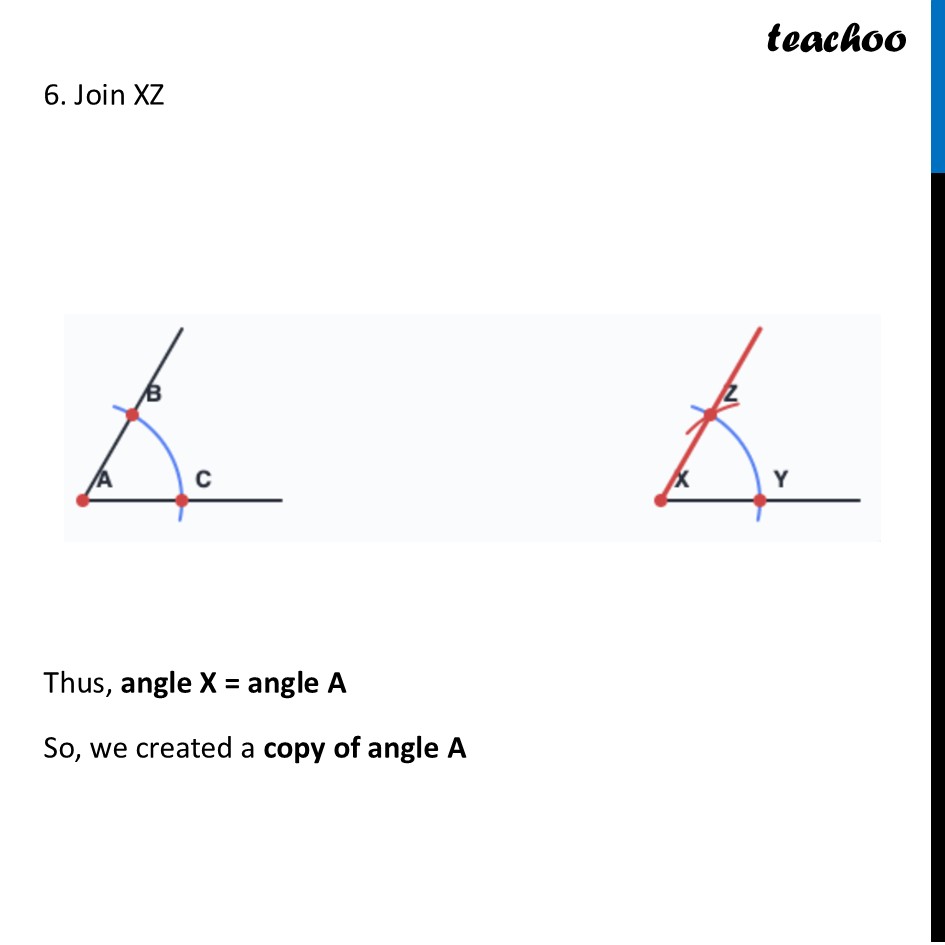

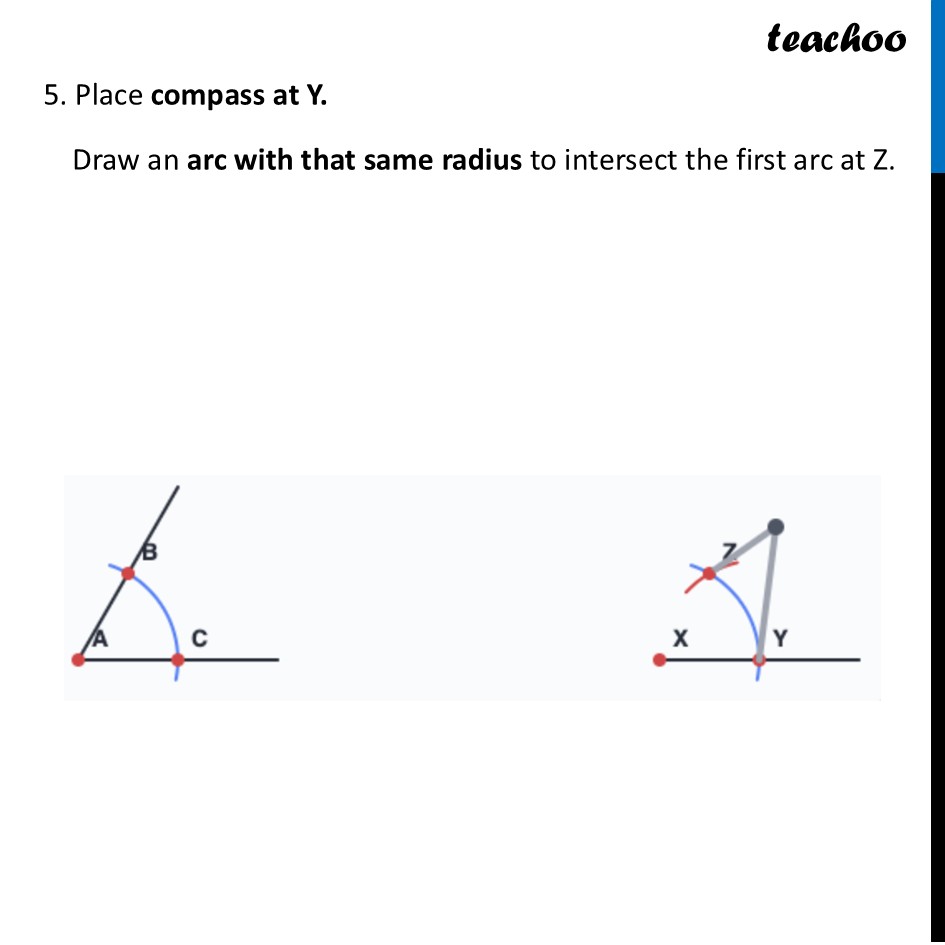

Constructing Copy of an AngleLet’s do it step-by-step Steps of Construction 1. We start with a given Angle A and a line segment starting at X where we want the copy. 2. Place compass at A. Draw an arc cutting both arms at points B and C. 3. Without changing the compass width, place compass at X and draw the same arc, cutting the line at Y. 4. Place the compass point on C and adjust the width so the pencil touches B. 5. Place compass at Y. Draw an arc with that same radius to intersect the first arc at Z. 6. Join XZ Thus, angle X = angle A So, we created a copy of angle A
