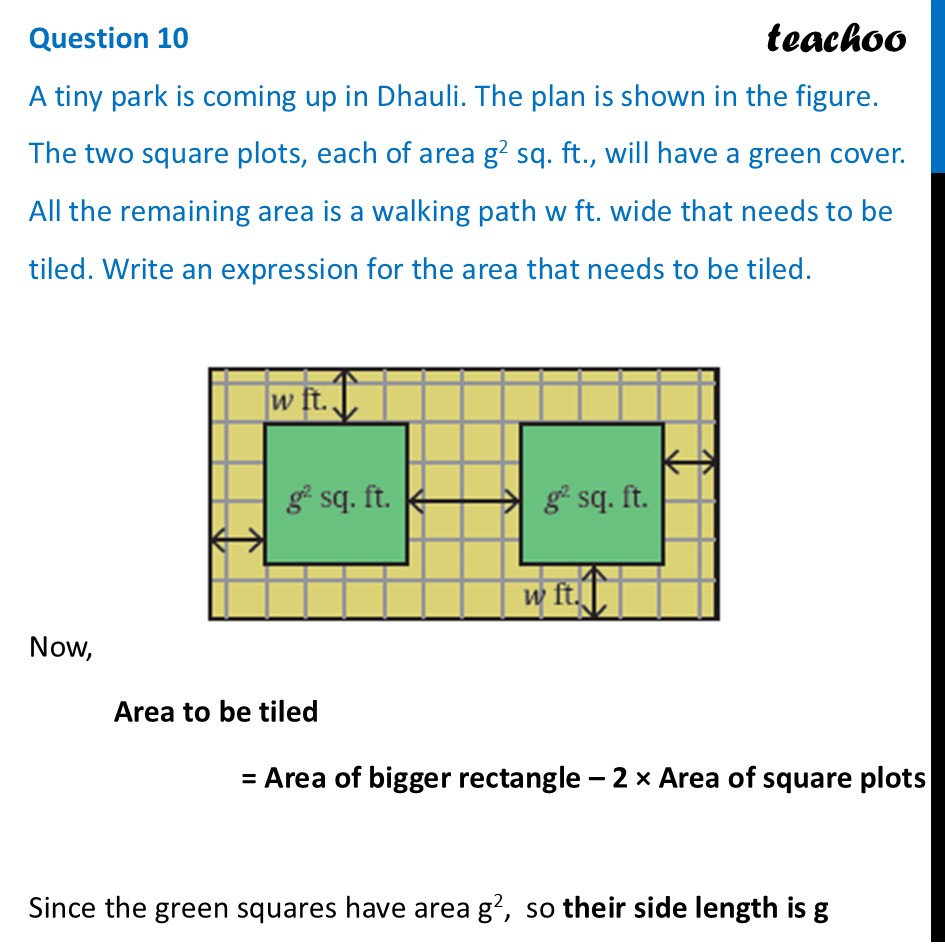

Question 10 A tiny park is coming up in Dhauli. The plan is shown in the figure. The two square plots, each of area g2 sq. ft., will have a green cover. All the remaining area is a walking path w ft. wide that needs to be tiled. Write an expression for the area that needs to be tiled.Now, Area to be tiled = Area of bigger rectangle โ 2 ร Area of square plots Since the green squares have area g2, so their side length is g Our figure becomes Total height = ๐ค+๐+๐ค = ๐+๐๐ Total width = ๐ค+๐+๐ค+๐+๐ค = ๐๐+๐๐ Now, Area to be tiled = Area of bigger rectangle โ 2 ร Area of square plots = (๐+๐๐) ร (๐๐+๐๐)โ๐ ร ๐^๐ = ๐(2๐+3๐ค)+2๐ค(2๐+3๐ค)โ2 ร ๐^2 = 2g^2+3gw+4gw+6w^2โ2g^2 = (2g^2โ2g^2)+3gw+4gw+6w^2 = 3gw+4gw+6w^2 = 7gw+6w^2 = ๐ฐ(๐๐+๐๐) square units
