Transcript

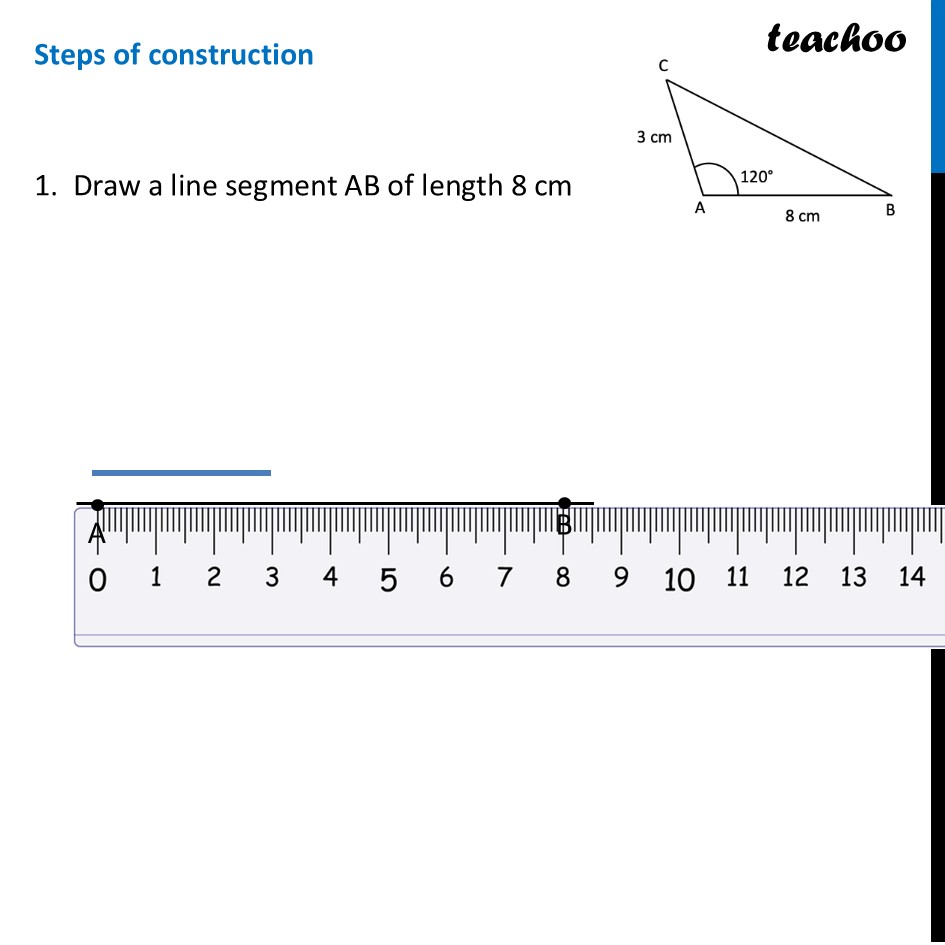

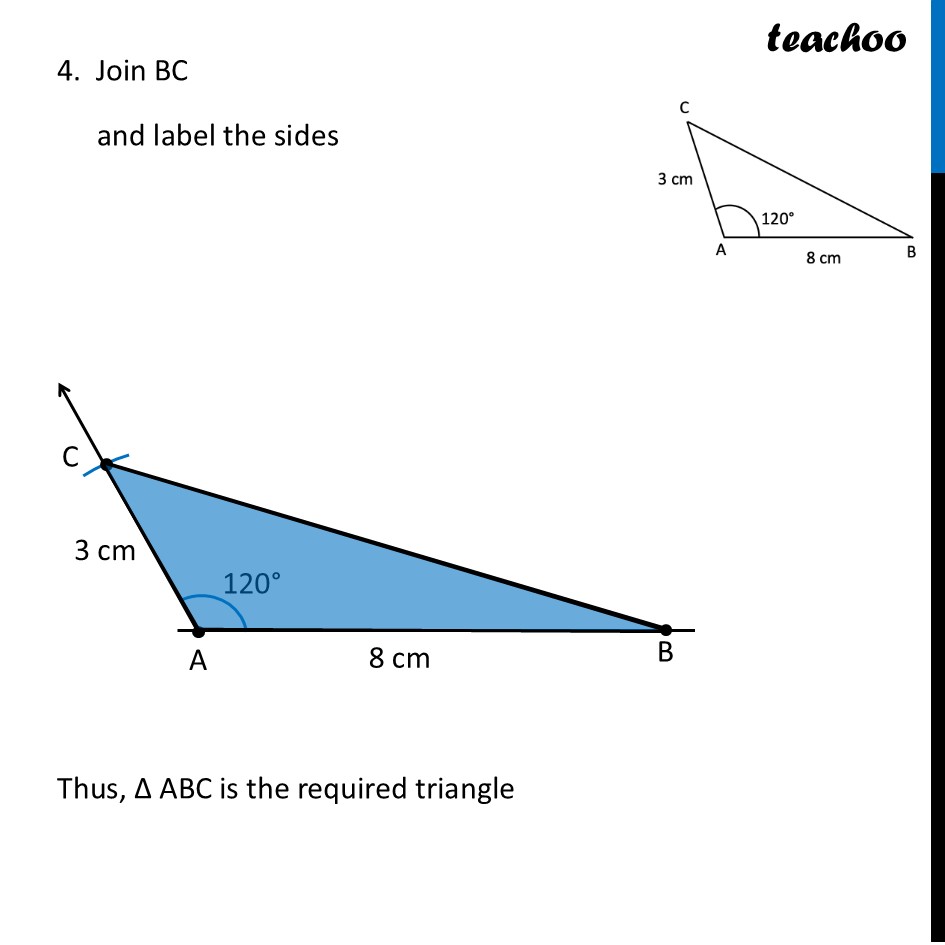

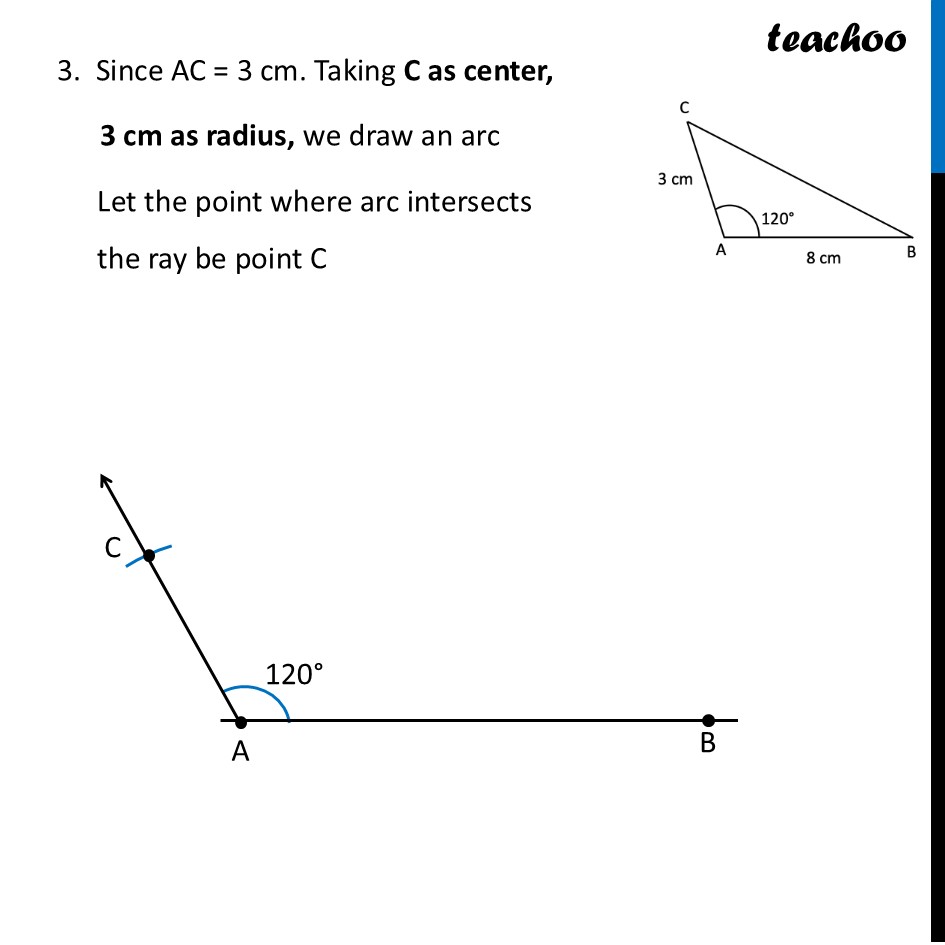

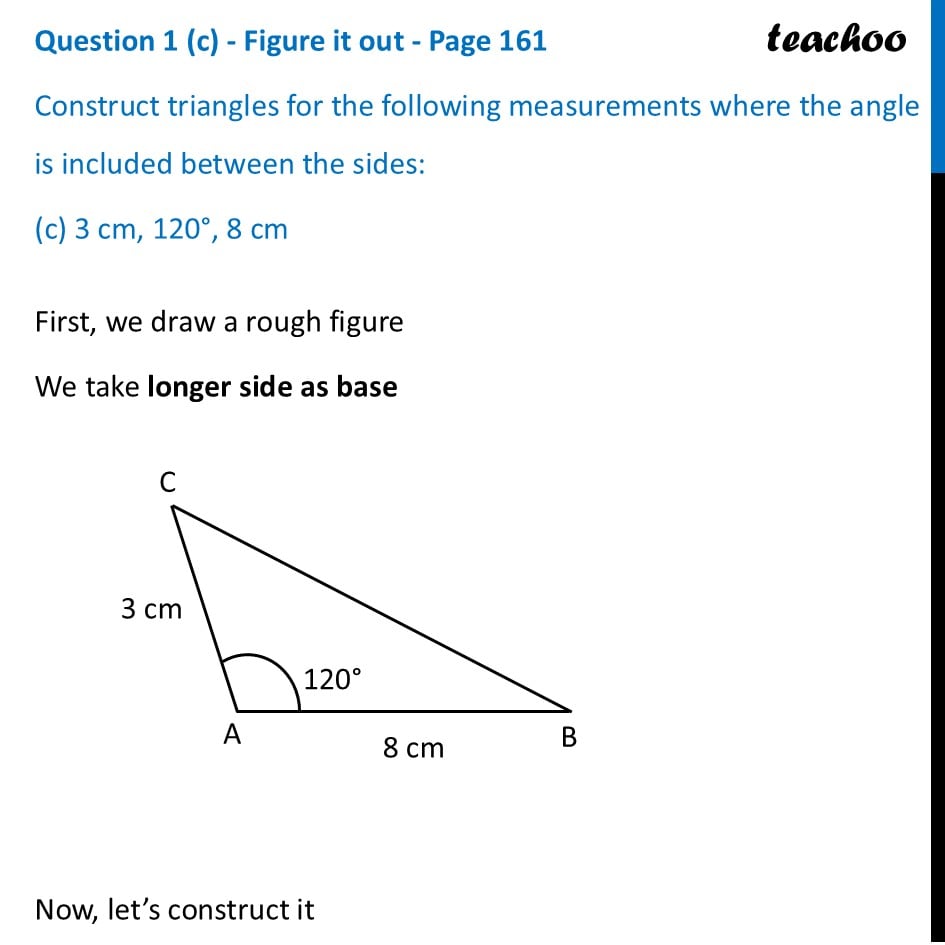

Question 1 (c) - Figure it out - Page 161 Construct triangles for the following measurements where the angle is included between the sides: (c) 3 cm, 120°, 8 cm First, we draw a rough figure We take longer side as base Now, let’s construct it Steps of construction 1. Draw a line segment AB of length 8 cm 2. Now, using protractor, we draw 120° from point A 3. Since AC = 3 cm. Taking C as center, 3 cm as radius, we draw an arc Let the point where arc intersects the ray be point C 4. Join BC and label the sides Thus, Δ ABC is the required triangle
