A Pointed Arch
Last updated at February 6, 2026 by Teachoo
Class 7 (Ganita Prakash 1, 2 & old NCERT)
Chapter 6 Class 7 - Constructions and Tilings (Ganita Prakash II)
- Constructing an Eye
- Constructing a Perpendicular Bisector
- Constructing angle 90°
- Construction Methods in Śulba-Sūtras
- Constructing Angle Bisectors
- Figure it out - Pag 144, 145
- Constructing Copy of an Angle
- Construction of a Line Parallel to the Given Line
-
Constructing Arch Designs
- Constructing Regular Hexagon, Angle 60° and 6-pointed Star
- Figure it out - Pag 154, 155
- Tangrams
- Tiling
- Figure it out - Page 160
- Tiling the Entire Plane
Transcript

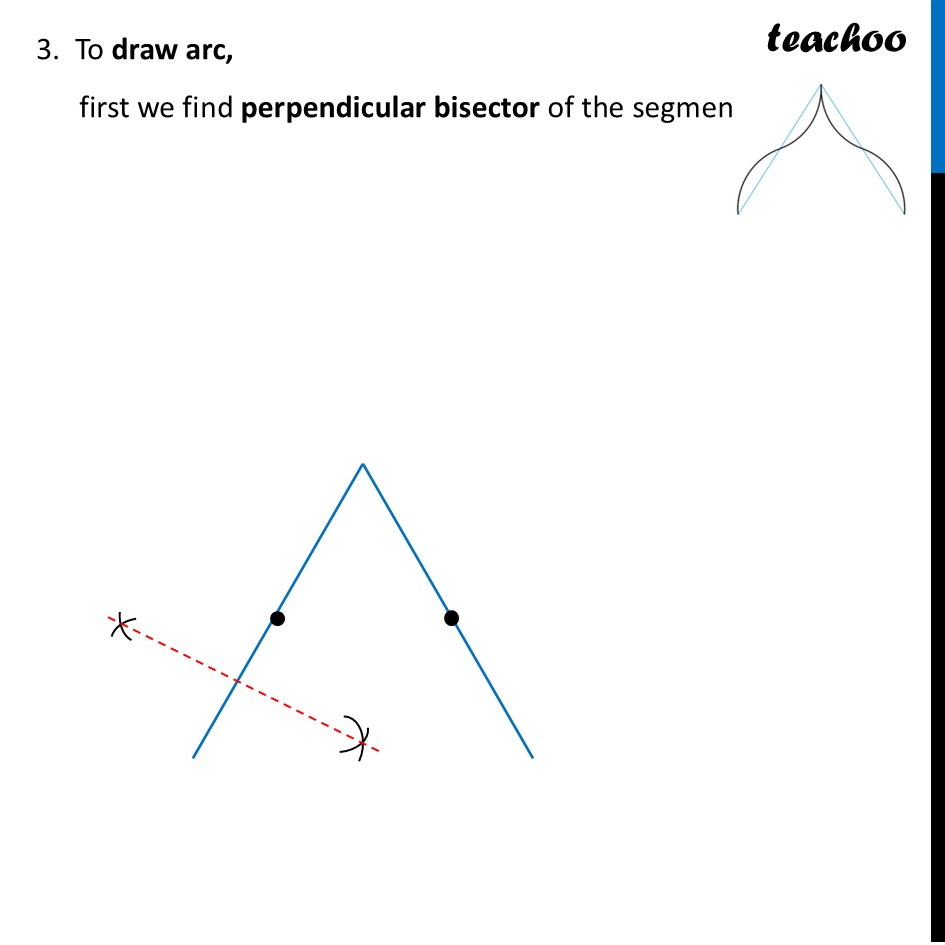

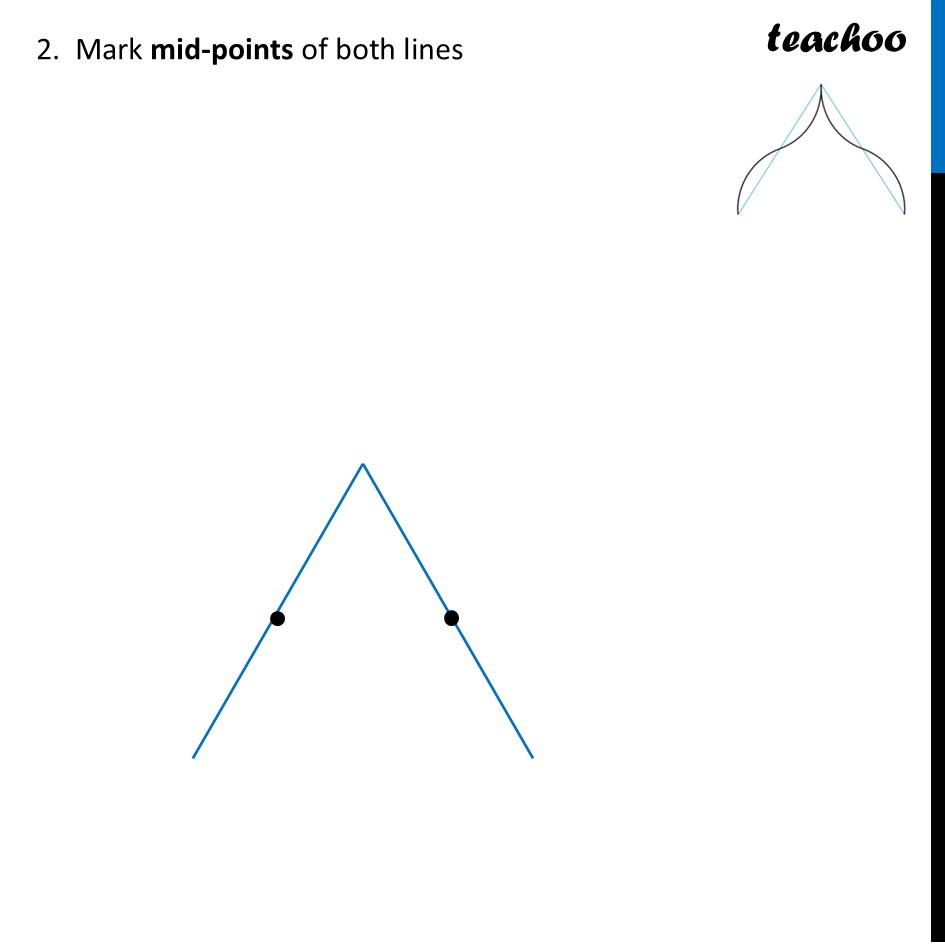

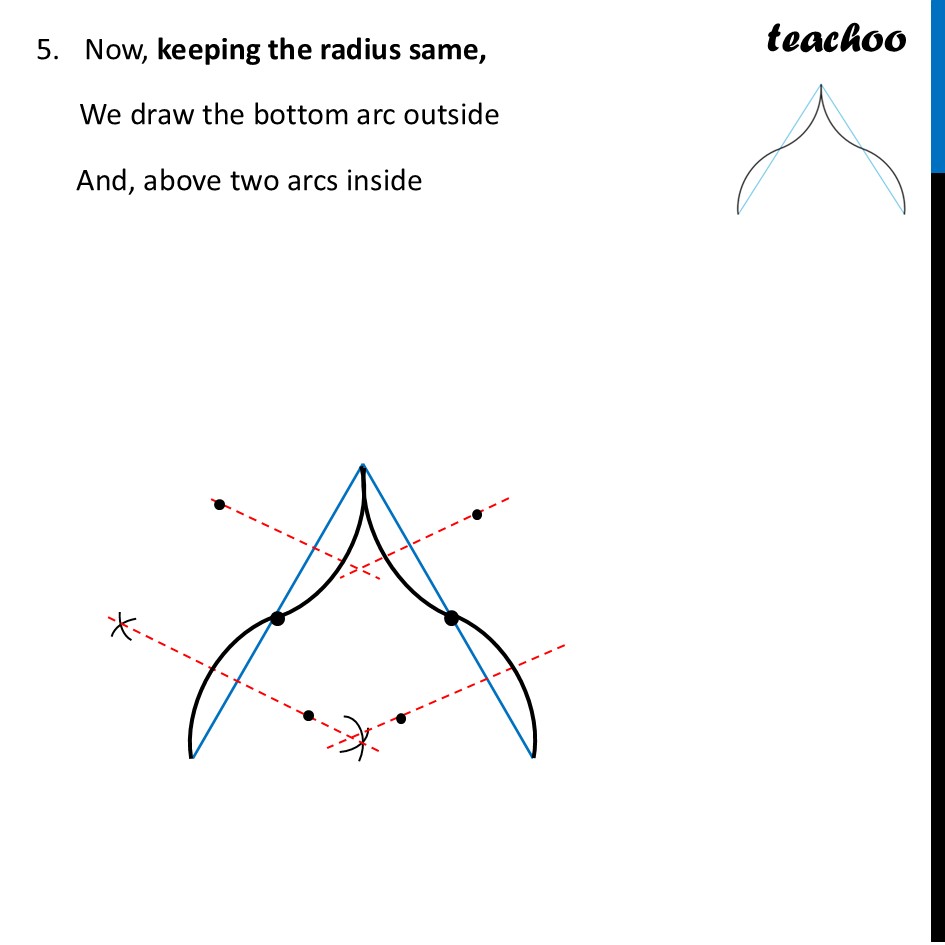

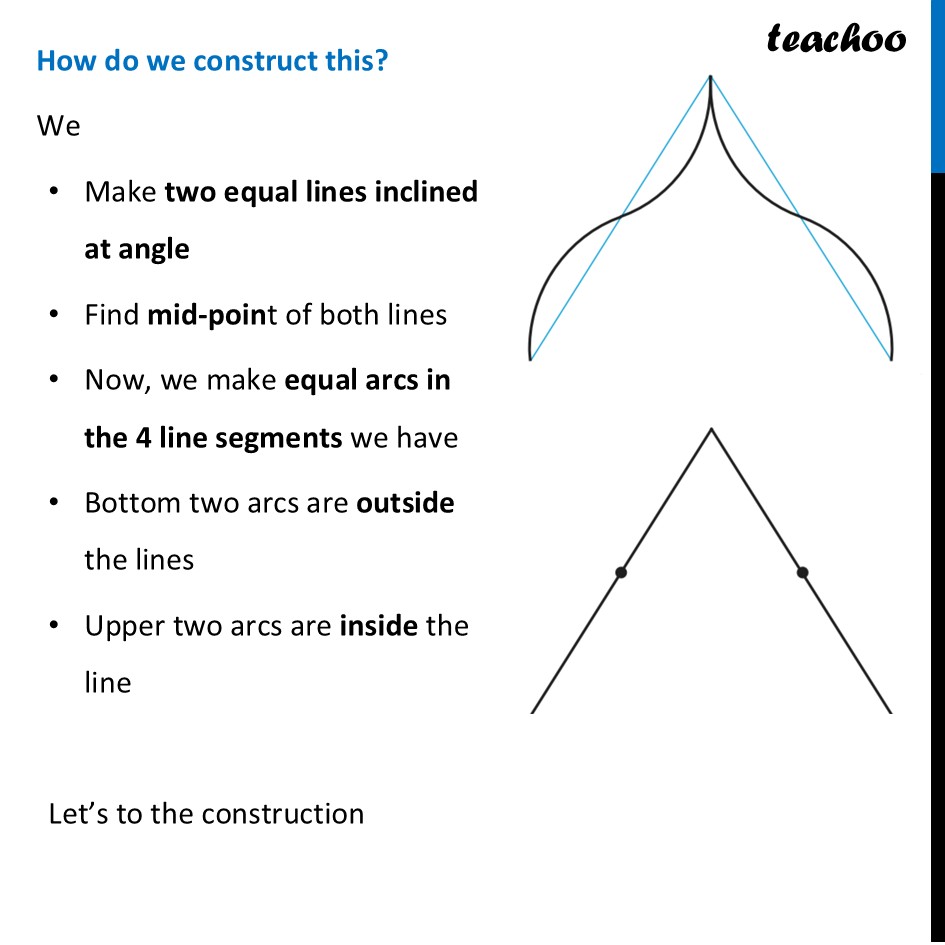

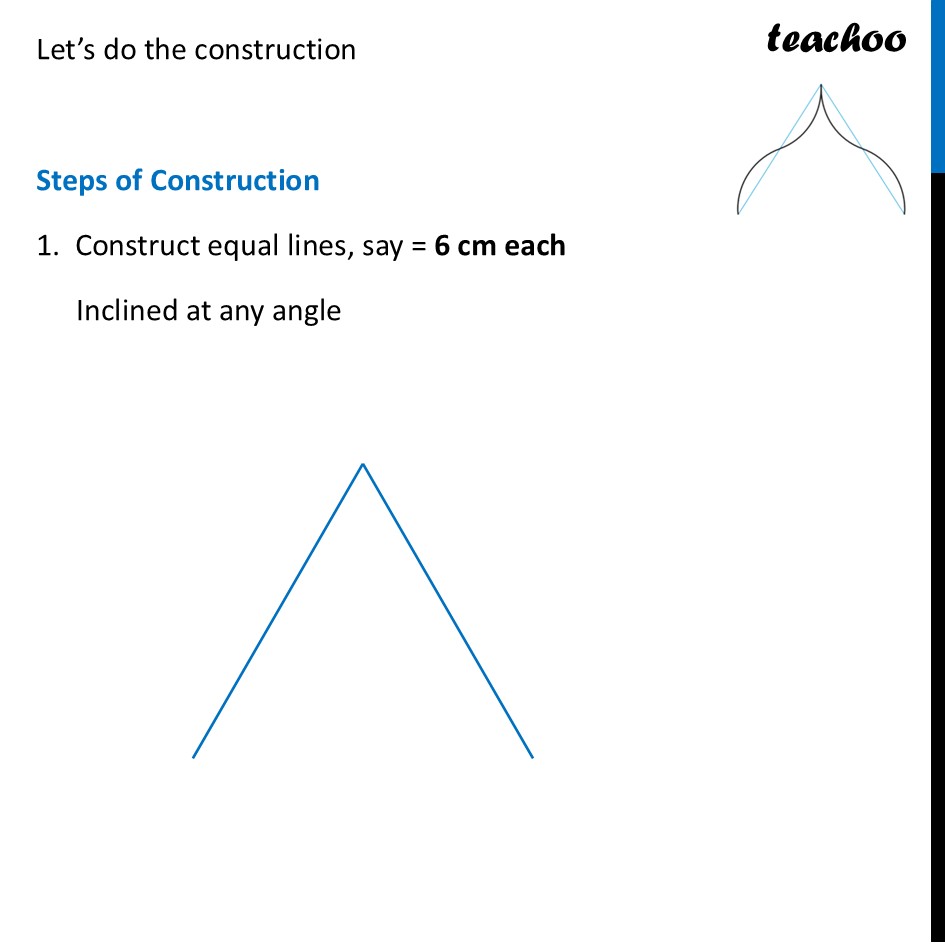

A Pointed ArchPointed arches look like How do we construct this? We Make two equal lines inclined at angle Find mid-point of both lines Now, we make equal arcs in the 4 line segments we have Bottom two arcs are outside the lines Upper two arcs are inside the line Let’s to the construction Let’s do the construction Steps of Construction 1. Construct equal lines, say = 6 cm each Inclined at any angle 2. Mark mid-points of both lines 3. To draw arc, first we find perpendicular bisector of the segment 4. Choose any point on perpendicular bisector Open compass such that it intersects both end points of the segment And draw an arc outside Now, keeping the radius same, We draw the bottom arc outside And, above two arcs inside
