Question 2 (d) - Figure it out - Page 123, 124, 125 - Chapter 5 Class 7 - Parallel and Intersecting Lines (Ganita Prakash)
Last updated at July 24, 2025 by Teachoo
Class 7 (Ganita Prakash & Old NCERT)
Chapter 5 Class 7 - Parallel and Intersecting Lines (Ganita Prakash)
- Intersecting Lines
- Parallel and Perpendicular lines
- Between lines
- Parallel and Perpendicular lines in Paper Folding
- Figure it out - Page 113, 114
- Transversals
- Corresponding Angles
- Alternate Angles
- Interior angle on Same side of Transversal
- Drawing Parallel Lines
- Parallel Illusions
-
Figure it out - Page 123, 124, 125
Transcript

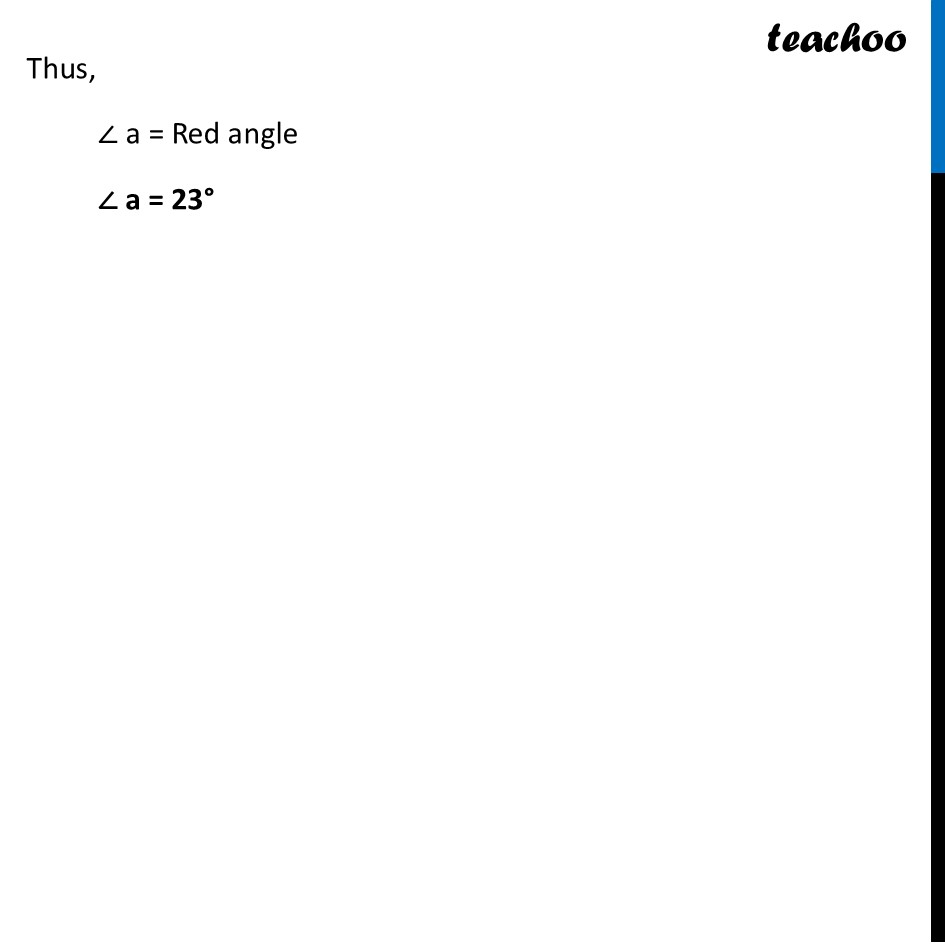

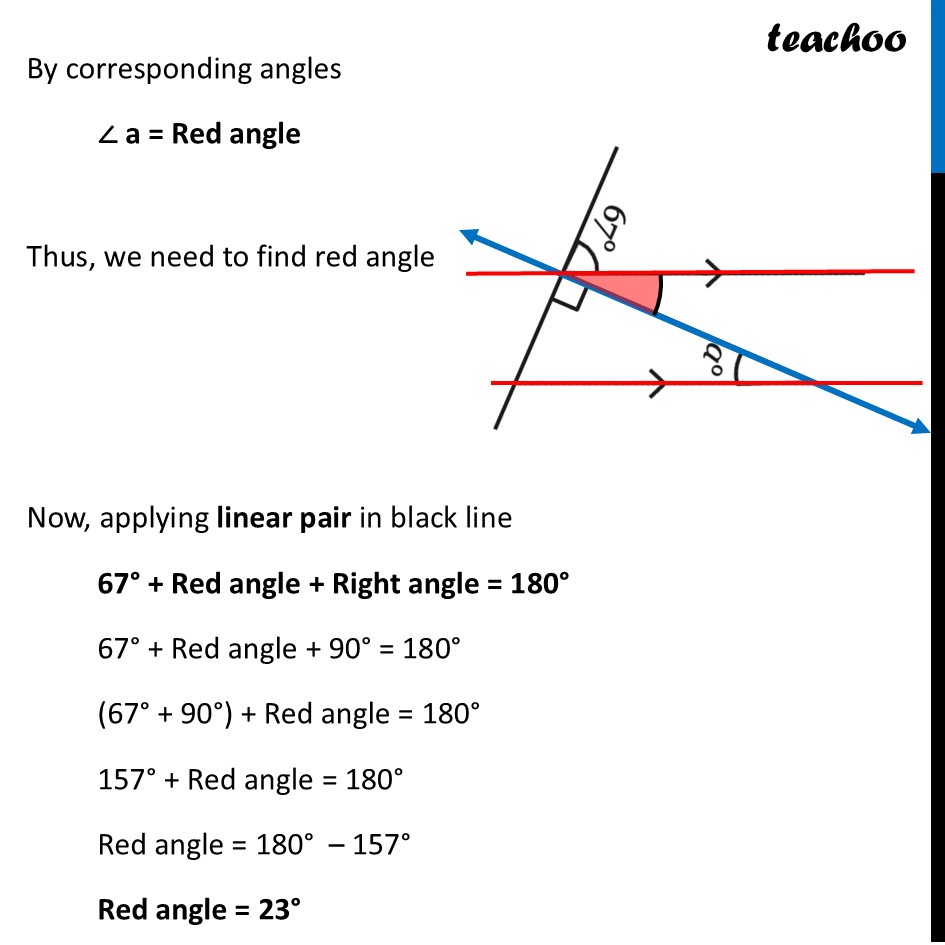

Question 2 (d) Find the angle represented by a. Making the figure again By corresponding angles ∠ a = Red angle Thus, we need to find red angle Now, applying linear pair in black line 67° + Red angle + Right angle = 180° 67° + Red angle + 90° = 180° (67° + 90°) + Red angle = 180° 157° + Red angle = 180° Red angle = 180° – 157° Red angle = 23° Thus, ∠ a = Red angle ∠ a = 23°
