Question 2 - Figure it out - Page 72 - Chapter 4 Class 8 - Exploring Some Geometric Themes (Ganita Prakash II

Transcript

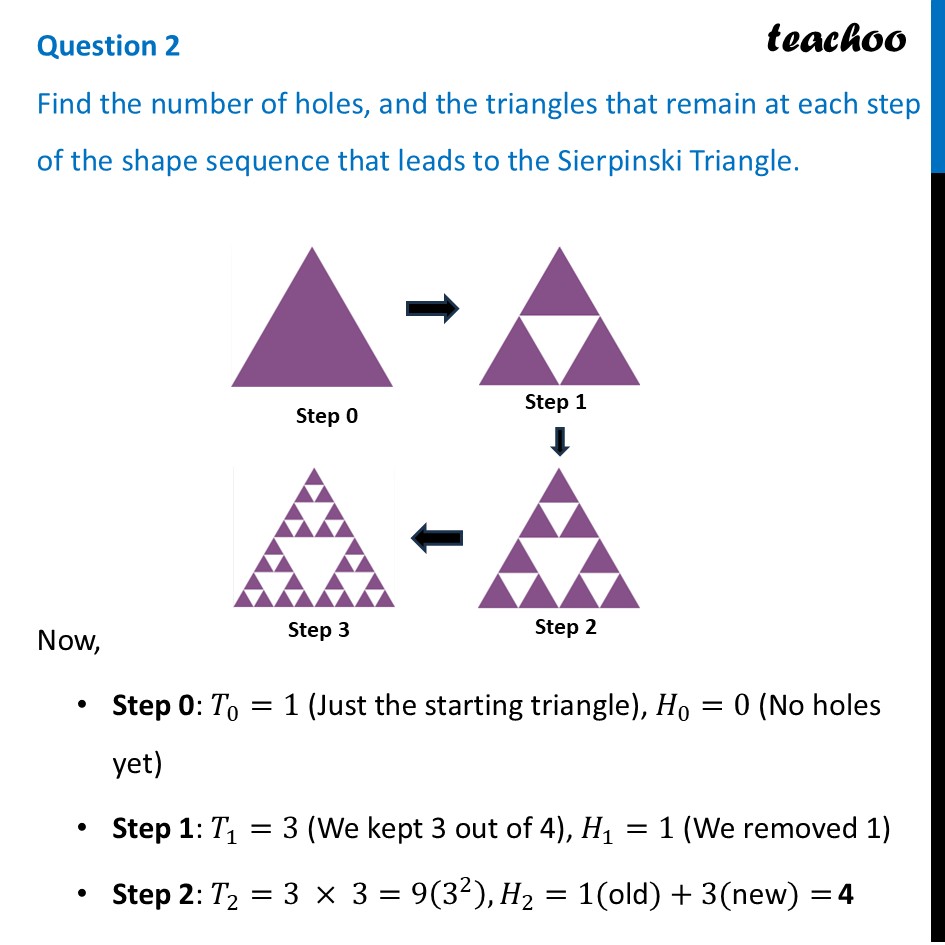

Question 2 Find the number of holes, and the triangles that remain at each step of the shape sequence that leads to the Sierpinski Triangle.Now, Step 0: 𝑇_0=1 (Just the starting triangle), 𝐻_0=0 (No holes yet) Step 1: 𝑇_1=3 (We kept 3 out of 4), 𝐻_1=1 (We removed 1) Step 2: 𝑇_2=3 × 3=9(3^2 ),𝐻_2=1(old)+3(new)= 4 Step 3: 𝑇_3=3 × 3 × 3=27(3^3 ),𝐻_3=1+3+3^2= 13 Thus, Remaining Triangles: 𝑇_𝑛=3^𝑛 Holes: 𝐻_𝑛=𝐻_(𝑛−1)+𝑇_(𝑛−1) (which expands to 1+3+├ 3^2+…+3^(𝑛−1) ) The Formulas Thus, Remaining Triangles: 𝑇_𝑛=3^𝑛 Holes: 𝐻_𝑛=𝐻_(𝑛−1)+𝑇_(𝑛−1) (which expands to 1+3+├ 3^2+…+3^(𝑛−1) )
