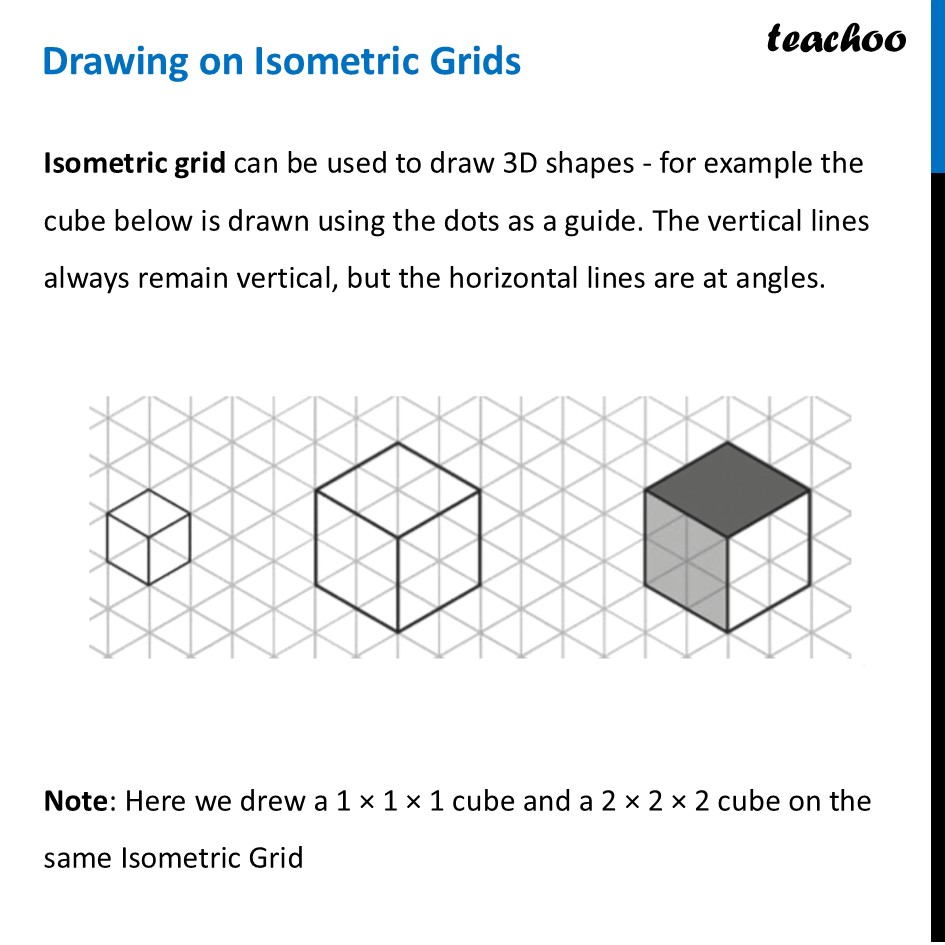

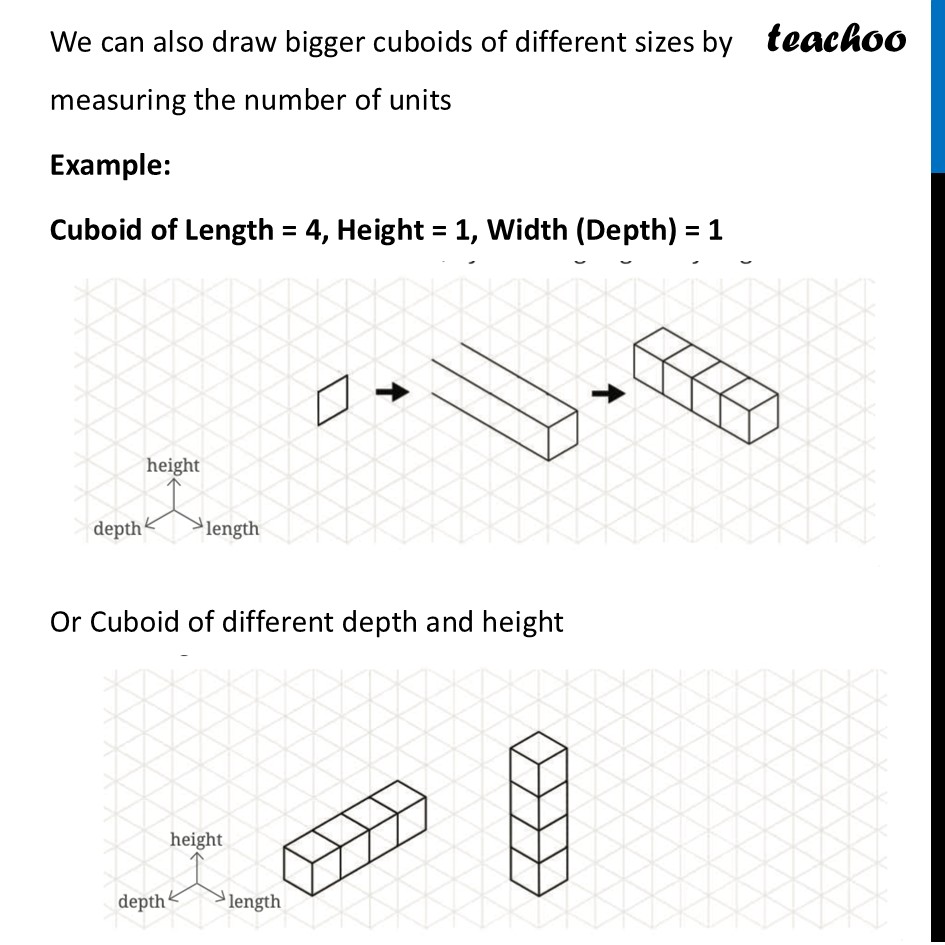

Drawing on Isometric GridsIsometric grid can be used to draw 3D shapes - for example the cube below is drawn using the dots as a guide. The vertical lines always remain vertical, but the horizontal lines are at angles. Note: Here we drew a 1 × 1 × 1 cube and a 2 × 2 × 2 cube on the same Isometric Grid We can also draw bigger cuboids of different sizes by measuring the number of units Example: Cuboid of Length = 4, Height = 1, Width (Depth) = 1 Or Cuboid of different depth and height
