Figure it out - Page 160
- Tiling the Entire Plane
Transcript

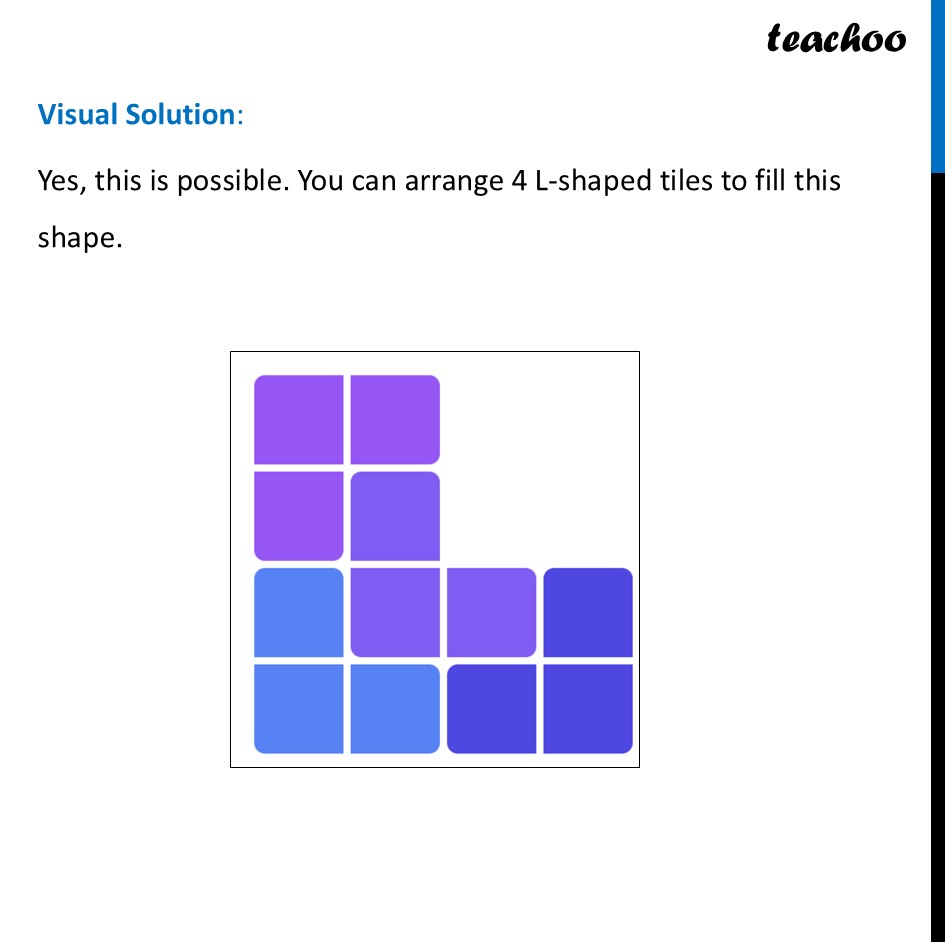

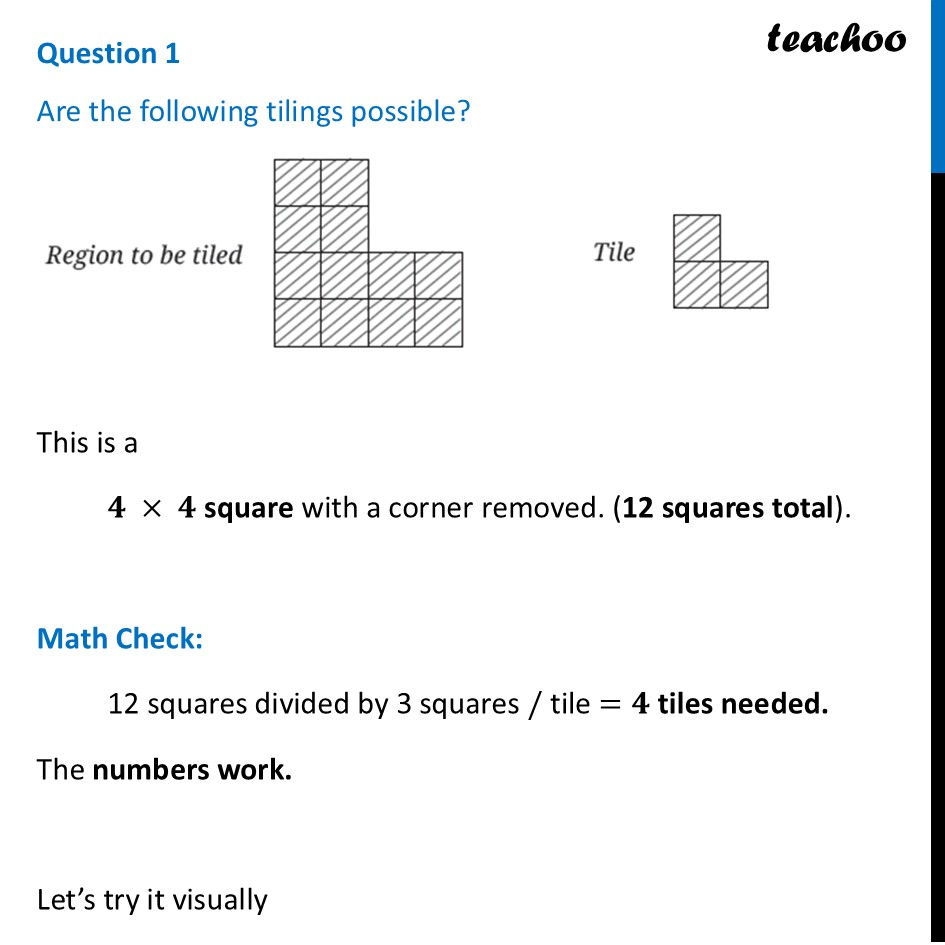

Question 1 Are the following tilings possible?This is a 𝟒 × 𝟒 square with a corner removed. (12 squares total). Math Check: 12 squares divided by 3 squares / tile =𝟒 tiles needed. The numbers work. Let’s try it visually Visual Solution: Yes, this is possible. You can arrange 4 L-shaped tiles to fill this shape.
