Transcript

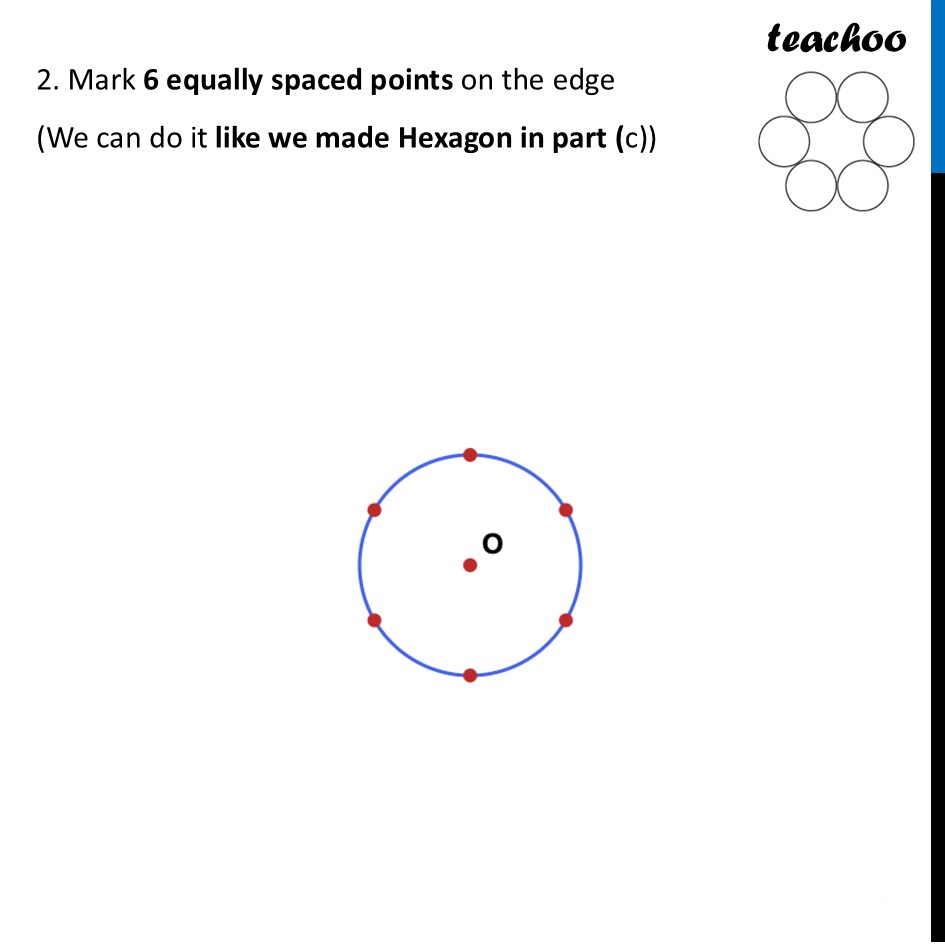

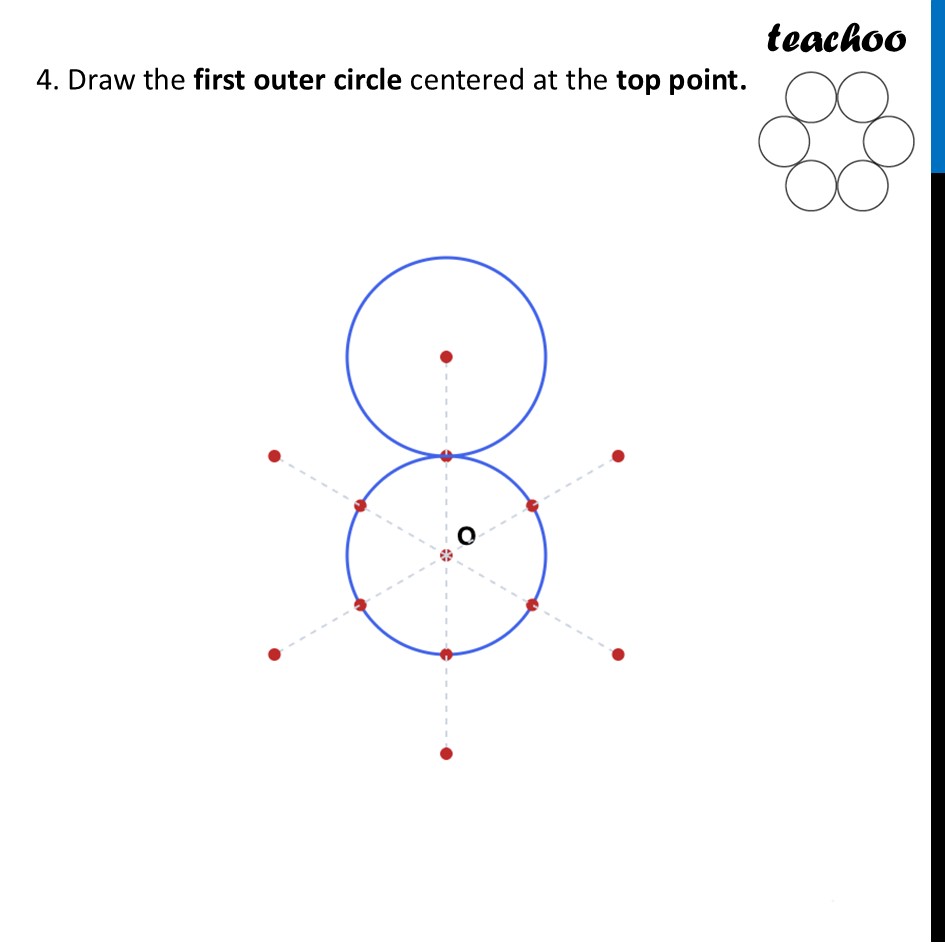

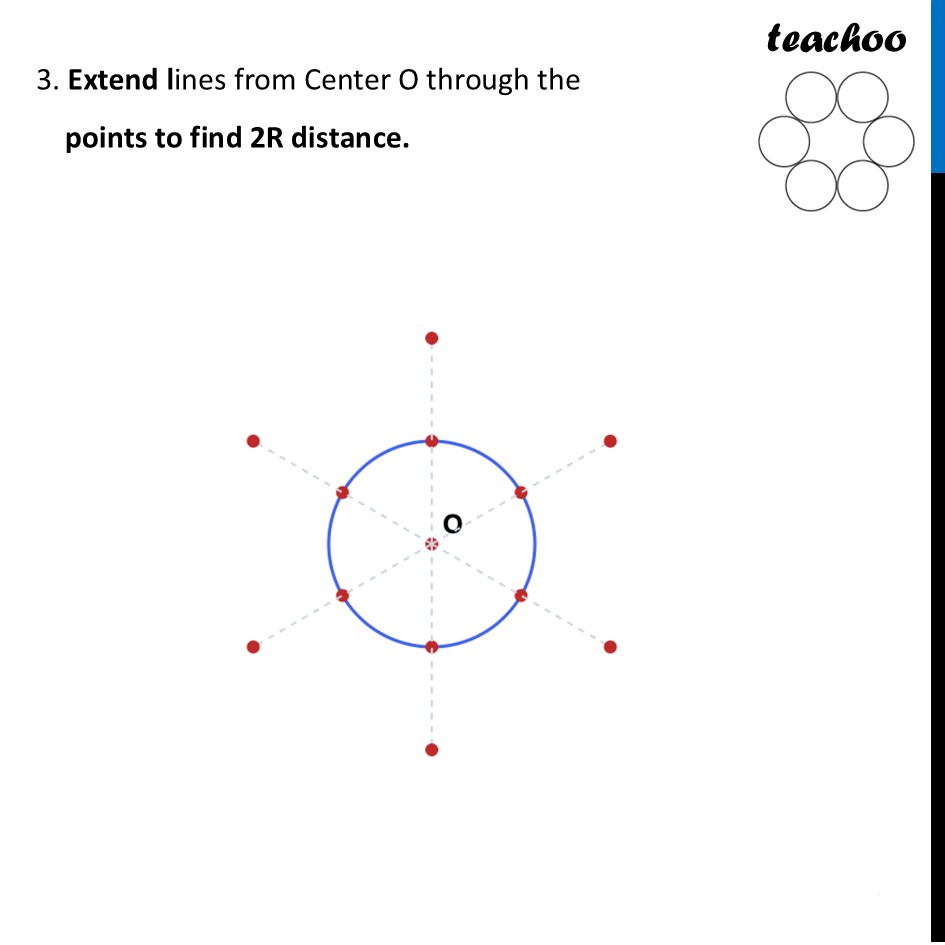

Question 1 (d) Construct the following figures:Alright, let’s do this Steps of Construction Draw the central circle (Radius R) – here R can be any value 2. Mark 6 equally spaced points on the edge (We can do it like we made Hexagon in part (c)) 3. Extend lines from Center O through the points to find 2R distance. 4. Draw the first outer circle centered at the top point. 5. Draw the remaining 5 circles to complete the flower. 6. Erase the middle circle
