Transcript

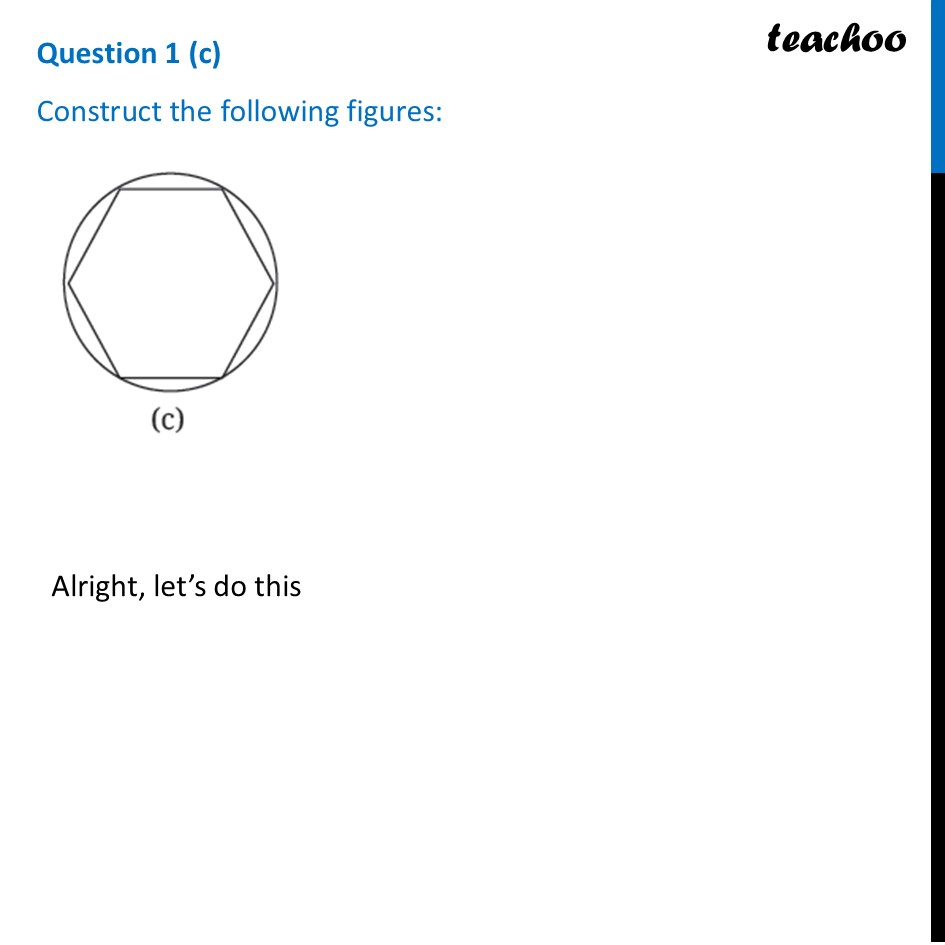

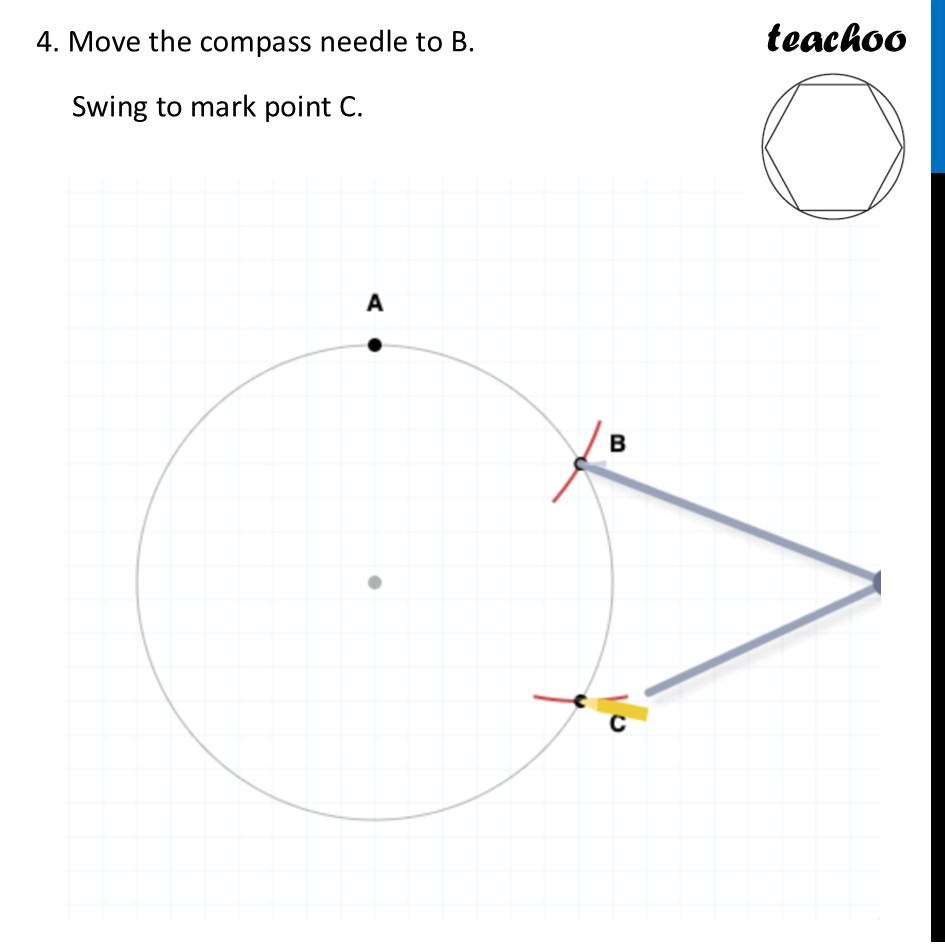

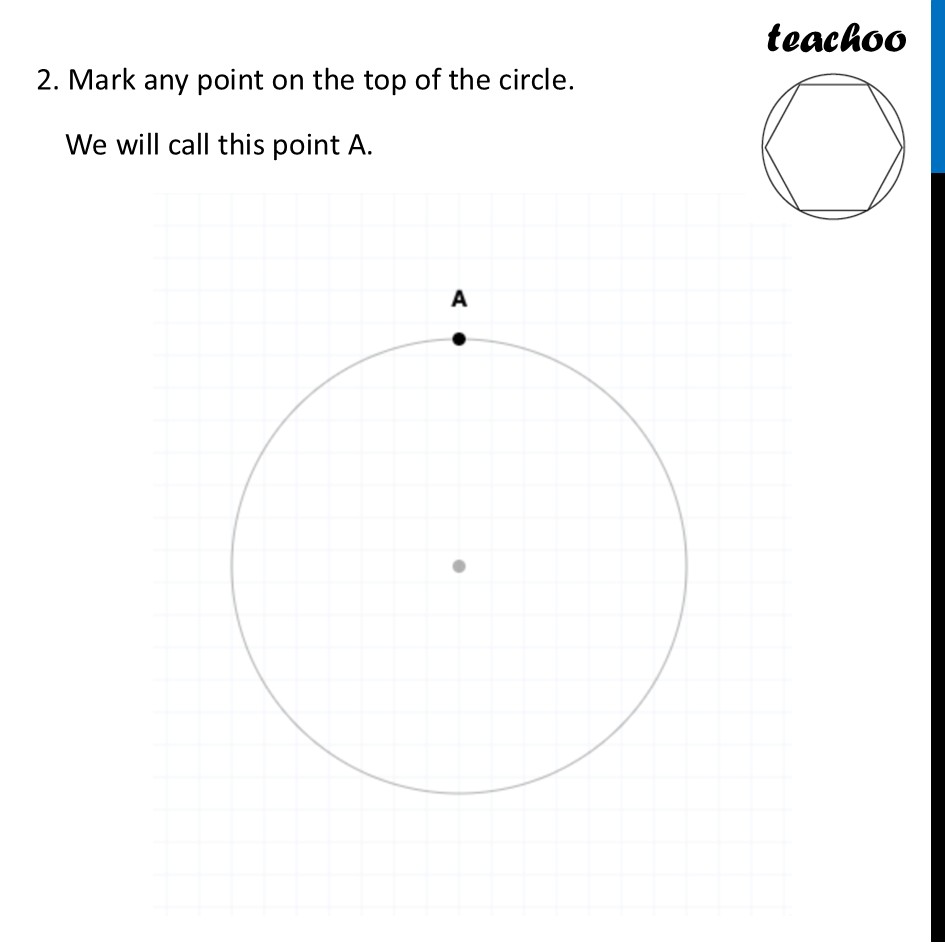

Question 1 (c) Construct the following figures:Alright, let’s do this Steps of Construction We make a circle of radius say 6 cm 2. Mark any point on the top of the circle. We will call this point A. 3. Place the compass needle on A. With the SAME RADIUS 6 cm, swing the pencil to mark the next point (B). 4. Move the compass needle to B. Swing to mark point C. 5. Continue walking the compass around the circle to mark D, E, and F. 6. Join AB with a straight line. Similarly, join BC, CD, DE, EF, FAThus, our figure is made
