Constructing 30° Angle
Last updated at February 6, 2026 by Teachoo
Constructing Regular Hexagon, Angle 60° and 6-pointed Star
Class 7 (Ganita Prakash 1, 2 & old NCERT)
Chapter 6 Class 7 - Constructions and Tilings (Ganita Prakash II)
- Constructing an Eye
- Constructing a Perpendicular Bisector
- Constructing angle 90°
- Construction Methods in Śulba-Sūtras
- Constructing Angle Bisectors
- Figure it out - Pag 144, 145
- Constructing Copy of an Angle
- Construction of a Line Parallel to the Given Line
- Constructing Arch Designs
-
Constructing Regular Hexagon, Angle 60° and 6-pointed Star
- Figure it out - Pag 154, 155
- Tangrams
- Tiling
- Figure it out - Page 160
- Tiling the Entire Plane
Transcript

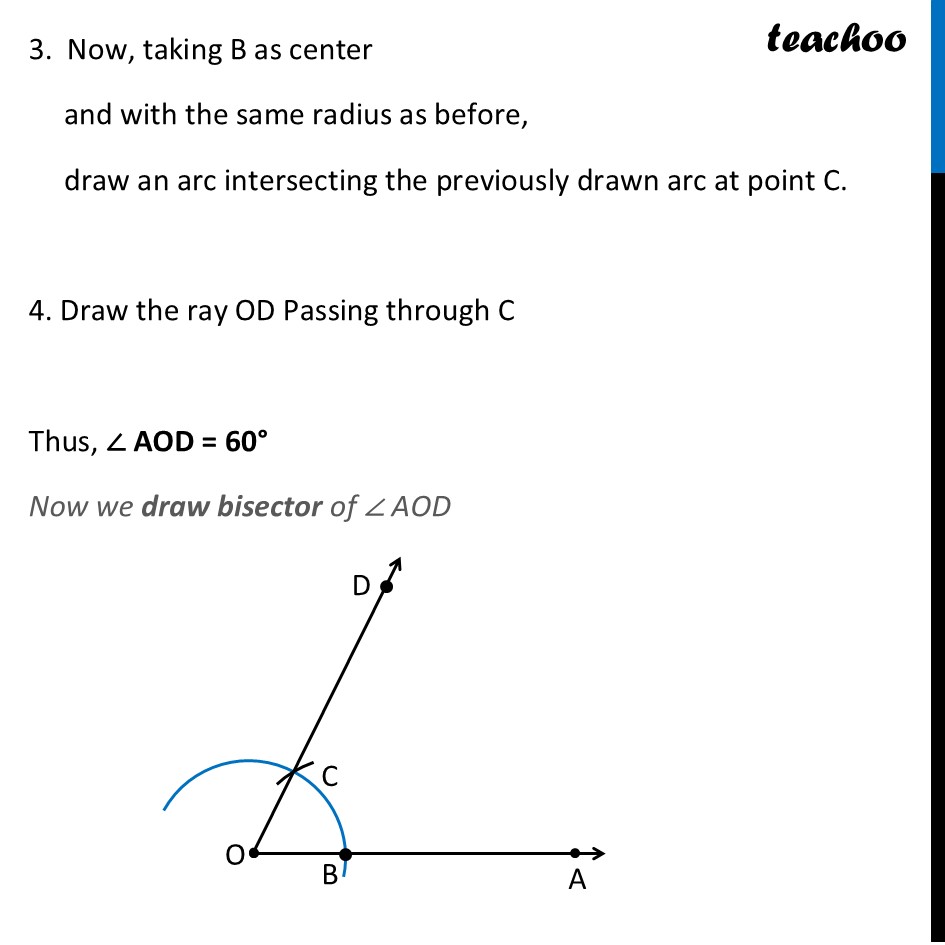

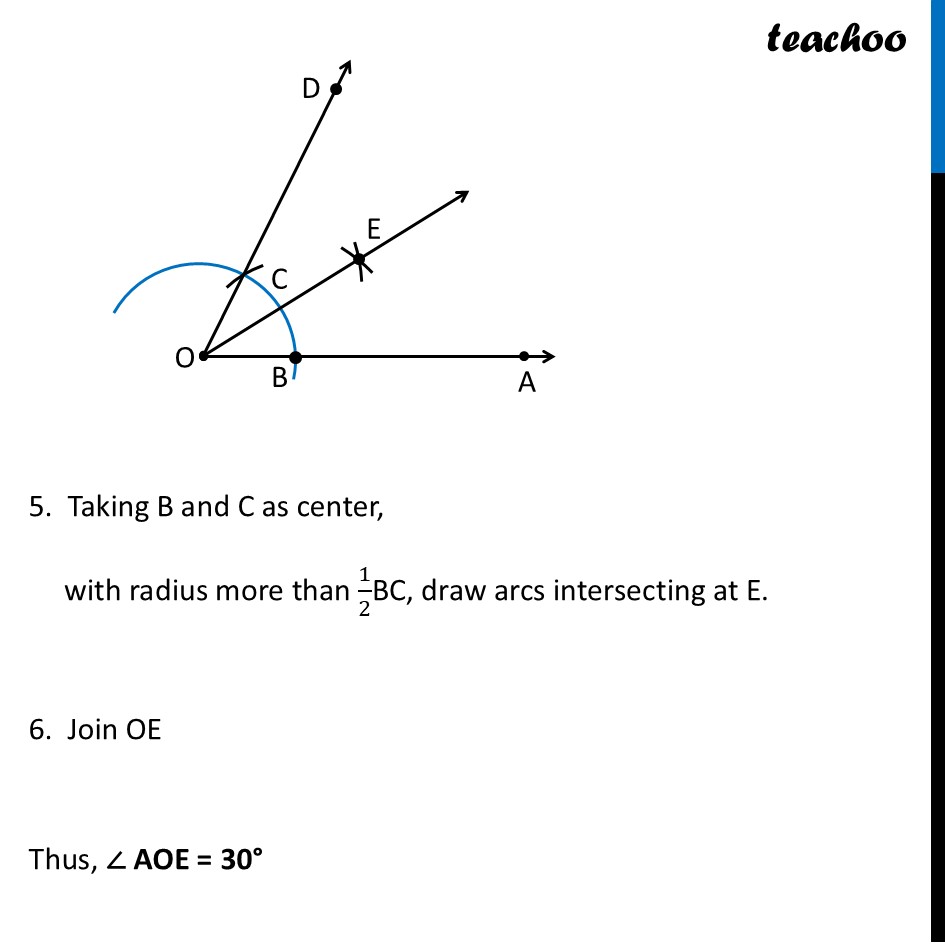

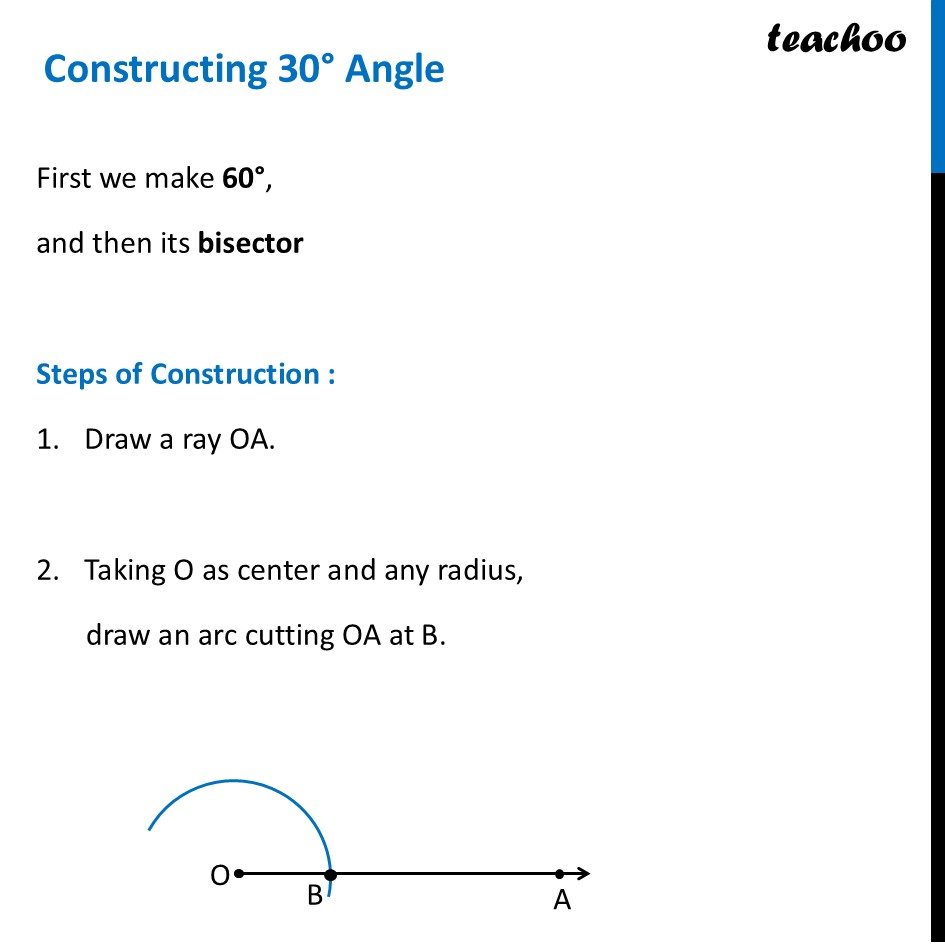

Constructing 30° Angle First we make 60°, and then its bisector Steps of Construction : Draw a ray OA. Taking O as center and any radius, draw an arc cutting OA at B. 3. Now, taking B as center and with the same radius as before, draw an arc intersecting the previously drawn arc at point C. 4. Draw the ray OD Passing through C Thus, ∠ AOD = 60° Now we draw bisector of ∠ AOD 5. Taking B and C as center, with radius more than 1/2BC, draw arcs intersecting at E. 6. Join OE Thus, ∠ AOE = 30°
