Constructing 60° Angle
Last updated at February 6, 2026 by Teachoo
Constructing Regular Hexagon, Angle 60° and 6-pointed Star
Class 7 (Ganita Prakash 1, 2 & old NCERT)
Chapter 6 Class 7 - Constructions and Tilings (Ganita Prakash II)
- Constructing an Eye
- Constructing a Perpendicular Bisector
- Constructing angle 90°
- Construction Methods in Śulba-Sūtras
- Constructing Angle Bisectors
- Figure it out - Pag 144, 145
- Constructing Copy of an Angle
- Construction of a Line Parallel to the Given Line
- Constructing Arch Designs
-
Constructing Regular Hexagon, Angle 60° and 6-pointed Star
- Figure it out - Pag 154, 155
- Tangrams
- Tiling
- Figure it out - Page 160
- Tiling the Entire Plane
Transcript

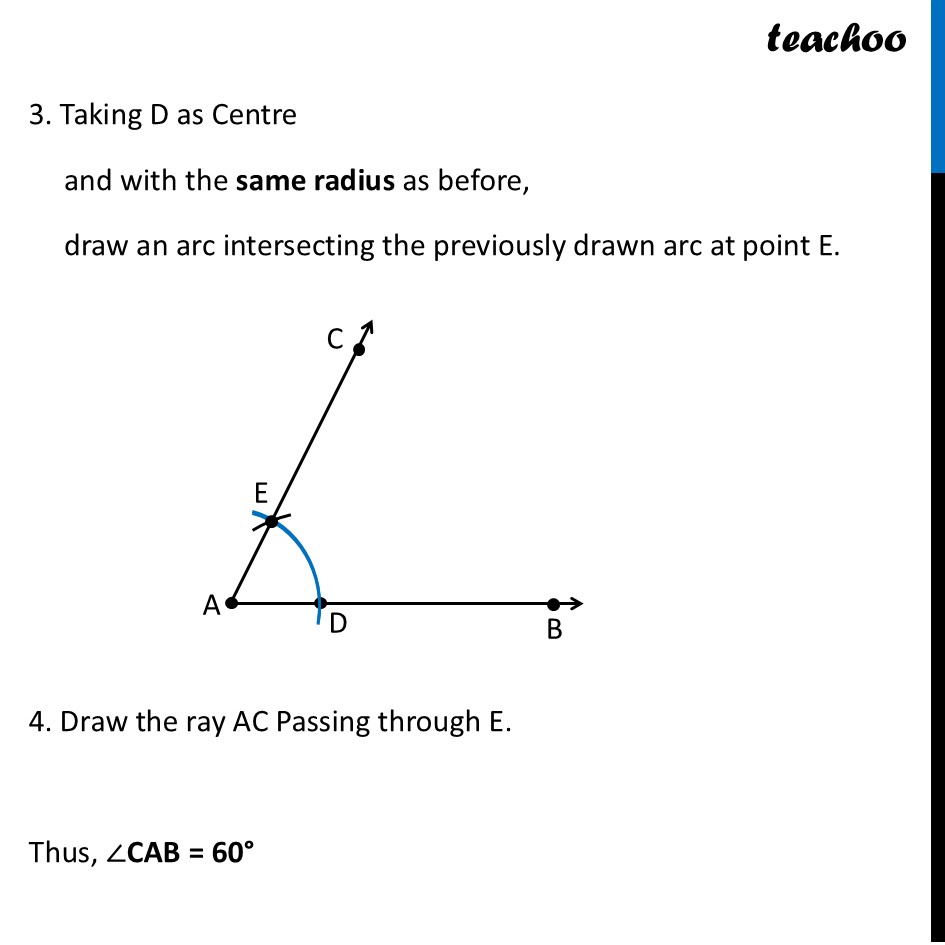

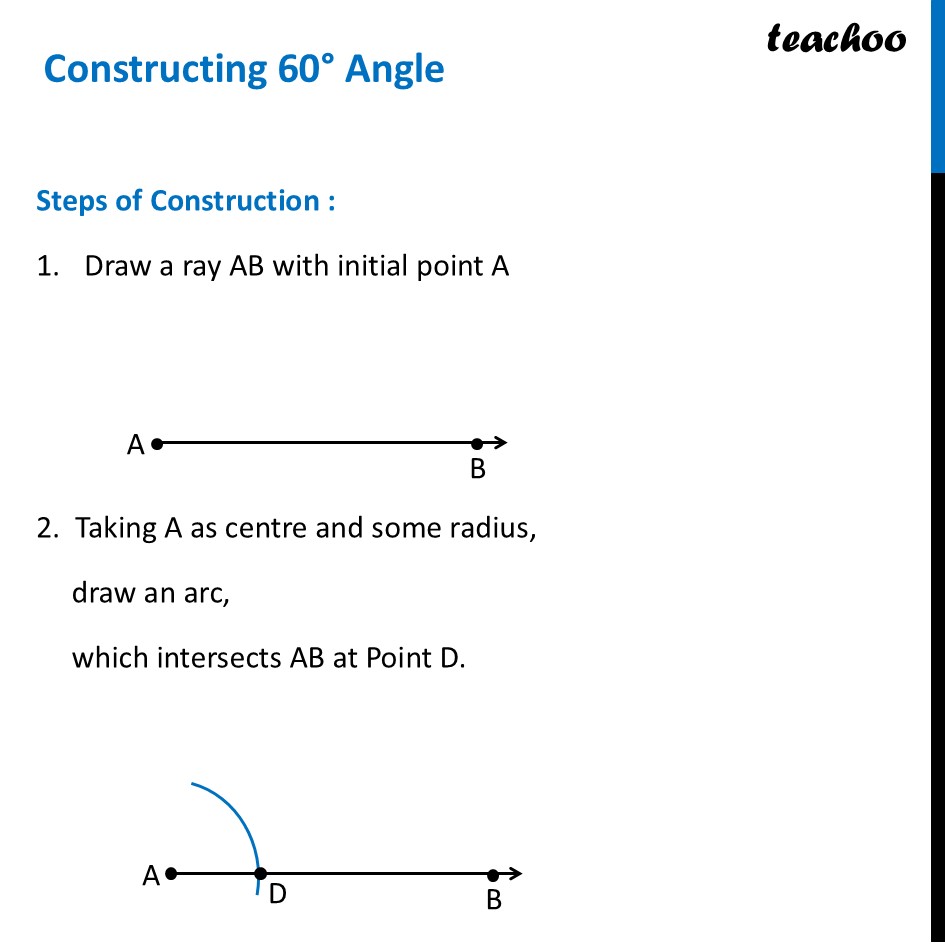

Constructing 60° Angle Steps of Construction : Draw a ray AB with initial point A 2. Taking A as centre and some radius, draw an arc, which intersects AB at Point D. 3. Taking D as Centre and with the same radius as before, draw an arc intersecting the previously drawn arc at point E. 4. Draw the ray AC Passing through E. Thus, ∠CAB = 60°
