Question 1 - Figure it out (Page 148) - Construction of a Line Parallel to the Given Line - Chapter 6 Class 7 - Constructions and Tilings (Ganita Prakash II)
Last updated at February 6, 2026 by Teachoo
Construction of a Line Parallel to the Given Line
Class 7 (Ganita Prakash 1, 2 & old NCERT)
Chapter 6 Class 7 - Constructions and Tilings (Ganita Prakash II)
- Constructing an Eye
- Constructing a Perpendicular Bisector
- Constructing angle 90°
- Construction Methods in Śulba-Sūtras
- Constructing Angle Bisectors
- Figure it out - Pag 144, 145
- Constructing Copy of an Angle
-
Construction of a Line Parallel to the Given Line
- Constructing Arch Designs
- Constructing Regular Hexagon, Angle 60° and 6-pointed Star
- Figure it out - Pag 154, 155
- Tangrams
- Tiling
- Figure it out - Page 160
- Tiling the Entire Plane
Transcript

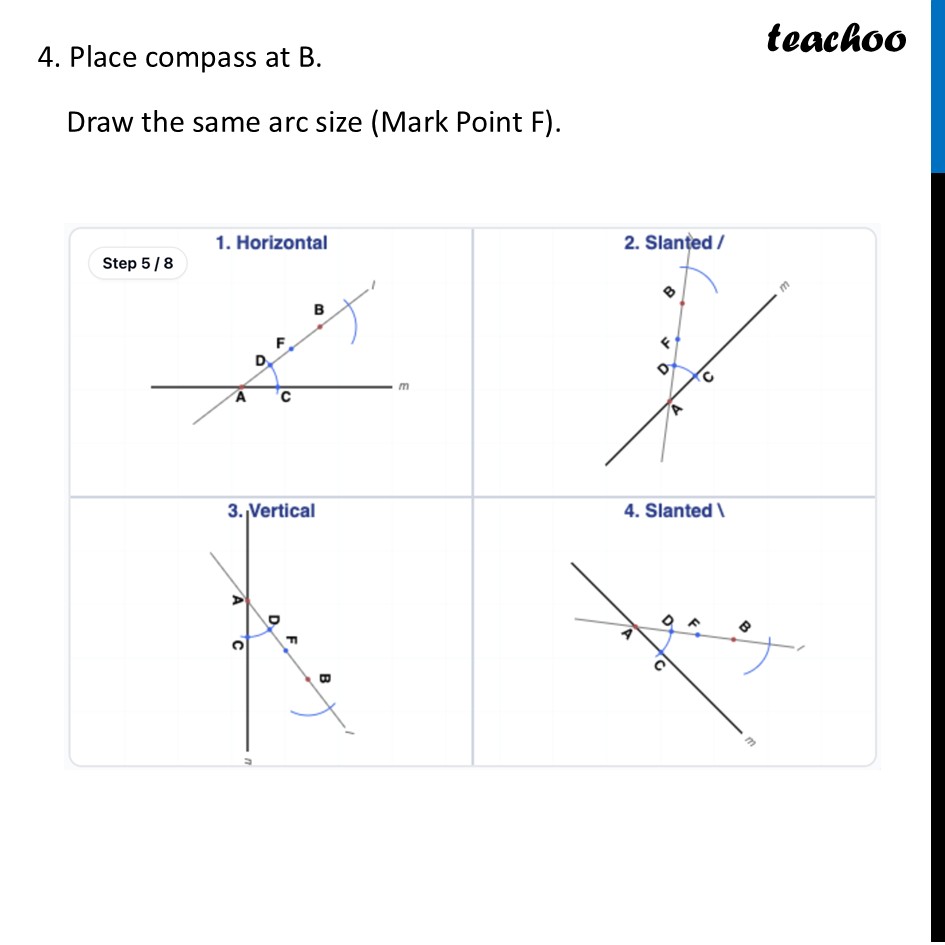

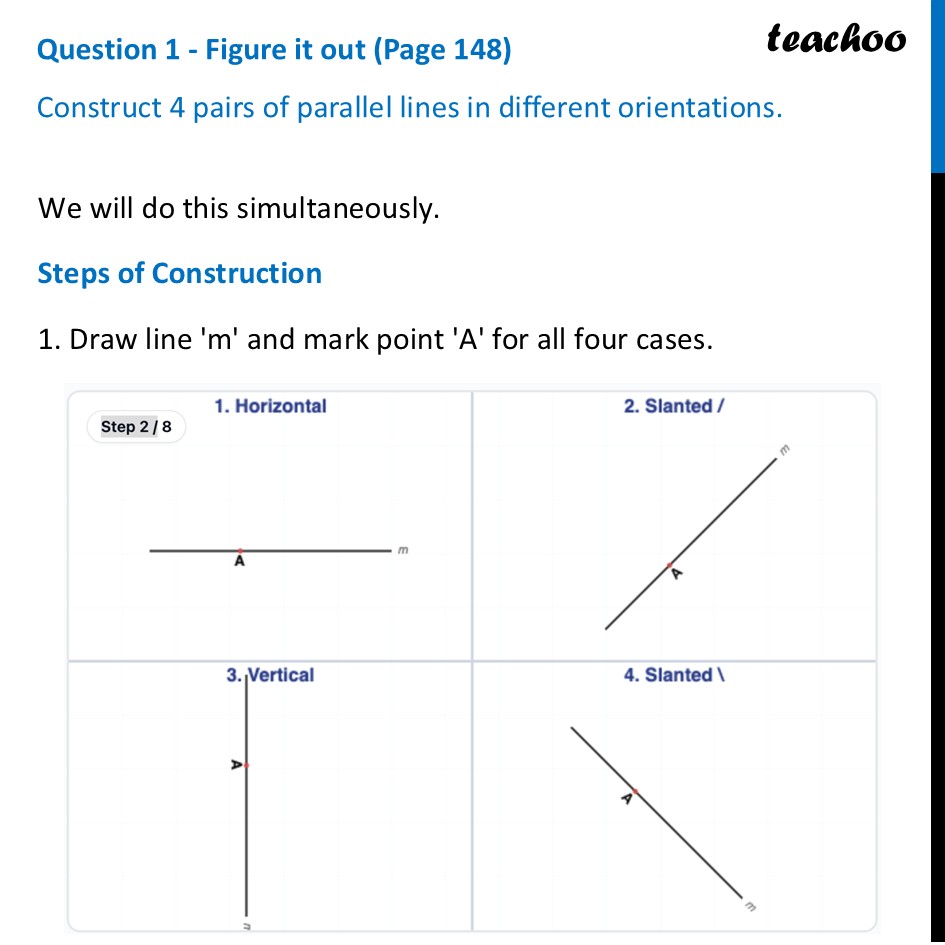

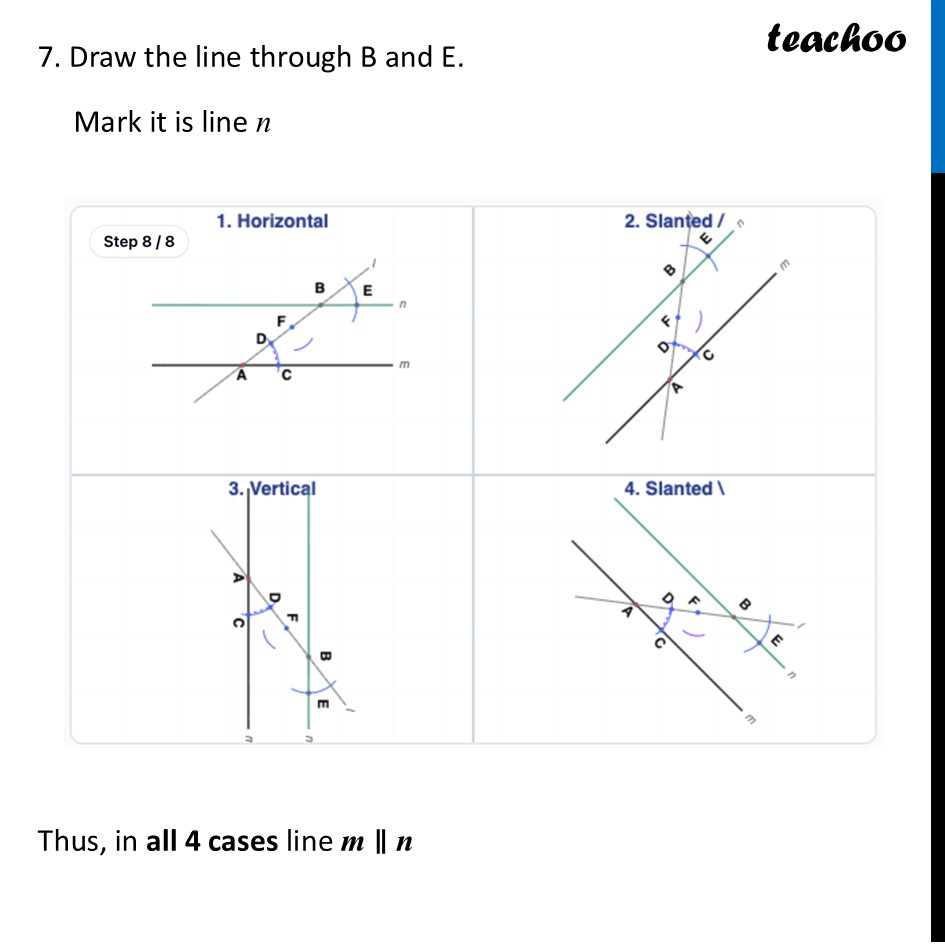

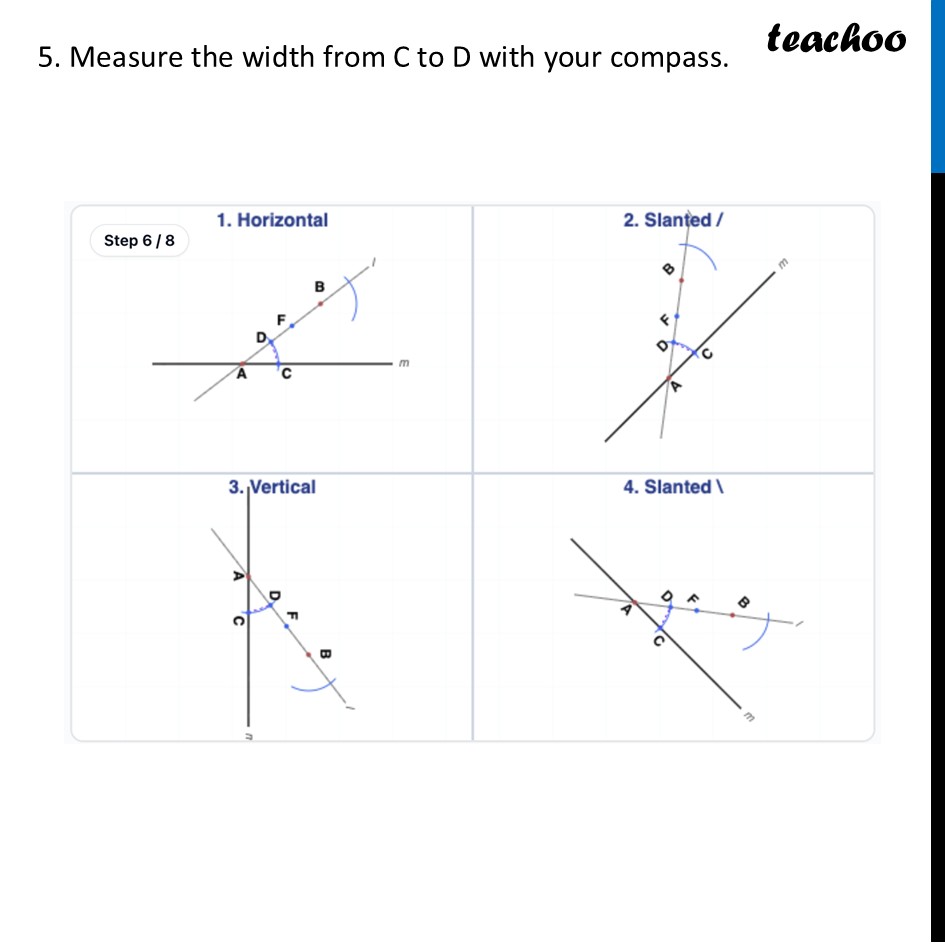

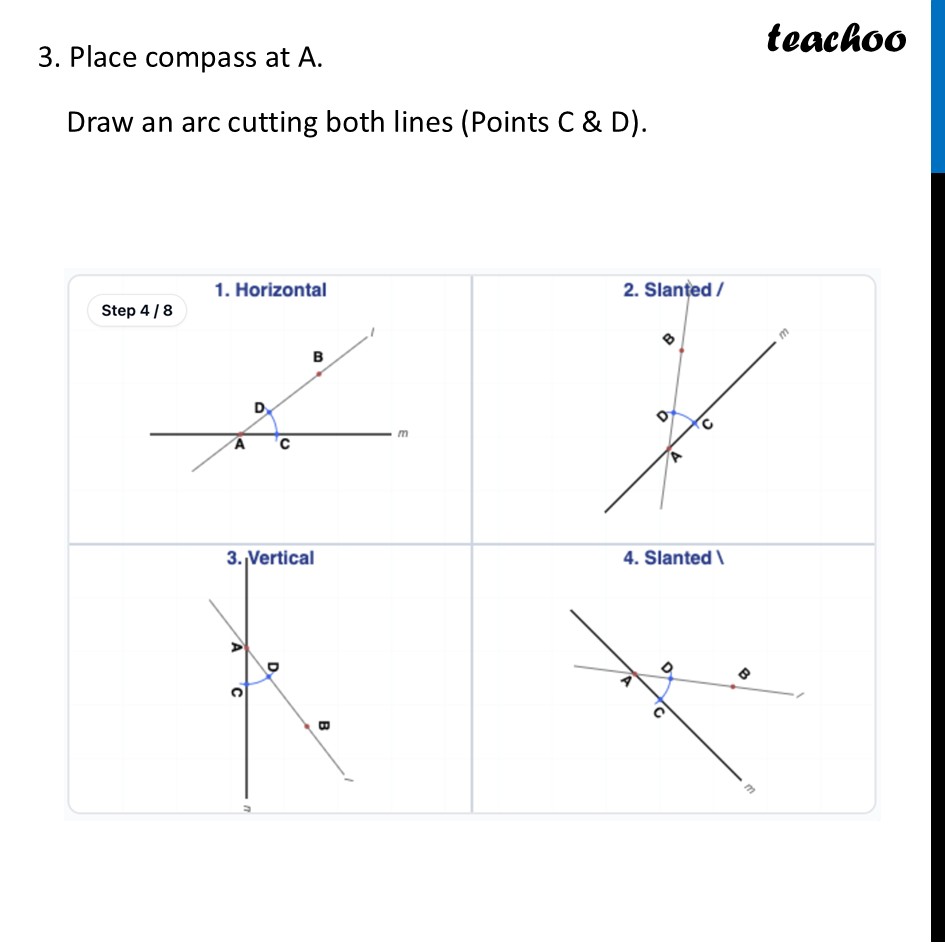

Question 1 - Figure it out (Page 148) Construct 4 pairs of parallel lines in different orientations.We will do this simultaneously. Steps of Construction 1. Draw line 'm' and mark point 'A' for all four cases. 2. Choose point B outside the line. Draw a Transversal l passing through A and B. 3. Place compass at A. Draw an arc cutting both lines (Points C & D). 4. Place compass at B. Draw the same arc size (Mark Point F). 5. Measure the width from C to D with your compass. 6. Transfer that width to the top arc! Mark Point E. 7. Draw the line through B and E. Mark it is line n Thus, in all 4 cases line m ∥ n
