Transcript

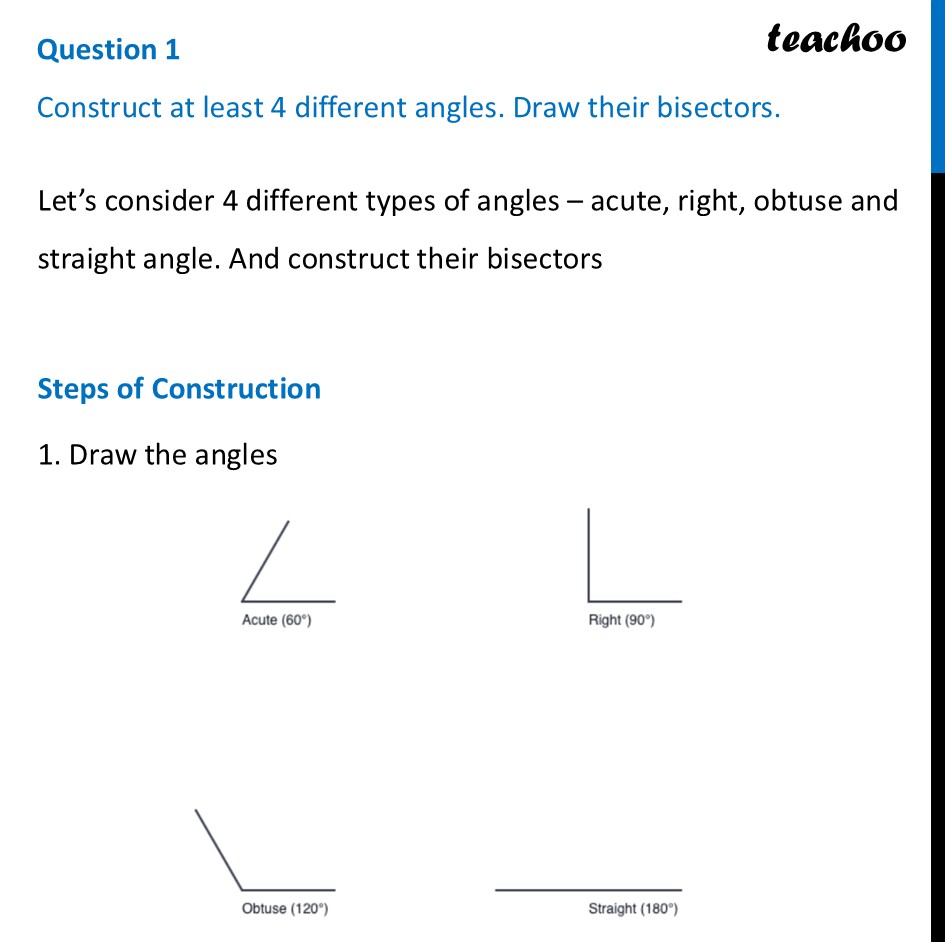

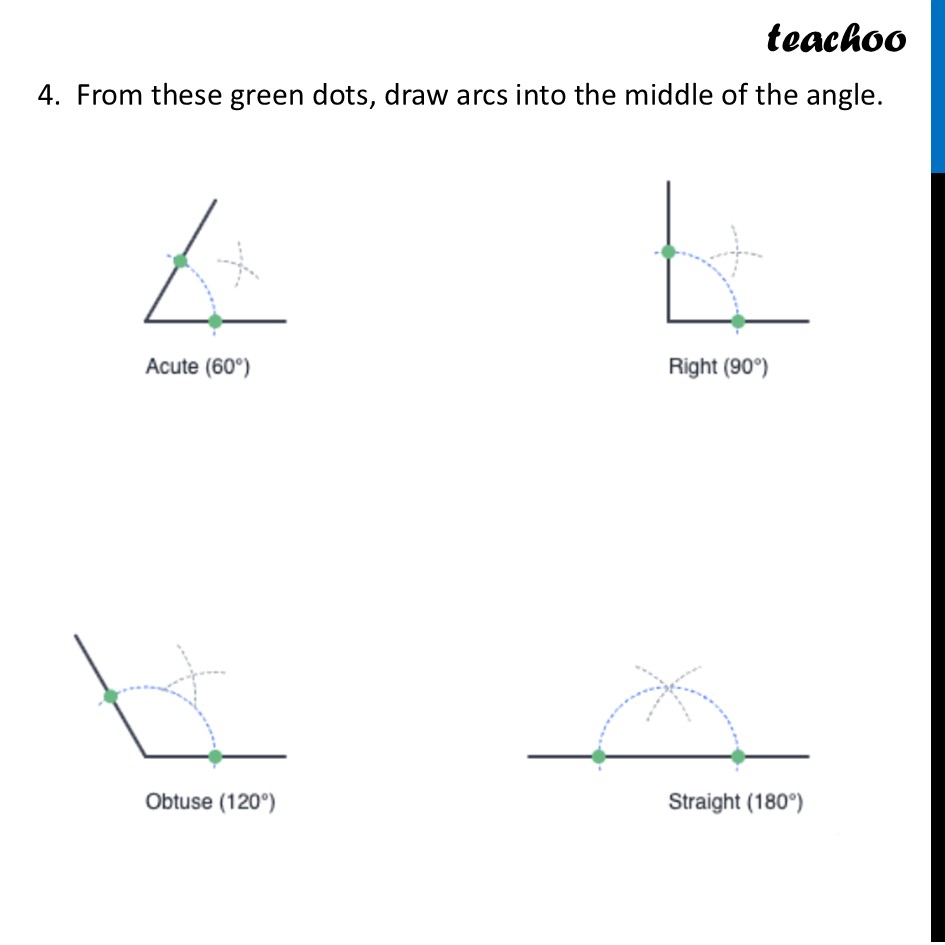

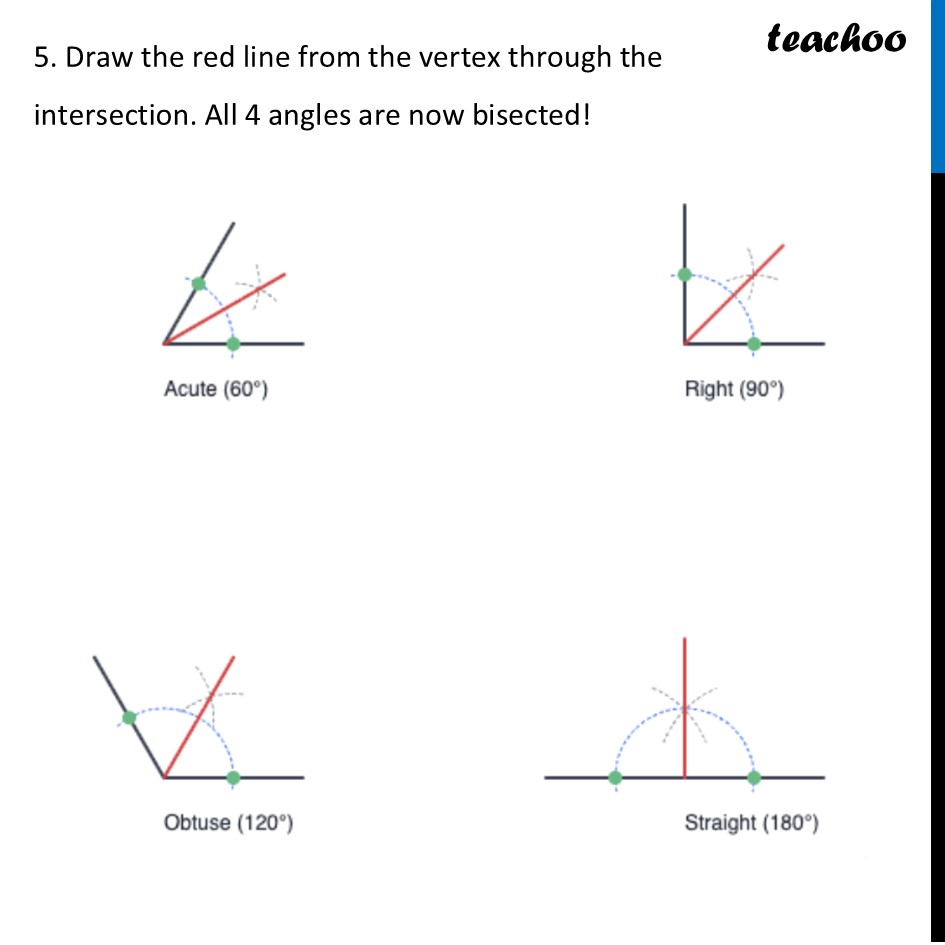

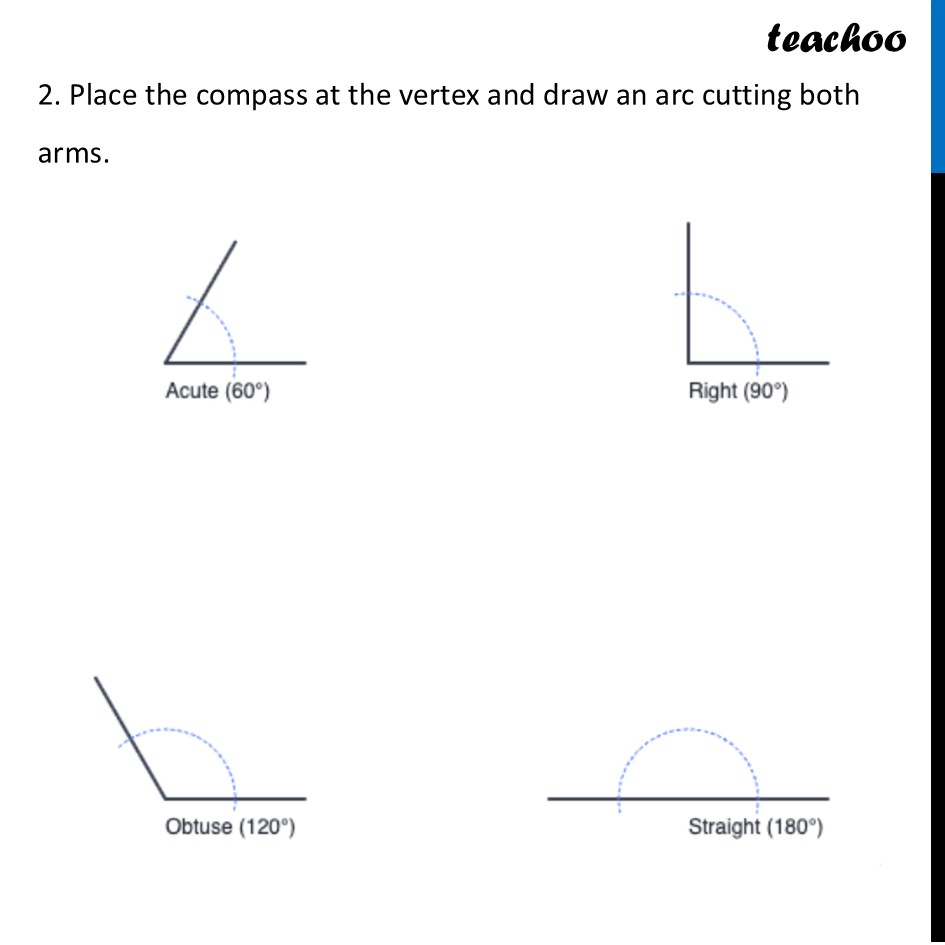

Question 1 Construct at least 4 different angles. Draw their bisectors.Let’s consider 4 different types of angles – acute, right, obtuse and straight angle. And construct their bisectors Steps of Construction 1. Draw the angles 2. Place the compass at the vertex and draw an arc cutting both arms. 3. Mark the intersection points on the arms (green dots). 4. From these green dots, draw arcs into the middle of the angle. 5. Draw the red line from the vertex through the intersection. All 4 angles are now bisected!
