Draw a parallelogram with adjacent sides of lengths 4 cm and 5 cm - Parallelogram

part 2 - Question 1 - Page 96 - Parallelogram - Chapter 4 Class 8 - Quadrilaterals (Ganita Prakash) - Class 8 (Ganita Prakash - 1, 2 & Old NCERT)
part 3 - Question 1 - Page 96 - Parallelogram - Chapter 4 Class 8 - Quadrilaterals (Ganita Prakash) - Class 8 (Ganita Prakash - 1, 2 & Old NCERT) part 4 - Question 1 - Page 96 - Parallelogram - Chapter 4 Class 8 - Quadrilaterals (Ganita Prakash) - Class 8 (Ganita Prakash - 1, 2 & Old NCERT) part 5 - Question 1 - Page 96 - Parallelogram - Chapter 4 Class 8 - Quadrilaterals (Ganita Prakash) - Class 8 (Ganita Prakash - 1, 2 & Old NCERT) part 6 - Question 1 - Page 96 - Parallelogram - Chapter 4 Class 8 - Quadrilaterals (Ganita Prakash) - Class 8 (Ganita Prakash - 1, 2 & Old NCERT)

Remove Ads Take short quiz All Quiz and Worksheets

Transcript

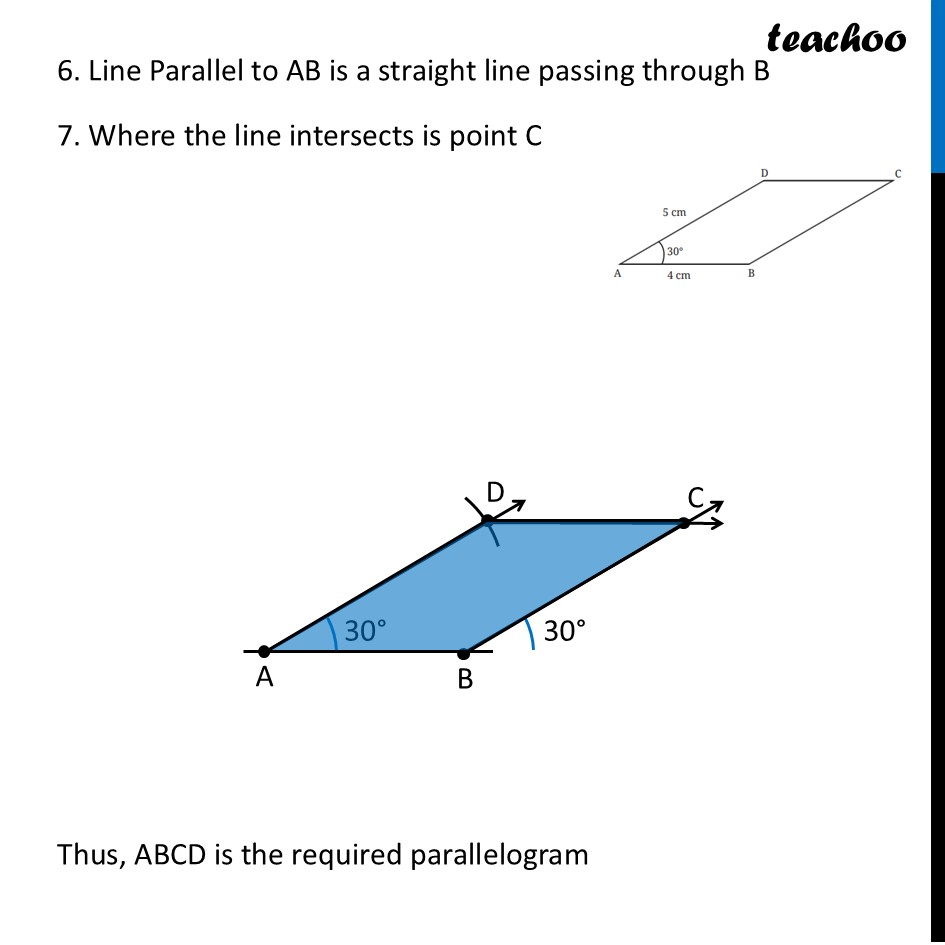

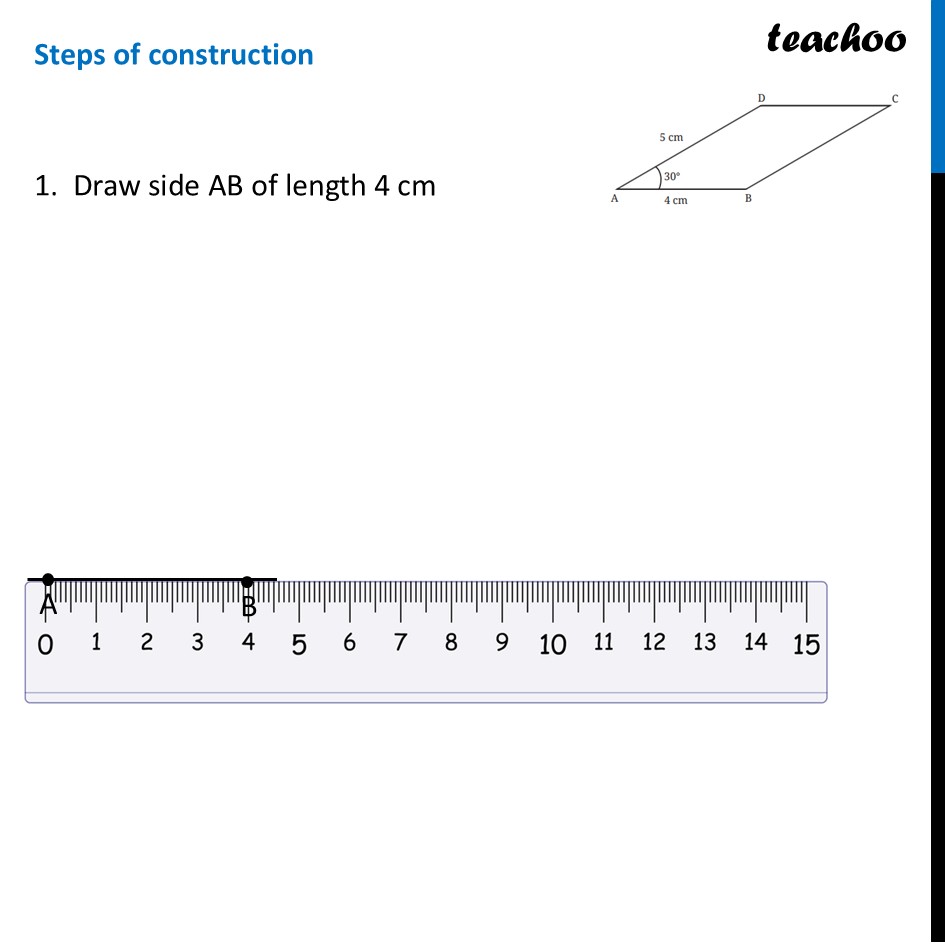

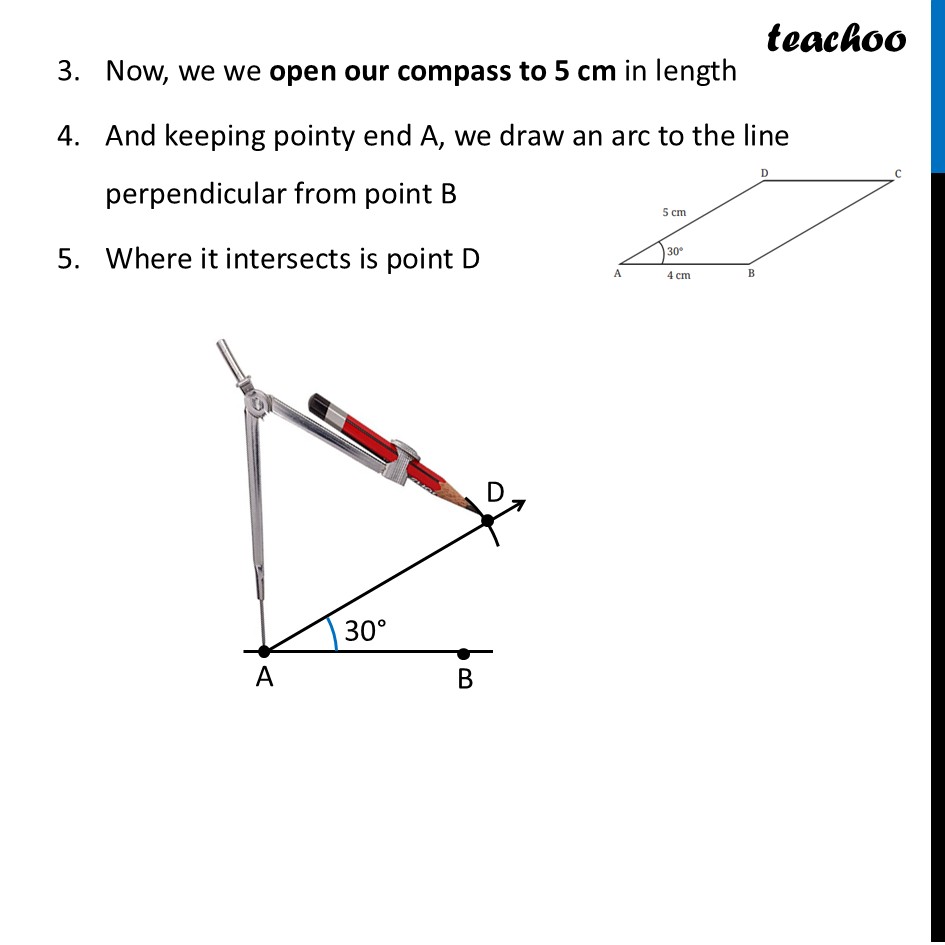

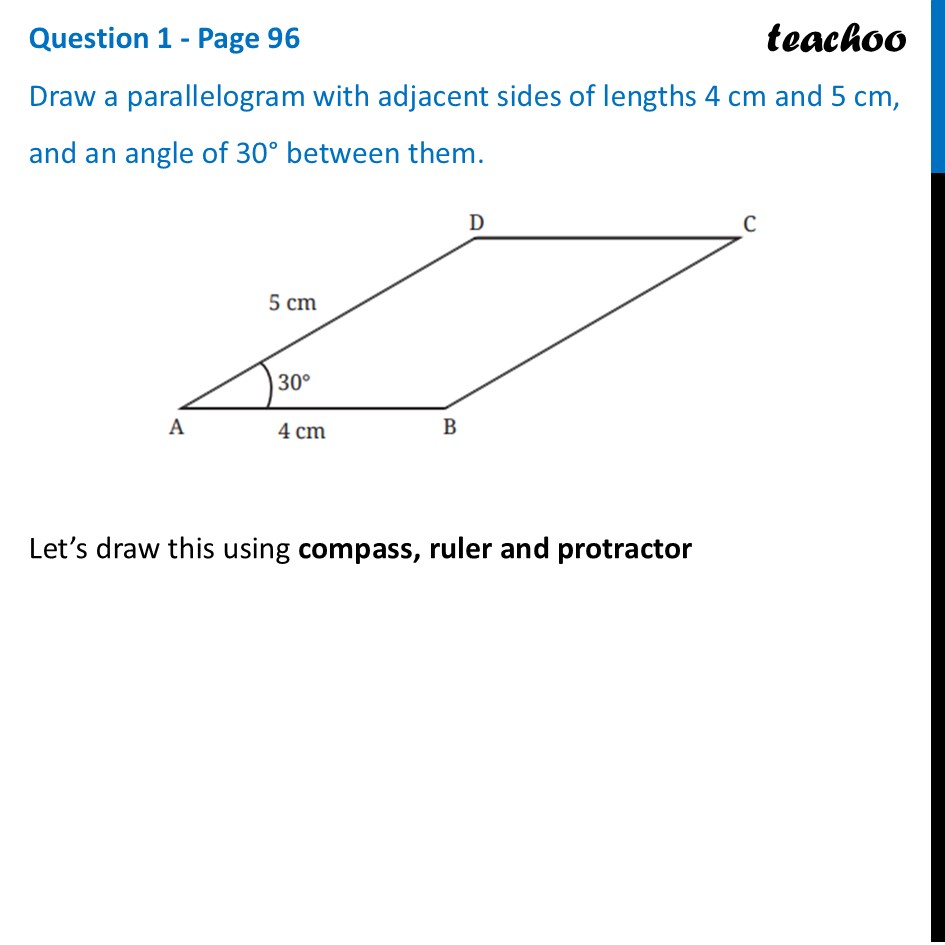

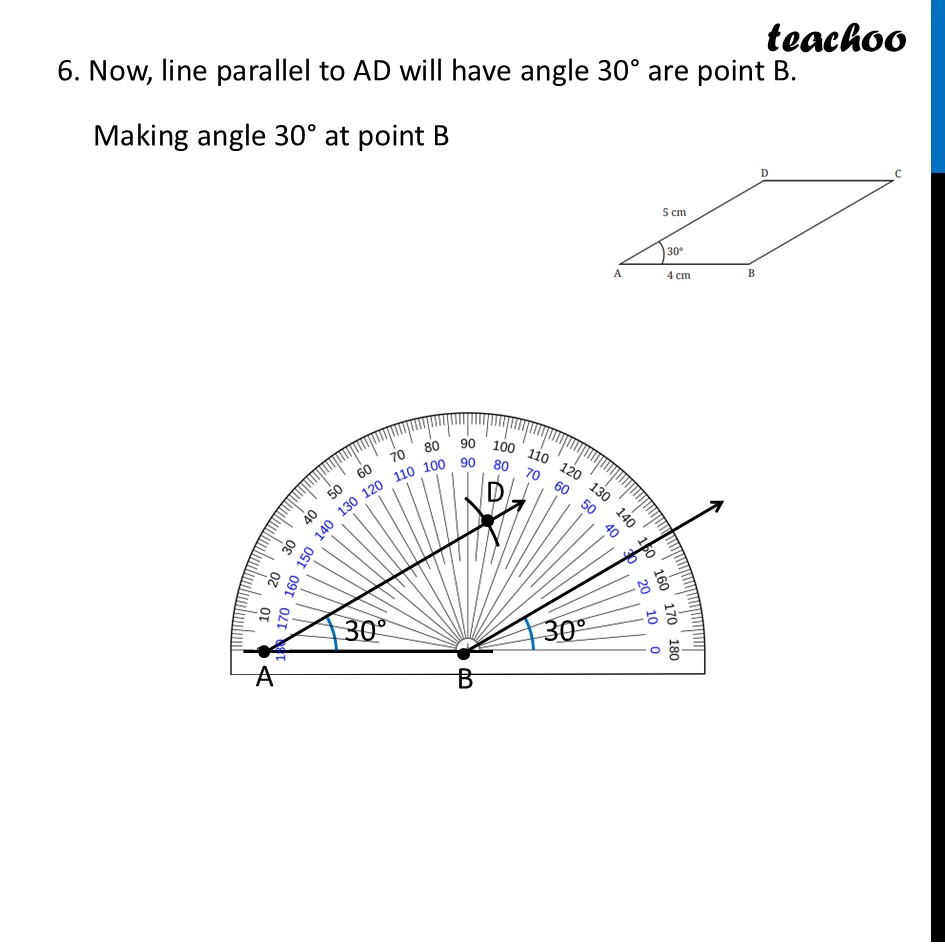

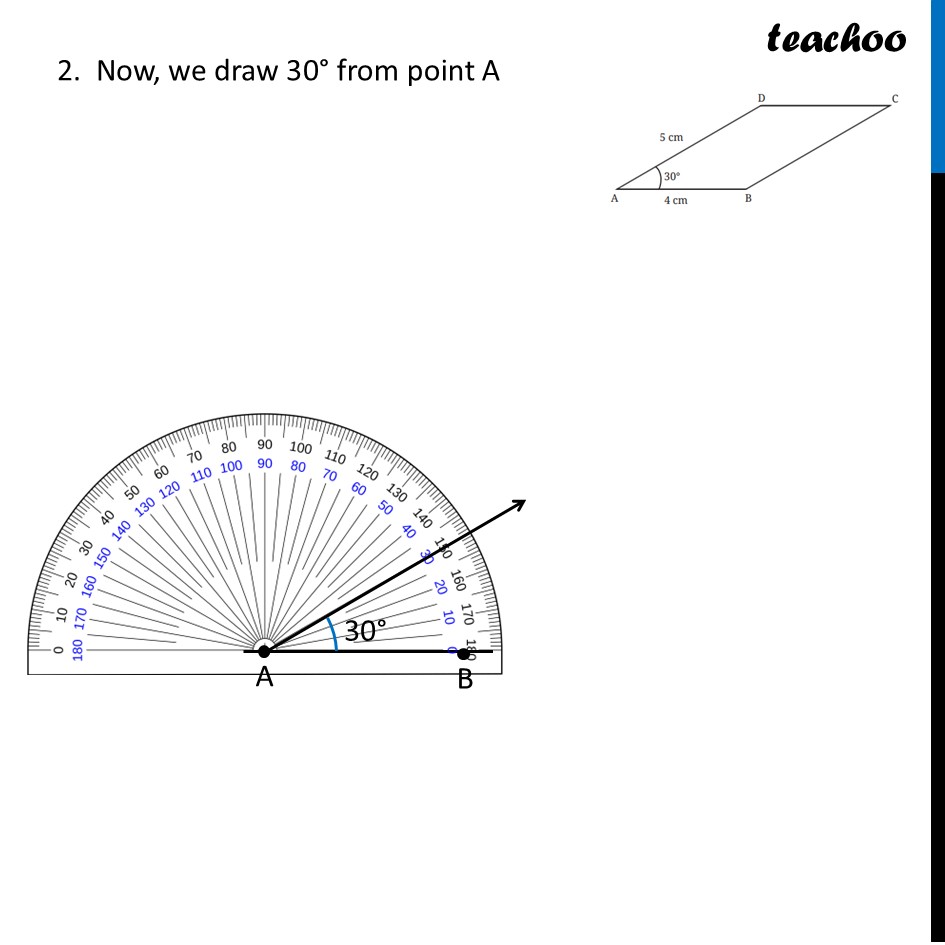

Question 1 - Page 96 Draw a parallelogram with adjacent sides of lengths 4 cm and 5 cm, and an angle of 30° between them.Let’s draw this using compass, ruler and protractor Steps of construction 1. Draw side AB of length 4 cm 2. Now, we draw 30° from point A Now, we we open our compass to 5 cm in length And keeping pointy end A, we draw an arc to the line perpendicular from point B Where it intersects is point D 6. Now, line parallel to AD will have angle 30° are point B. Making angle 30° at point B 6. Line Parallel to AB is a straight line passing through B 7. Where the line intersects is point C Thus, ABCD is the required parallelogram
