Constructing Squares
Last updated at November 5, 2025 by Teachoo
Class 6 (Ganita Prakash & Old NCERT)
Chapter 8 Class 6 - Playing with Constructions (Ganita Prakash)
- Introduction
- Constructing Circle, Person, Waves, Eyes
- Figure it out - Page 191
- Constructing Squares & Rectangles
- Figure it out - Page 194
-
Constructing Squares & Rectangles
- An Exploration in Rectangles
- Construct Breaking Rectangles
- Questions - Page 201 to 203
- Diagonals of Rectangles and Squares
- Constructing Rectangles & Squares with Diagonals
- Construction Questions - Page 211
- Constructing a House (with Questions)
Transcript

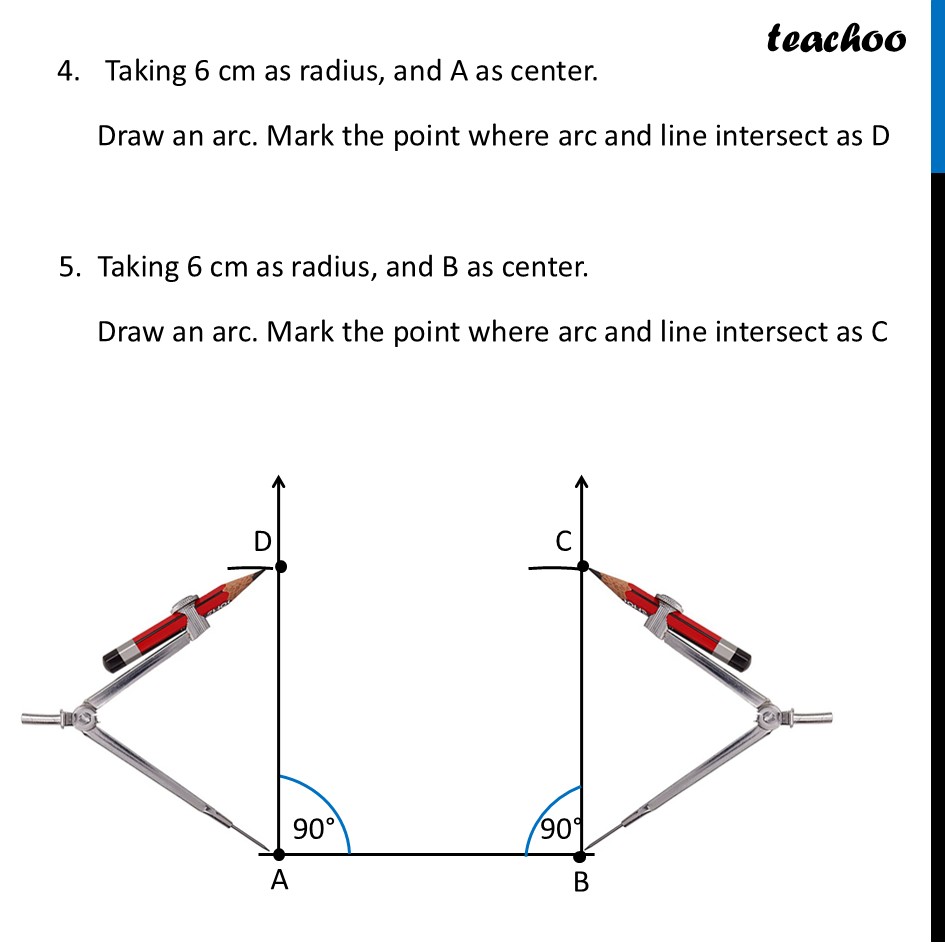

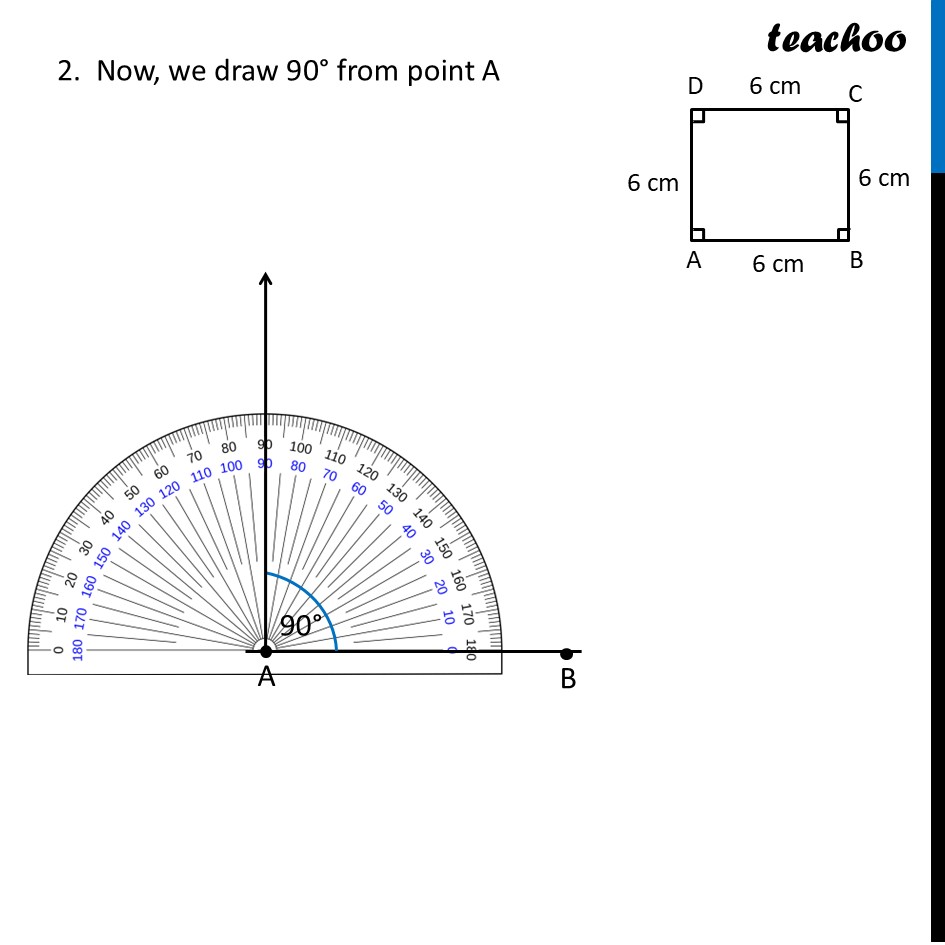

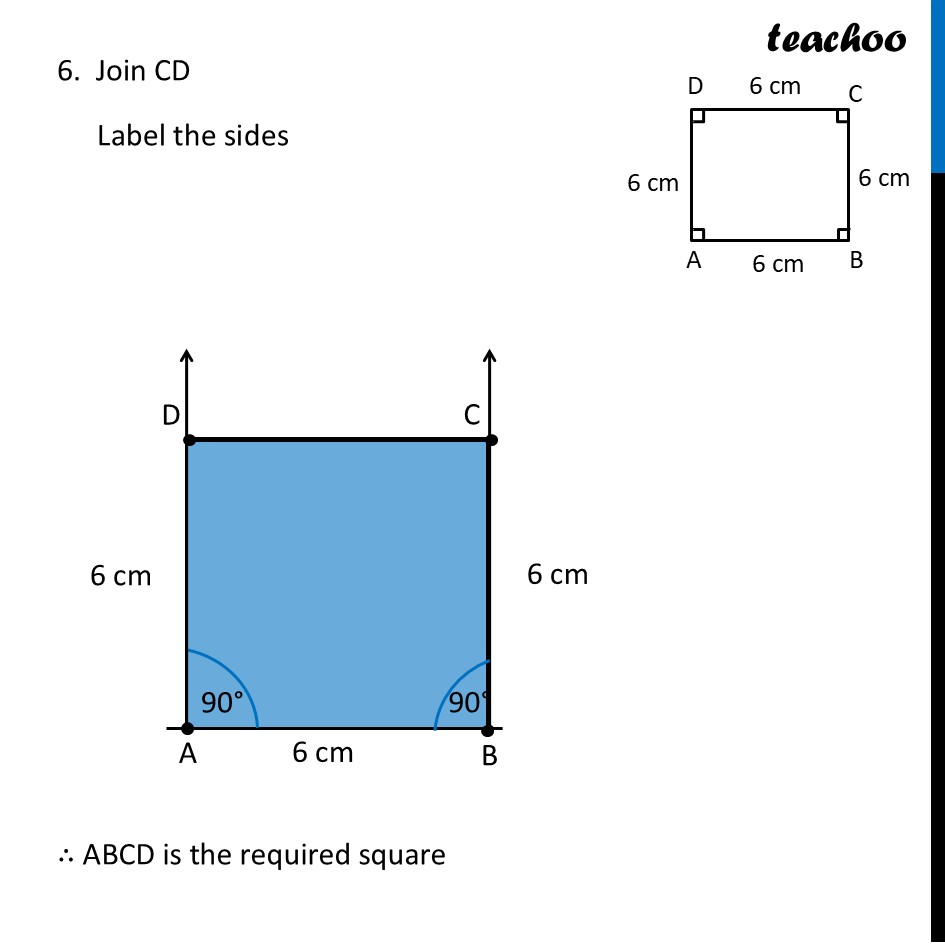

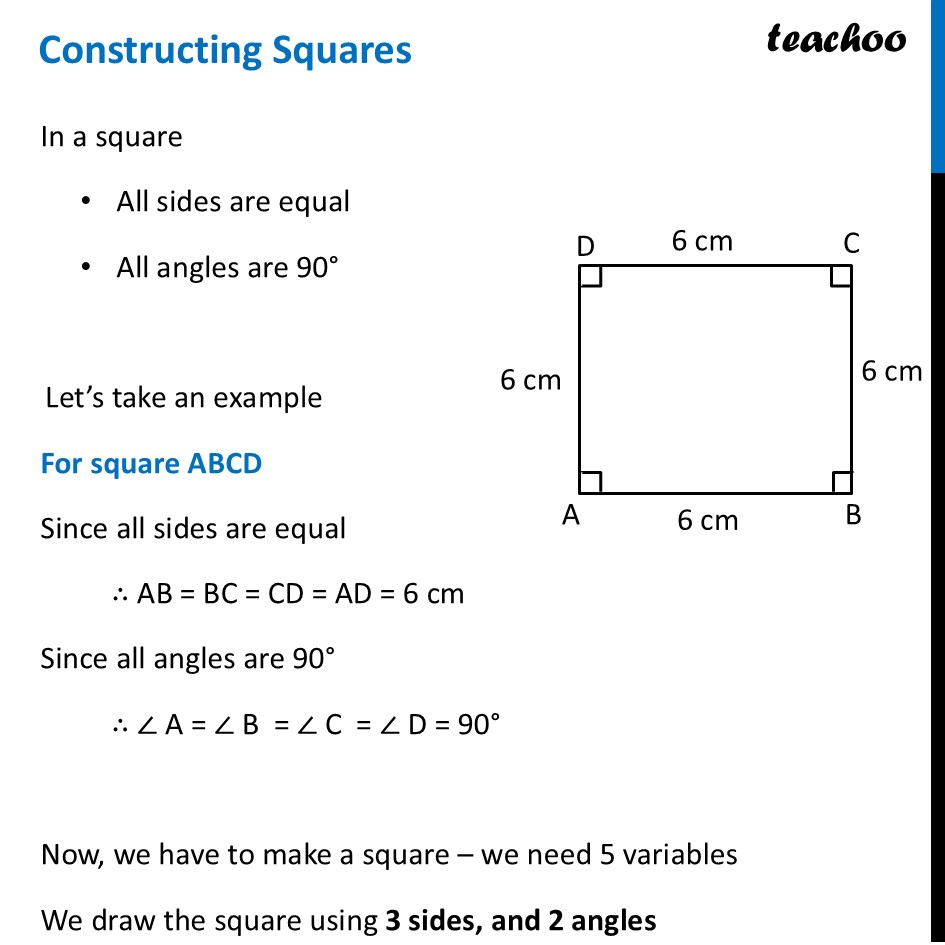

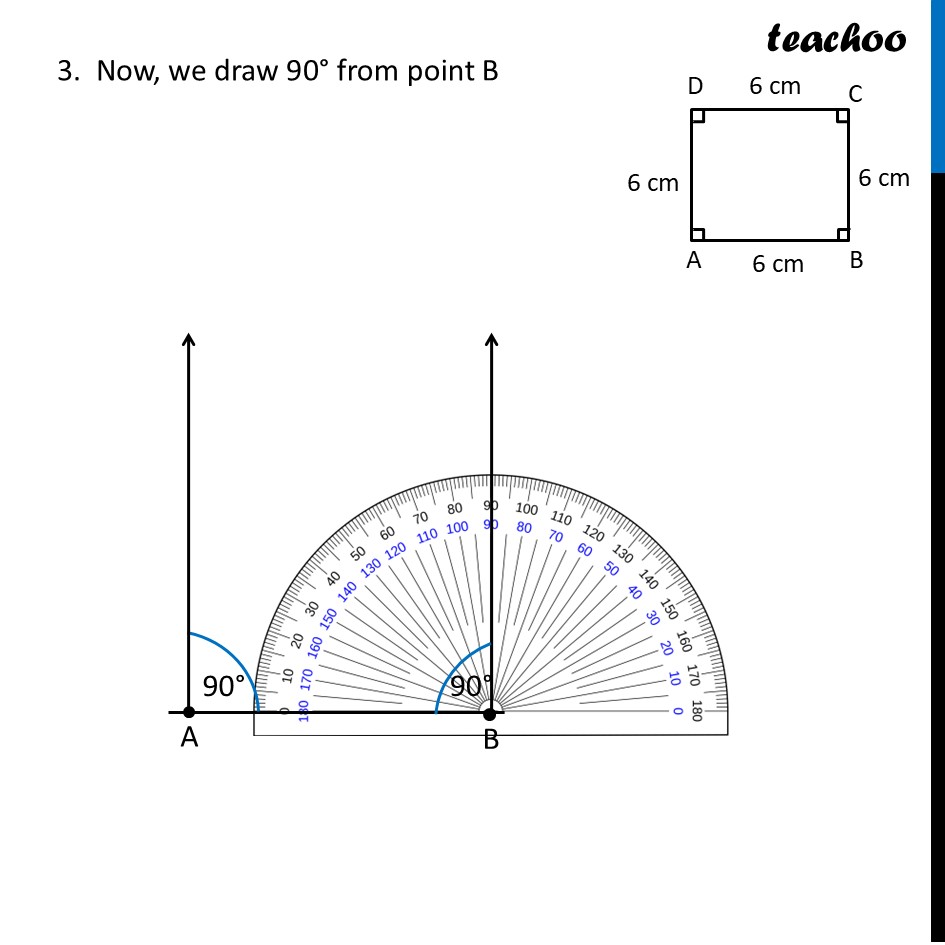

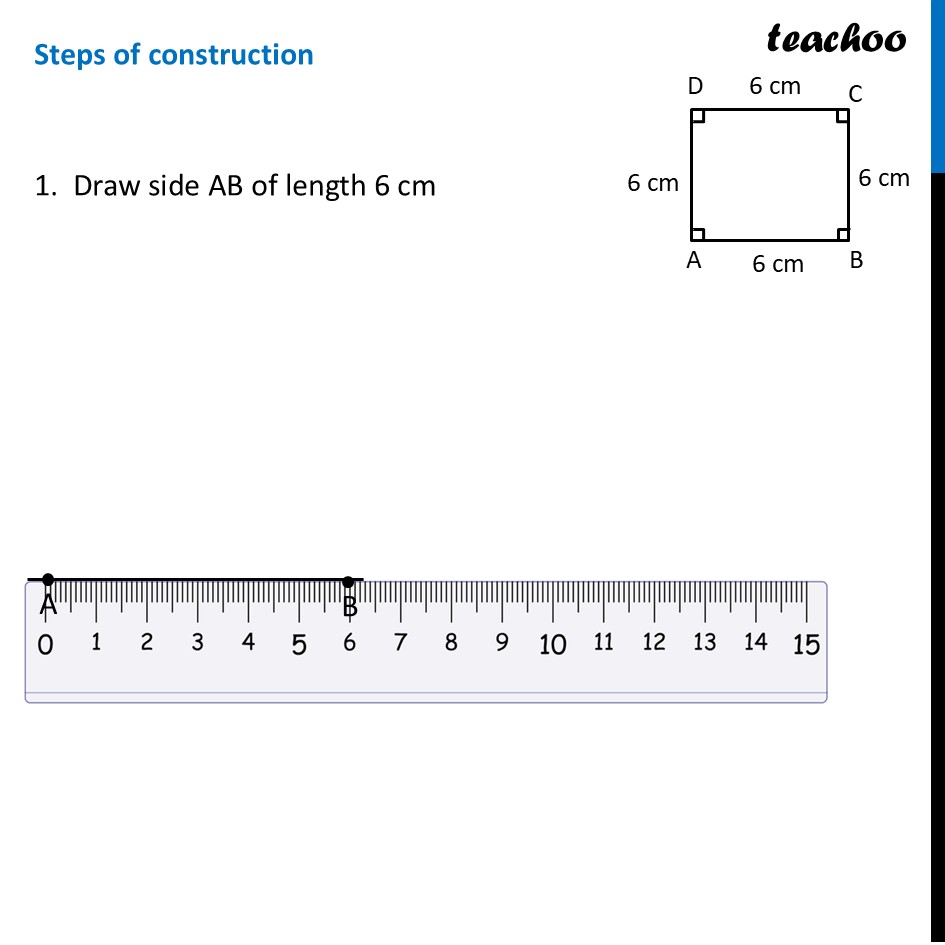

Constructing Squares In a square All sides are equal All angles are 90° Let’s take an example For square ABCD Since all sides are equal ∴ AB = BC = CD = AD = 6 cm Since all angles are 90° ∴ ∠ A = ∠ B = ∠ C = ∠ D = 90° Now, we have to make a square – we need 5 variables We draw the square using 3 sides, and 2 angles Steps of construction 1. Draw side AB of length 6 cm 2. Now, we draw 90° from point A 3. Now, we draw 90° from point B Taking 6 cm as radius, and A as center. Draw an arc. Mark the point where arc and line intersect as D 5. Taking 6 cm as radius, and B as center. Draw an arc. Mark the point where arc and line intersect as C 6. Join CD Label the sides ∴ ABCD is the required square
