Transcript

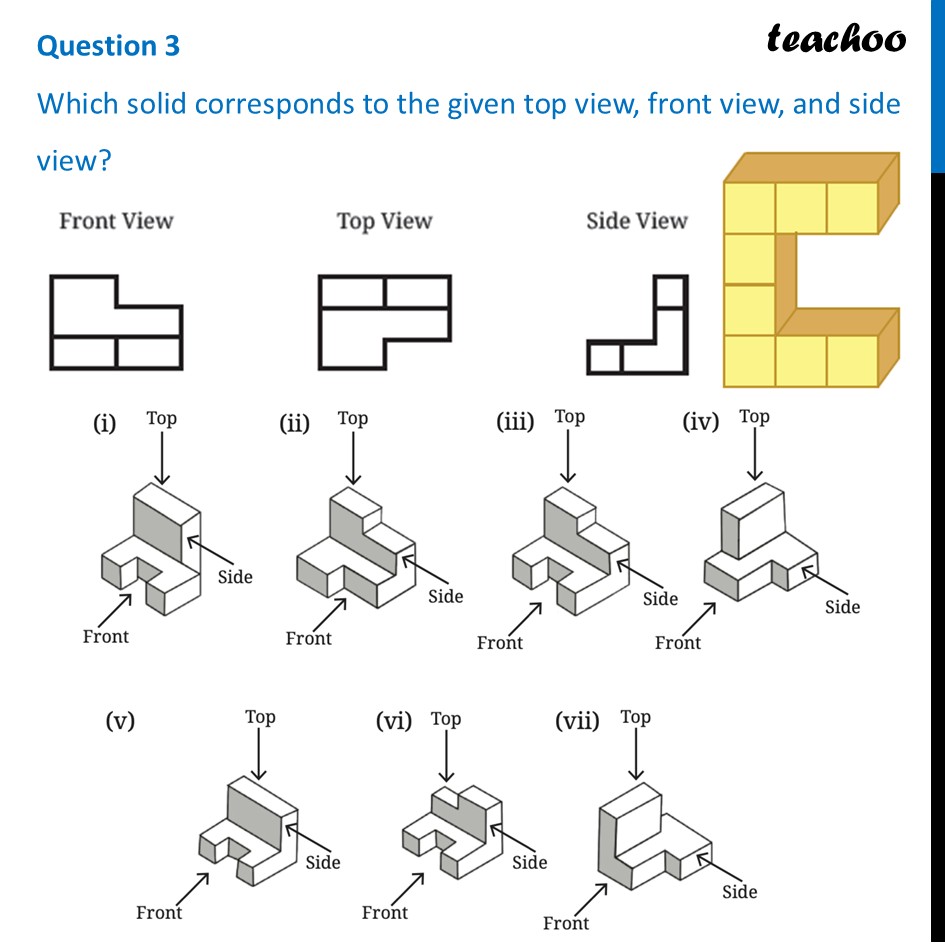

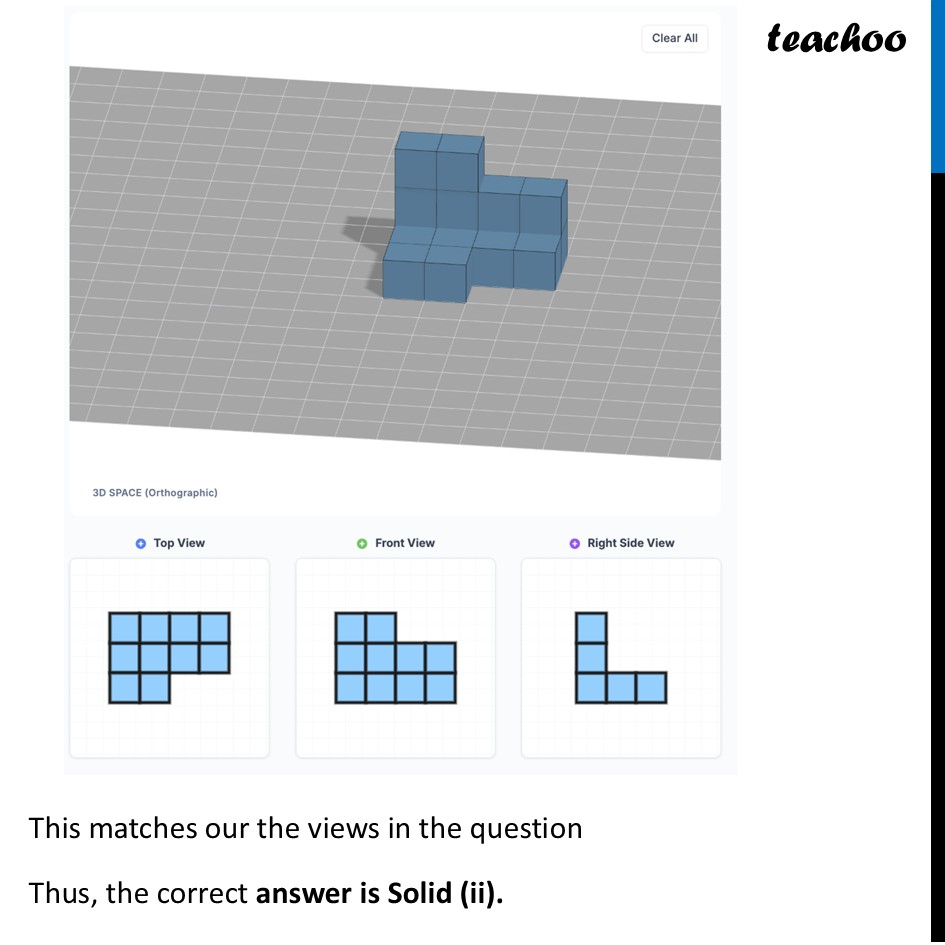

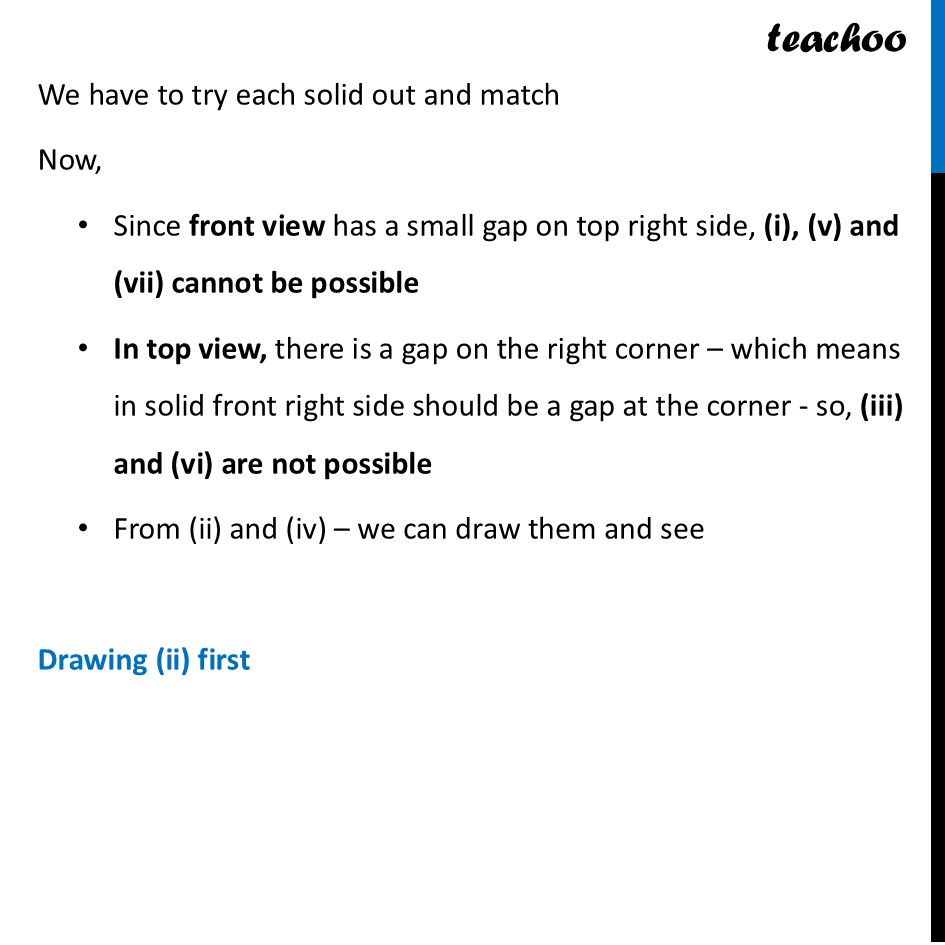

Question 3 Which solid corresponds to the given top view, front view, and side view? We have to try each solid out and match Now, Since front view has a small gap on top right side, (i), (v) and (vii) cannot be possible In top view, there is a gap on the right corner – which means in solid front right side should be a gap at the corner - so, (iii) and (vi) are not possible From (ii) and (iv) – we can draw them and see Drawing (ii) first This matches our the views in the question Thus, the correct answer is Solid (ii).
