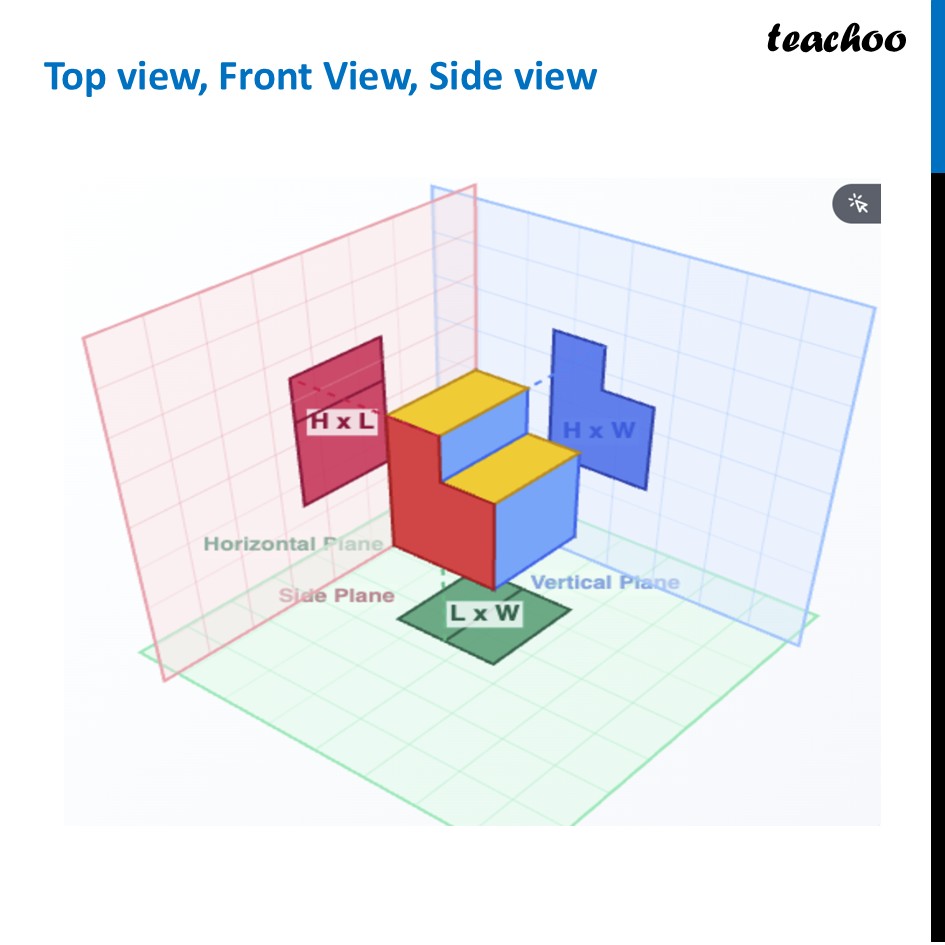

Top view, Front View, Side view
Last updated at February 26, 2026 by Teachoo
Class 8 (Ganita Prakash - 1, 2 & Old NCERT)
Chapter 4 Class 8 - Exploring Some Geometric Themes (Ganita Prakash II
- Fractals
- Sierpinski Carpet
- Sierpinski Gasket
- Figure it out - Page 72
- Koch Snowflake
- Fractals in Art
- Imagining Solids
- Solid Shapes
- Net of a Cube
- Net of other Figures
- Shortest Paths on a Cube
- Projections
-
Top view, Front View, Side view
- Shadows as Projections
- Figure it out - Page 95-97
- Isometric Projections
- Drawing on Isometric Grids
- Figure it out - Page 100, 101
Transcript

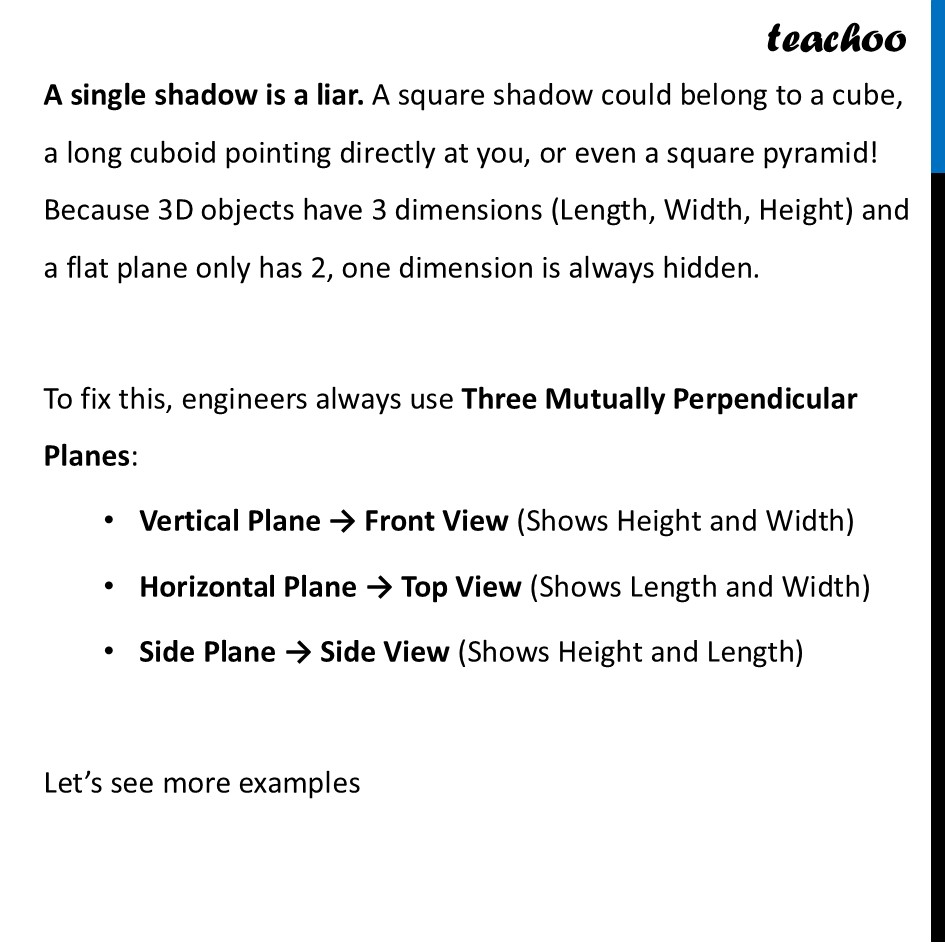

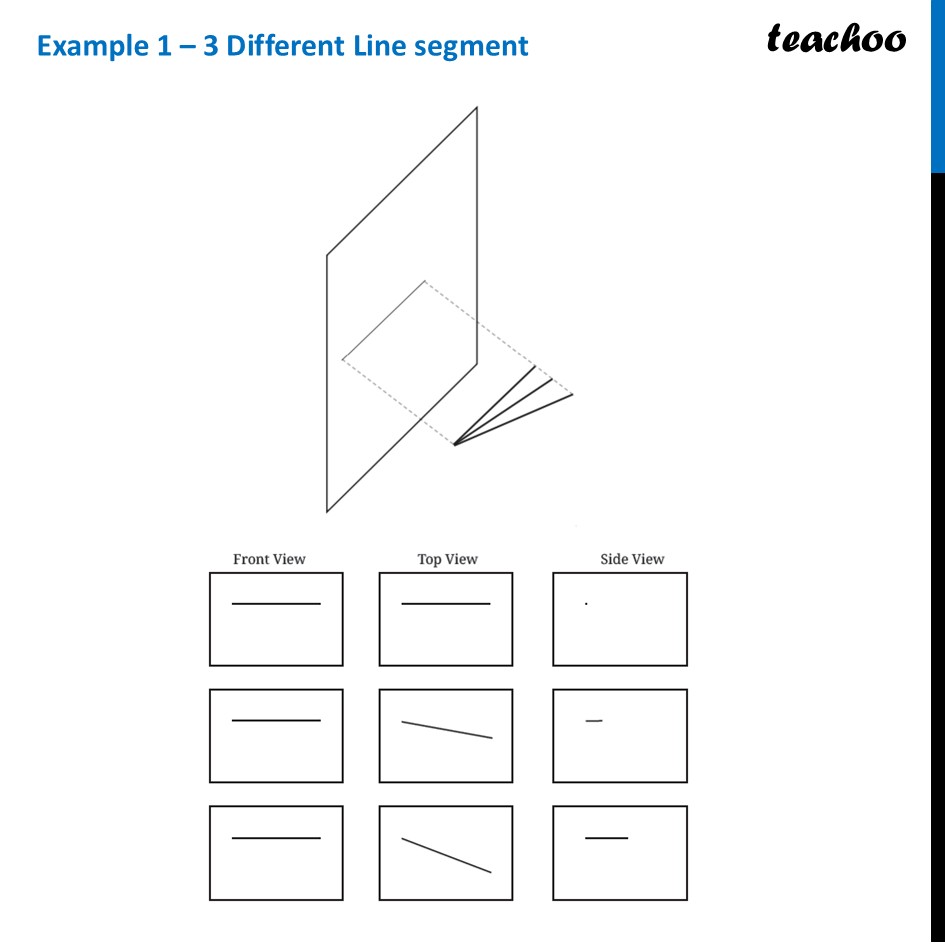

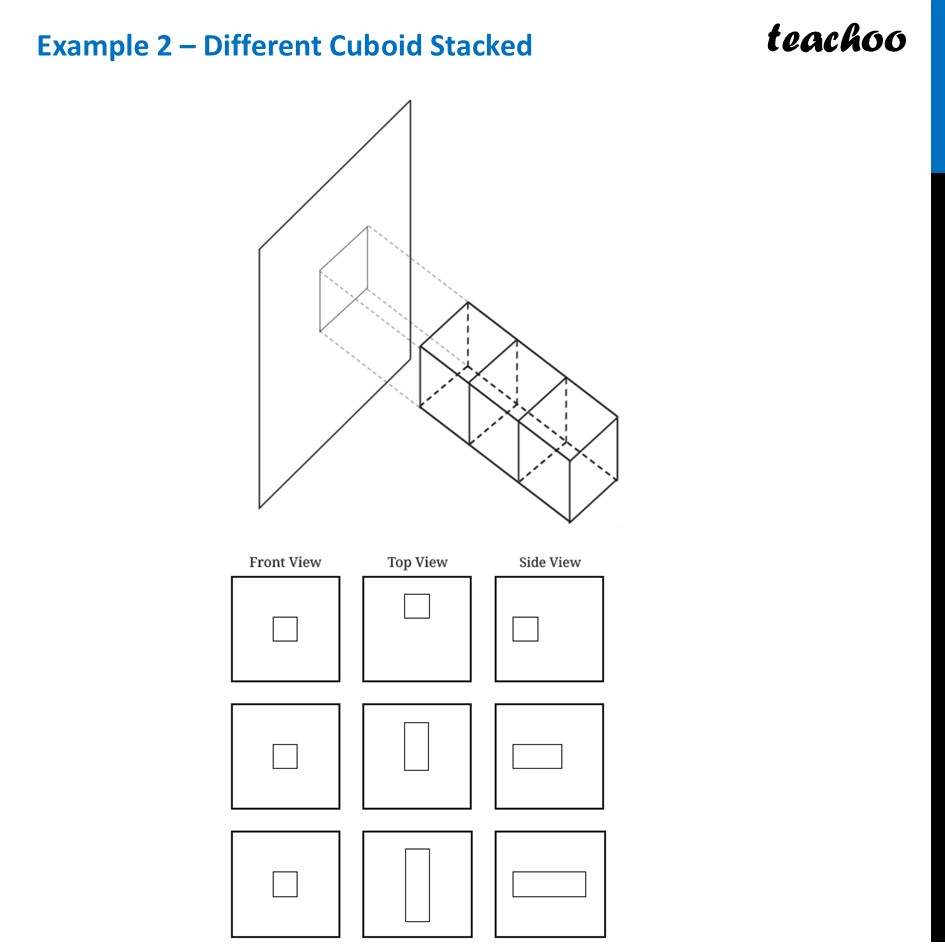

Top view, Front View, Side viewA single shadow is a liar. A square shadow could belong to a cube, a long cuboid pointing directly at you, or even a square pyramid! Because 3D objects have 3 dimensions (Length, Width, Height) and a flat plane only has 2, one dimension is always hidden. To fix this, engineers always use Three Mutually Perpendicular Planes: Vertical Plane → Front View (Shows Height and Width) Horizontal Plane → Top View (Shows Length and Width) Side Plane → Side View (Shows Height and Length) Let’s see more examples Example 1 – 3 Different Line segmentExample 2 – Different Cuboid Stacked
